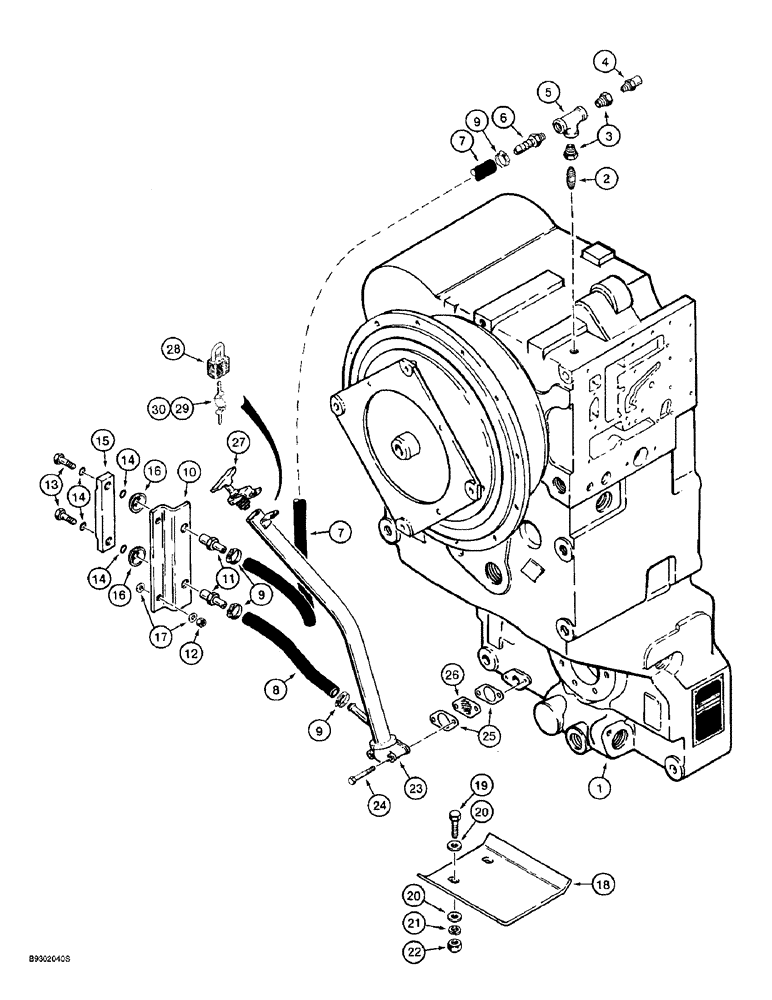

Запчасти Case 621B (6-06) - TRANSMISSION FILL TUBE MOUNTING AND SIGHT GAUGE (06) - POWER TRAIN

1

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on this figure and all items on Figures 6-08, 6-10 - 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

1

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

1

LC129926

CORE-TRANSMISSION

Return Number

1шт.

1

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on this figure, and all items on Figures 6-09 - 6-24 and 6-27A - 6-32 JEE0052701 to

1шт.

1

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

1

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

2

221-103

FITTING

NIPPLE straight, 1/8 PT x 1 inch

1шт.

3

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

Pipe

2шт.

4

N14704

BREATHER

Sight Gauge, Included With Transmission

1шт.

5

221-423

TEE,3/8" NPT

Pipe

1шт.

6

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

ADAPTER straight, 1/2 barb end x 3/8 inch PT

1шт.

7

L128586

RADIATOR HOSE,12.70 mm ID x 1145.00, SAE 100R6

1шт.

8

L60364

HOSE

305 mm (12 in) Long, Cut From L56190 Bulk Hose, see below

1шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

10

L125837

SUPPORT

BRACKET mounting, sight gauge

1шт.

11

L125836

FITTING

ADAPTER straight, special

2шт.

12

231-1446

NUT,3/8" - 16, Gr 5

1шт.

L116247

GAUGE

ASSEMBLY sight, Includes: Ref. 13 - 15

1шт.

13

N13213

BOLT

BOLT special, sight gauge, no longer available, order L116247 sight gauge assembly

2шт.

14

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge

4шт.

15

NSS

NOT SOLD SEPARAT

Gauge, Sight

1шт.

16

131-141

PUSH-ON NUT,.74", Push-on

2шт.

17

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

4шт.

18

L129940

GUARD ASSY.

transmission fill tube

1шт.

19

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

20

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

22

425-108

NUT,1/2" - 13, Gr 5

2шт.

23

L128523

TUBE,31.75 mm OD x 512, 114 mm L

TUBE fill, transmission

1шт.

24

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

Use with 242 Loctite

2шт.

25

S300507

GASKET

Fill Tube, Included With L129926 Transmission

2шт.

25

237302A1

GASKET

Fill Tube, Included With 241952A1 Transmission

1шт.

26

E135229

FILTER SCREEN

fill tube

1шт.

27

L126498

PLUG

CAP - fill tube

1шт.

28

D93753

PADLOCK

Includes: Ref. 29 and 30, if used

1шт.

29

D93751

SET OF 2 KEYS

For Yale Padlock Only, If Used

1шт.

30

R29555

KEY

For Master Padlock Only, If Used

1шт.

L56190

HOSE,0.50" ID x 90.00", SAE 30R2

Bulk, 25 (1/2) ID x 2286 mm (90 in) Long

1шт.
