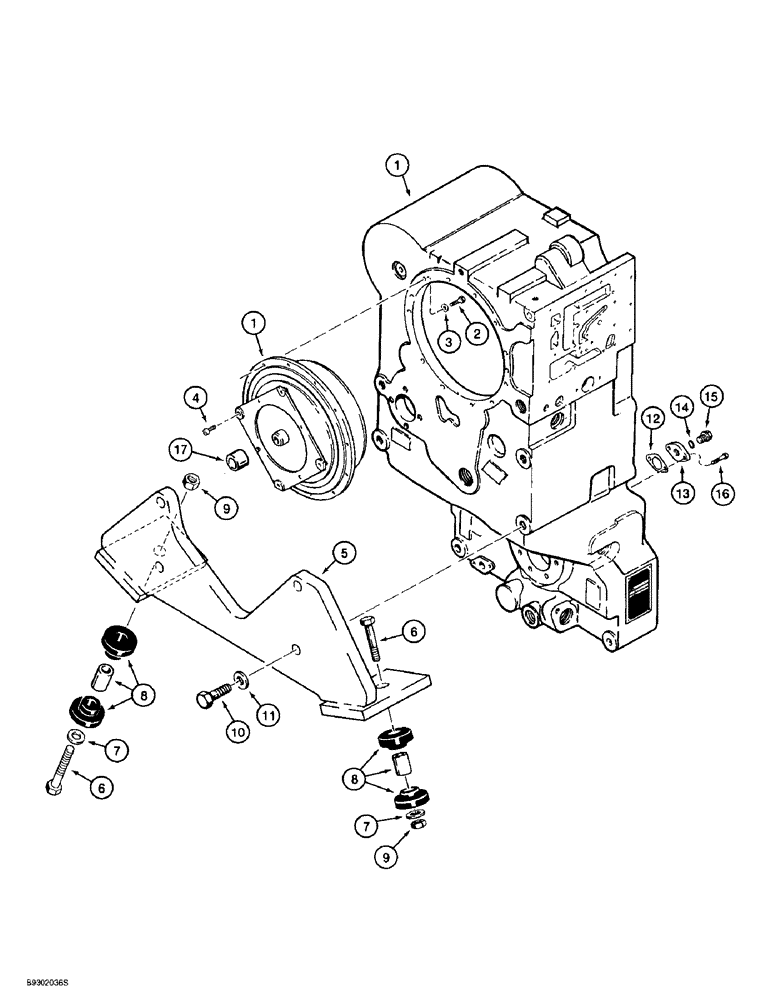

Запчасти Case 621B (6-04) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on this figure, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10 - 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

1

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

1

LC129926

CORE-TRANSMISSION

Return Number

1шт.

1

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on this figure, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09 - 6-24 and 6-27A - 6-32 JEE0052701 to

1шт.

1

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

1

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

4

L128789

HEX SOC SCREW,M10 x 1.5 x 50mm, Cl 8.8, Nylon Pellet

BOLT hex socket, special, flywheel to transmission mounting

4шт.

5

L128183

SUPPORT

BRACKET mounting, transmission

1шт.

6

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

2шт.

8

L111929

SHOCK ABSORBER

MOUNT three piece

2шт.

9

131-1400

LOCK NUT,Jam, 3/4"-16

2шт.

10

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

20-2.5 x 55 mm, class 10.9

4шт.

11

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Replaces L79179 washer

4шт.

12

S300507

GASKET

cover plate, included with L129926 transmission

1шт.

12

237302A1

GASKET

cover plate, included with 241952A1 transmission

1шт.

13

S300509

COVER

PLATE, included with transmission

1шт.

14

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

cover plate, included with transmission, replaces 717183R1 and E135040 O-rings

1шт.

15

E135080

PLUG

hex, special, 22 x 1.5 mm, cover plate, included with transmission

1шт.

16

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT hex, full threads, 8-1.25 x 16 mm, included with transmission

2шт.

17

L129822

SPACER

, Serial Range: converter-flywheel

1шт.
