(5-16) - FLOW CONTROL VALVE, L48888

Запчасти Case 621B (5-16) - FLOW CONTROL VALVE, L48888 (05) - STEERING

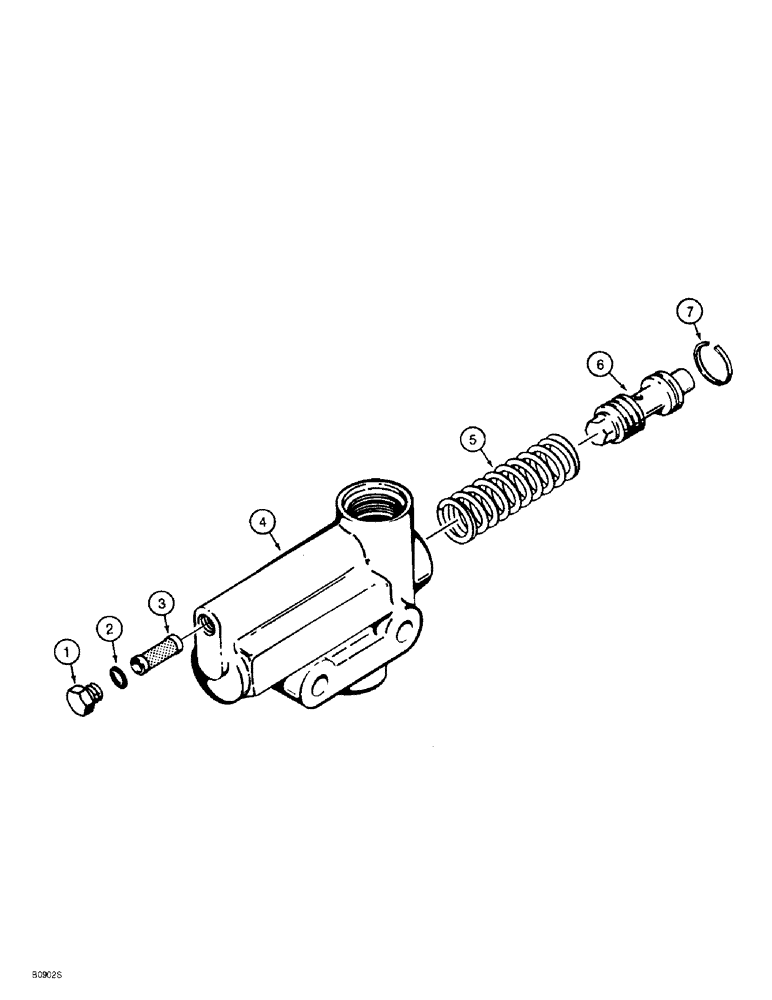

Схема запчастей Case 621B - (5-16) - FLOW CONTROL VALVE, L48888 (05) - STEERING
5
4
1
7
6
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L48888

FLOW DIVIDER

VALVE ASSEMBLY control, Includes: Ref. 1 - 7

1шт.

1

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 2

1шт.

2

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

3

L33959

FILTER, ENGINE OIL

FILTER, OIL SCREEN

1шт.

4

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

5

D46216

SPRING

spool

1шт.

6

50-1878T1

SPOOL

flow control valve

1шт.

7

D46214

CIRCLIP

RING retaining, spool

1шт.
