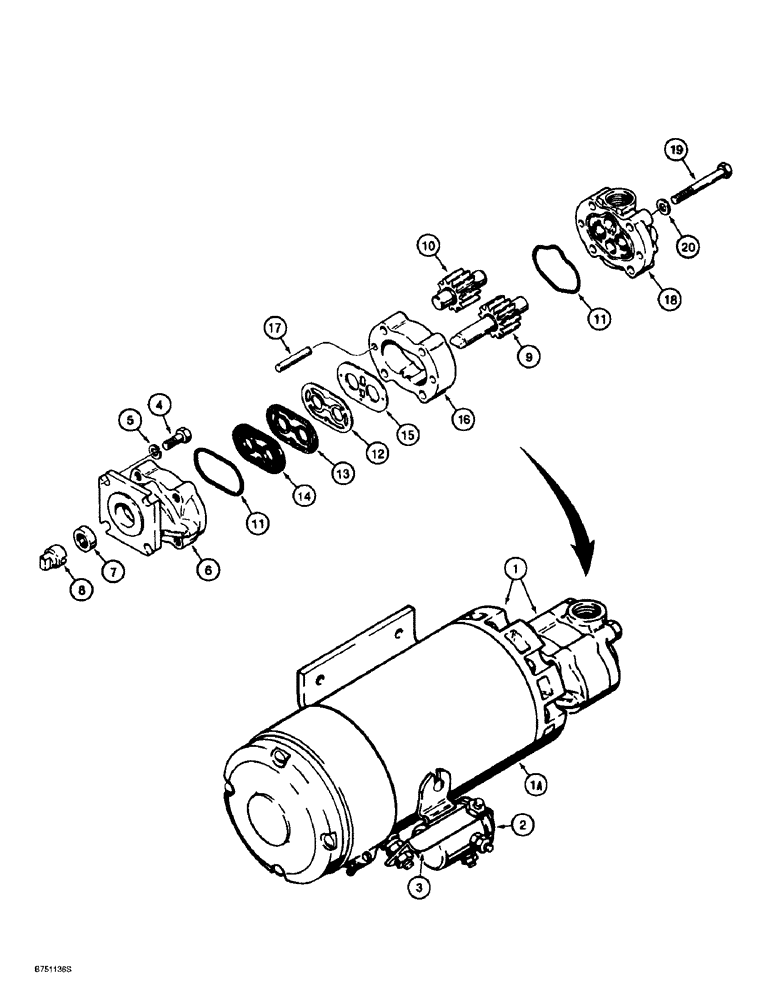

Запчасти Case 621B (5-14) - AUXILIARY STEERING PUMP AND MOTOR ASSEMBLY, L116118, 197540A1 (05) - STEERING

1

L116118

PUMP, HYDRAULIC

MOTOR ASSEMBLY auxiliary steering, Includes: Ref. 1A - 20, see Figure 5-12 for mounting, Serial Range: -JEE0053038

1шт.

1a

D71479

MOTOR, ELECTRIC

ASSEMBLY auxiliary steering, parts list Figure 4-36

1шт.

2

L115871

SOLENOID SWITCH

motor, component parts not serviced separately

1шт.

2a

173-293

SCREW,Sl Rnd Hd, #10 - 32 x 5/16", Brass

No. 10 NF x 5/16 inch, solenoid to motor, not shown

2шт.

2b

493-21020

LOCK WASHER,Int Tooth, #10

(3/16"), Solenoid to motor, Not shown

2шт.

3

D71481

CONNECTOR, ELEC

CONNECTOR STRAP solenoid ground, see Figure 4-36 for mounting hardware

1шт.

4

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

4шт.

5

492-11031

LOCK WASHER,5/16"

4шт.

D71482

PUMP

ASSEMBLY auxiliary steering, Includes: Ref. 6 - 20

1шт.

6

D71496

COVER

shaft end

1шт.

7

A52213

SEAL,12.7mm ID x 25.48mm OD x 6.35mm Thk

shaft

1шт.

8

D71498

COUPLING

pump drive

1шт.

9

D71497

PINION

GEAR drive, pump

1шт.

10

N9276

GEAR

driven, pump

1шт.

11

N9277

O-RING

cover

2шт.

12

N9281

LARGE PLATE

PLATE, LARGE SHIELD heat, pump

1шт.

13

N9282

GASKET

pump

1шт.

14

N9283

SEAL

V-type

1шт.

15

N9280

LARGE PLATE

PLATE, LARGE wear, pump

1шт.

16

N9278

HOUSING

gear

1шт.

17

F53109

DOWEL

dowel, pump

2шт.

18

N9275

COVER

port end

1шт.

19

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

BOLT, 5/16 NC x 2-1/2 inch, grade 8

4шт.

20

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

21

197540A1

PUMP, HYDRAULIC

MOTOR ASSEMBLY auxiliary steering, Includes: Ref. 22 - 26, not illlustrated JEE0053038 to

1шт.

22

258041A1

PUMP, HYDRAULIC

ASSEMBLY auxilary steering, not illustrated, purchase complete pump assembly, component parts not serviced separately

1шт.

23

258042A1

MOTOR, ELECTRIC

ASSEMBLY auxiliary steering, not illustrated, purchase complete motor assembly, component parts not serviced separately

1шт.

24

258043A1

SOLENOID SWITCH

motor, not illustrated, component parts not serviced separately

1шт.

25

258044A1

GASKET

pump and motor, not illustrated

1шт.

26

258045A1

SEAL KIT

seal, pump, not illustrated

1шт.
