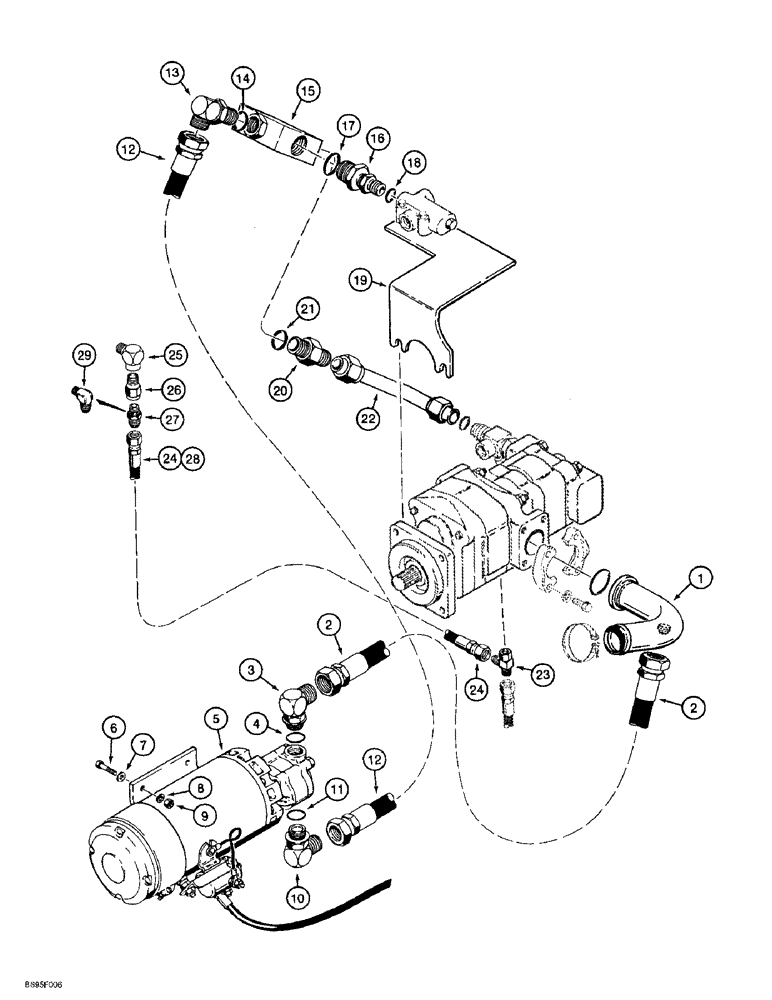

Запчасти Case 621B (5-12) - AUXILIARY STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

L125583

TUBE

suction, inlet, steering pump

1шт.

2

L128506

HOSE ASSY.

1105 mm (43-1/2 inch) long, inlet tube to axiliary steering pump

1шт.

3

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW, 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 4, use with L116118 pump and motor assembly, Serial Range: -JEE0053038

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 4, use with 197540A1 pump and motor assembly JEE0053038 to

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

L116118

PUMP, HYDRAULIC

MOTOR ASSEMBLY auxiliary steering, see Figure 5-14, Serial Range: -JEE0053038

1шт.

5

197540A1

PUMP, HYDRAULIC

MOTOR ASSEMBLY auxiliary steering, see Figure 5-14 JEE0053038 to

1шт.

6

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 11, use with L116118 pump and motor assembly, Serial Range: -JEE0053038

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 11, Used with 197540A1 pump and motor assembly JEE0053038 to

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

W11468

HOSE

737 mm (29 inch) long, auxiliary steering pump to shuttle valve

1шт.

13

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

L128557

VALVE

ASSEMBLY shuttle, internal components not serviced separately

1шт.

16

L60225

UNION

ADAPTER straight, special, Includes: Ref. 17 and 18, shuttle valve to flow control valve, see Figure 5-06 for flow control valve mounting and Figure 5-16 for assembly

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

L128511

SUPPORT

BRACKET mounting, flow control valve, use hydraulic steering pump mounting hardware, see Figure 8-04, Ref. 11 and 12

1шт.

20

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, Incl. Ref 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

L128504

TUBE,38.09 mm OD

flow control valve to hydraulic steering pump

1шт.

23

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

TEE, 7/16-20 inch flare branch x flare x swivel

1шт.

24

L129134

HOSE

1580 mm (62-1/4 inch) long, hydraulic steering pump to pressure switch, see Figure 4-34 for auxiliary steering pressure switch, Serial Range: -JEE0042310

1шт.

25

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

ELBOW, 90 degree, 7/16-20 flare x 1/4 inch PT, if used

1шт.

26

L129369

CONNECTOR, ELEC

CONNECTOR SNUBBER pressure reducing, if used

1шт.

27

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

straight, 7/16-20 flare x 1/4 inch PT, if used

1шт.

28

101501A1

HOSE ASSY.

1170 mm (46-1/16 inch) long, hydraulic steering pump to pressure switch, see Figure 4-35A for auxiliary steering pressure switch JEE0042310 to

1шт.

29

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

ELBOW, 90 degree, 7/16-20 flare x 1/4 inch PT, if used

1шт.

30

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Not shown

3шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

Not shown

5шт.
