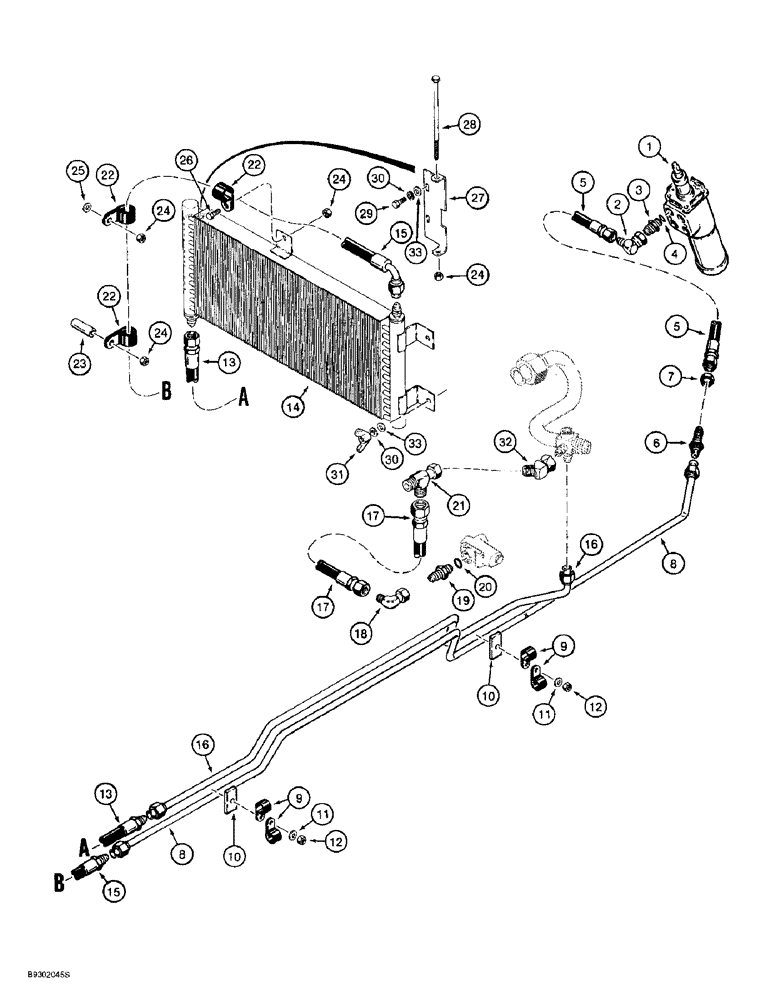

Запчасти Case 621B (5-10) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY control, steering, for correct assembly and components, see Figures 5-04, 5-05

1шт.

2

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ELBOW, 90 degree, 7/8-14 flare x 3/4-16 inch swivel

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

L124237

HOSE

600 mm (23-5/8 inch) long, return at control valve

1шт.

6

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER straight, 1/1/16-12 in flare x bulkhead flare

1шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

8

114396A1

PIPE ASSY.

TUBE return, hose at steering control valve to hose at oil cooler

1шт.

9

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, to rear frame

4шт.

10

L119350

SPACER

clamp

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

12

231-1406

LOCK NUT,3/8"-16, GB

2шт.

13

L128077

HOSE ASSY.

1000 mm (39-3/8 inch) long, return, at oil cooler

1шт.

14

L127883

OIL COOLER

Hydraulic

1шт.

15

L128078

HOSE ASSY.

2142 mm ( 84-5/16 inch) long, supply at oil cooler

1шт.

16

L128554

TUBE,19 mm OD

hose at oil cooler to tube to filter

1шт.

17

L127370

HOSE

550 mm (21-11/16 inch) long, filter tube to tube at flow control valve

1шт.

18

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

19

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter, Straight, O-Ring boss, Includes: Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

swivel, 7/8-14 inch flare branch x flare x adj straight thread

1шт.

22

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

P-type, 1-1/16 inch ID, hose, replaces R56681 clamp

3шт.

23

L59005

SPACER

lower clamp

1шт.

24

231-1446

NUT,3/8" - 16, Gr 5

4шт.

25

S95569

WASHER

1/2 inch

1шт.

26

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

27

L128083

SUPPORT

BRACKET hinge, oil cooler

1шт.

28

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

1шт.

29

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

31

L128214

THUMB SCREW

SCREW thumb, 3/8 NC x 1 inch

2шт.

32

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

Not shown

5шт.

35

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Not shown

3шт.
