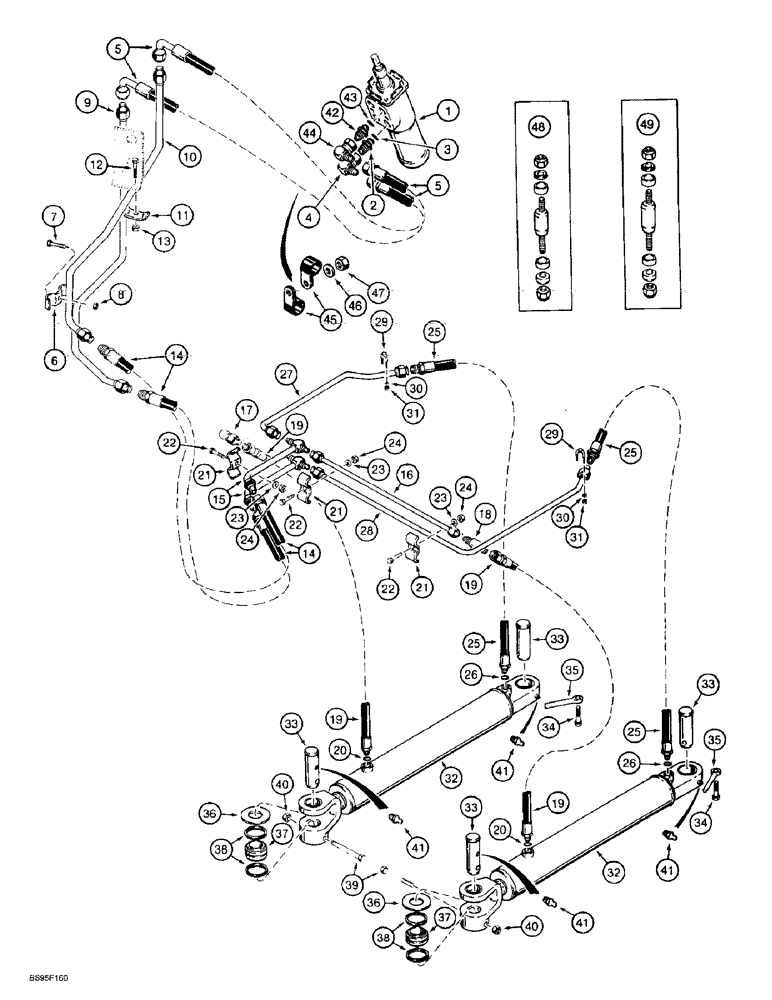

Запчасти Case 621B (5-08) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY control, steering, for correct assembly and components, see Figures 5-04 and 5-05

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

5

112371A1

HOSE ASSY.

845 mm (33-1/4 inch) long, control, Serial Range: valve-tube

2шт.

6

S45067

CLAMP

tube

1шт.

7

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

8

231-1406

LOCK NUT,3/8"-16, GB

1шт.

9

112372A1

TUBE

TUBE left-hand, from hose at control valve lower port

1шт.

10

112375A1

TUBE

TUBE right-hand, from hose at control valve upper port

1шт.

11

A13622

PLATE, LOCKING

CLAMP tube

1шт.

12

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

13

231-1406

LOCK NUT,3/8"-16, GB

1шт.

14

L124234

HOSE

650 mm (25-5/8 inch) long, Serial Range: tube-tube

2шт.

15

L118907

PIPE ASSY.,15.87 mm OD

TUBE steering, with tee

2шт.

16

L127794

PIPE,12.7 mm OD x 520 mm L

TUBE steering, crossover

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

18

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

19

L127792

HOSE

586 mm (23 inch) long, Includes: Ref. 20, tube to cylinder, rod end

2шт.

21

R15257

CLAMP

tube

3шт.

22

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

3шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

24

231-1406

LOCK NUT,3/8"-16, GB

3шт.

25

L124236

HOSE

700 mm (27-9/16 inch) long, Includes: Ref. 26, tube to cylinder, closed end

2шт.

27

L118924

PIPE,12.7 mm OD

TUBE steering, upper left-hand, to closed end of cylinder

1шт.

28

L128335

PIPE,12.7 mm OD x 552, 496 mm L

TUBE steering, lower right-hand, to closed end of cylinder

1шт.

29

L78949

U-BOLT

U-Bolt, 5/16 inch NC

2шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

31

231-1445

NUT,5/16"-18, GB

4шт.

32

1976862C1

STEERING CYLINDER

ASSEMBLY, 44 (1-3/4) ID x 435 mm (17-1/8 inch) stroke, parts list Figure 5-18

2шт.

84311413R

REMAN-HYD CYLINDER

621B (3/93-12/98), Reman for New P/N 1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

33

L126418

PIN,38mm OD x 111mm L

mounting, cylinder, if non-rotating pin mating surface of cylinder becomes worn, order Ref. 48 or 49 shown below

4шт.

34

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

35

R17756

ROD,12.7mm OD x 109.54mm L

PIN retaining, mounting pin

2шт.

36

S109722

WASHER,38.1mm ID x 76.2mm OD x 3.17mm Thk

1-1/2 x 3 x 1/8 inch, nylon, thrust

2шт.

37

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

self-aligning

2шт.

38

102-23218

SNAP RING,#218, 2.321", Int, Spiral

No. 218, bushing

4шт.

39

326-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

2шт.

40

131-1402

THIN NUT,1/2"-13, GB, Thin

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Two replace existing plugs on closed end of cylinders

4шт.

42

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ELBOW, 90 degree, 7/8-14 flare x 3/4-16 inch swivel

1шт.

45

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Mounts to cab floor channel

2шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

47

231-1406

LOCK NUT,3/8"-16, GB

1шт.

48

187151A1

PIN,34.92mm OD x 144mm L

KIT expander, if used, replaces Ref. 33 on closed end of cylinder

1шт.

49

193946A1

PIN

KIT expander, if used, replaces Ref. 33 on rod end of cylinder

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
