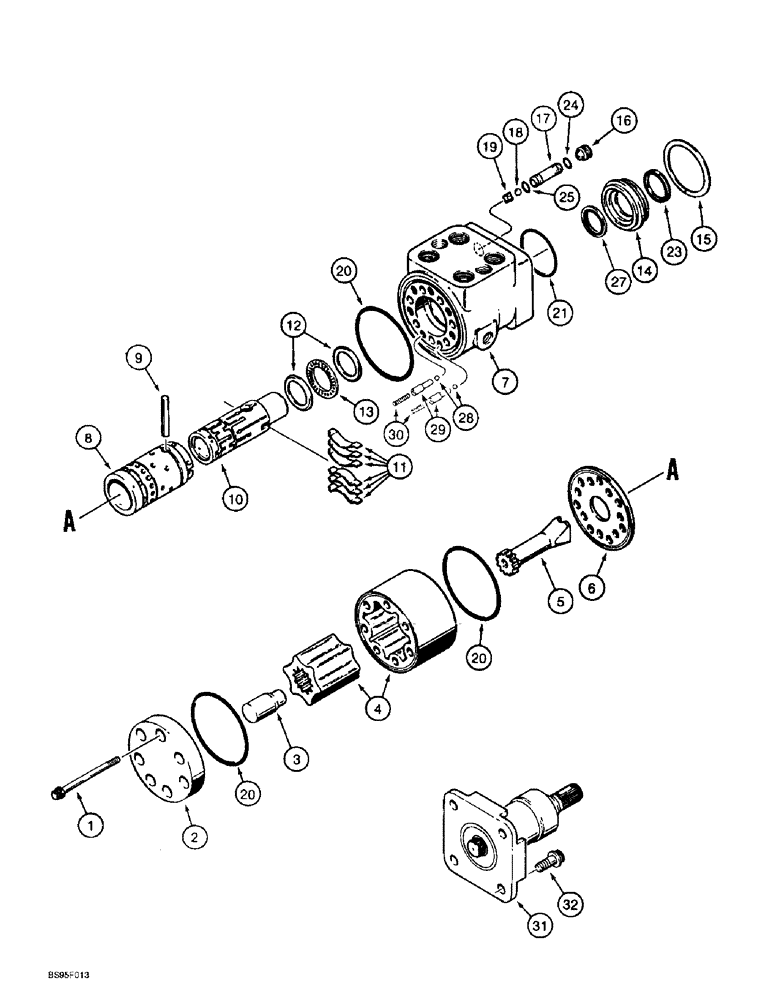

Запчасти Case 621B (5-05) - STEERING CONTROL VALVE ASSEMBLY, 135604A1 (05) - STEERING

135604A1

VALVE

ASSEMBLY steering control, with internal relief, Includes: Ref. 1 - 32 and column, stamped 261-1192-082 on name plate

1шт.

177285A1

VALVE, CONTROL

ASSEMBLY steering, with internal relief, does not include column, Includes: Ref. 1 - 32

1шт.

1

177810A1

SCREW

BOLT 12 point, special

7шт.

2

135867A1

CAP

end, without O-ring groove

1шт.

3

S300936

SPACER

drive shaft

1шт.

4

177811A1

PINION

GEROTOR set, valve

1шт.

5

L30878

DRIVE SHAFT

gerotor, valve

1шт.

6

135869A1

PLATE

spacer, with O-ring groove

1шт.

7

NSS

NOT SOLD SEPARAT

Body, control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

Sleeve, control assembly

1шт.

9

135874A1

PIN

sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

Spool, control assembly

1шт.

11

N14250

KIT

centering spring, set of 6, spool

1шт.

12

D82804

RACE

thrust, bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Roller

1шт.

14

N13312

CYLINDER END CAP

BUSHING spool

1шт.

15

S110169

WASHER

RING retaining, bushing

1шт.

16

D82805

SET SCREW

Screw, set, special

1шт.

17

D82806

VALVE SEAT

ball

1шт.

18

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

1шт.

19

L35368

RETAINER

check ball

1шт.

1343658C3

SEAL KIT

KIT low torque, Includes: Ref. 20 - 27

1шт.

20

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

Cap and plate

3шт.

21

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

23

697494R91

OIL SEAL

1 inch ID, bushing

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Seat, outer

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Seat, inner

1шт.

27

121179A1

SEAL

teflon, spool, replaces items 22, 26, and 27 shown on page 5-5B

1шт.

28

211-1006

BALL,3/16" Dia

2шт.

29

136494A1

PLUG

RETAINER spring, anticavitation

2шт.

30

N14763

SPRING

anticavitation

2шт.

31

S301818

CAP

COLUMN ASSEMBLY - lower, steering, Includes: Ref. 32, individual components are not serviced separately

1шт.

32

380-2612

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Full Thd

12 point flange, chemical locking, Replaces 27588R1 bolt

2шт.
