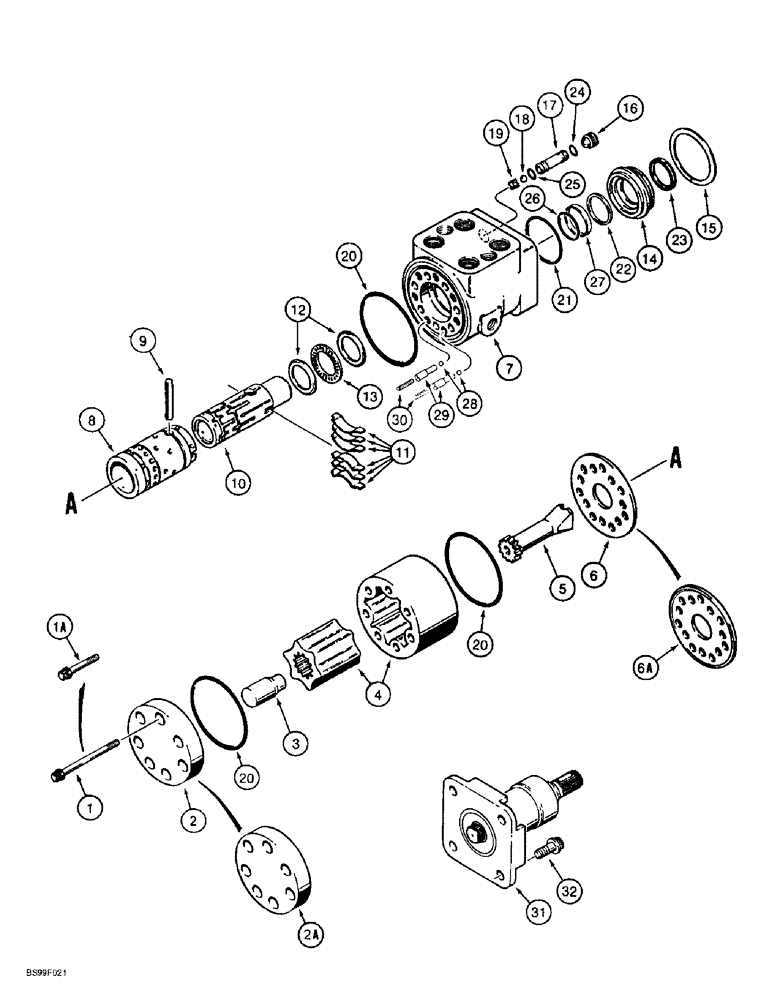

Запчасти Case 621B (5-04) - STEERING CONTROL VALVE ASSEMBLY, L129607 (05) - STEERING

L129607

VALVE

ASSEMBLY steering control, With Internal Relief, Includes: Ref. 1 - 32 and column, stamped 261-1192-081 on name plate

1шт.

S301969

VALVE

ASSEMBLY steering control, With Internal Relief, Includes: Ref. 1 - 32, No Longer Available, order 177285A1 on Figure 5-05

1шт.

1

D51217

BOLT,5/16" x 3 1/2"

12 Point, 5/16 NF x 3-1/2 in, Used With Ref 2 and 6, If Used

7шт.

1a

135866A1

SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8

BOLT 12 Point Flange, 5/16 NF x 1-3/4 in, Grade 8, Used with Ref 2A and 6A, If Used

7шт.

Part of End Cap and Spacer Plate Repair Kit P/N 136493 A1

1шт.

2

D82809

COVER

CAP end, With O-Ring Groove, Uses Ref. 20, Upon Depletion of D82809 Stock, Order 136493A1 Repair Kit, see below

1шт.

2a

135867A1

CAP

end, Without O-ring Groove, Uses 238-6040, Ref 20, Shown on Figure 05-05C, in The Gerotor O-Ring Groove

1шт.

Part of End Cap and Spacer Plate Repair Kit P/N 136493 A1

1шт.

100066A1

ROTOR

KIT Set and Spacer, Includes: Ref. 3 and 4

1шт.

3

103507A1

SPACER

drive shaft

1шт.

4

D83219

ROTOR

Set, Valve, No Longer Available, Order 100066A1 Kit

1шт.

5

L30878

DRIVE SHAFT

gerotor

1шт.

6

S113037

PLATE

Spacer, Without O-ring Groove, Uses Ref 20 in The Gerotor O-ring Groove, Upon Depletion of S113037 Stock, Order 136493A1 Repair Kit, see below

1шт.

6a

135869A1

PLATE

Spacer, With O-ring Groove (Install With Groove Facing Gerotor), Uses O-ring 238-6040, Ref 20, Figure 5-05C

1шт.

Part of End Cap and Spacer Plate Repair Kit P/N 136493 A1

1шт.

S301971

TESTER

CONTROL ASSEMBLY valve, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

Body, control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

Sleeve, control assembly

1шт.

9

L30888

PIN

roll

1шт.

10

NSS

NOT SOLD SEPARAT

Spool, control assembly

1шт.

11

N14250

KIT

Centering Spring, Set of 6

1шт.

12

D82804

RACE

Thrust, bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Roller

1шт.

14

N13312

CYLINDER END CAP

BUSHING spool

1шт.

15

S110169

WASHER

RING retaining, bushing

1шт.

16

D82805

SET SCREW

SCREW - set, special

1шт.

17

D82806

VALVE SEAT

ball

1шт.

18

211-1010

BALL,5/16" OD

5/16; 24,CRS

3шт.

19

L35368

RETAINER

check ball

1шт.

136493A1

COVER

KIT repair, end cap and spacer plate, Includes: Ref. 1A, 2A, 6A, use with 238-6040 O-rings Ref. 20 shown on Figure 5-05C

1шт.

When the end cap repair kit is installed, "flip" outer gerotor ring, Ref. 4 and reinstall it so that the O-ring groove faces the end cap. Ref. 29, (2) 136494A1 plugs should be replaced at the same time.

1шт.

S301023

SEAL KIT

KIT, Includes: Ref. 20 - 27, No Longer Availabe, Order 1343658C3 shown on Figure 5-05C

1шт.

20

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

Used with D82809 cap and S113037 plate (Replaces N6392 O-Ring)

3шт.

21

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

22

50-2703T1

BACK-UP RING

RING backup, seal

1шт.

23

697494R91

OIL SEAL

1 inch ID

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

25

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in

1шт.

26

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

27

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

teflon, inner

1шт.

28

211-1006

BALL,3/16" Dia

2шт.

29

136494A1

PLUG

RETAINER spring, anticavitation, replaces N14764 plug

2шт.

30

N14763

SPRING

anticavitation

2шт.

31

S301818

CAP

COLUMN ASSEMBLY Lower, Steering, Includes: Ref. 32, Individual Components Are Not Serviced Separately

1шт.

32

380-2612

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Full Thd

12 point flange, chemical locking, Replaces 27588R1 bolt

2шт.
