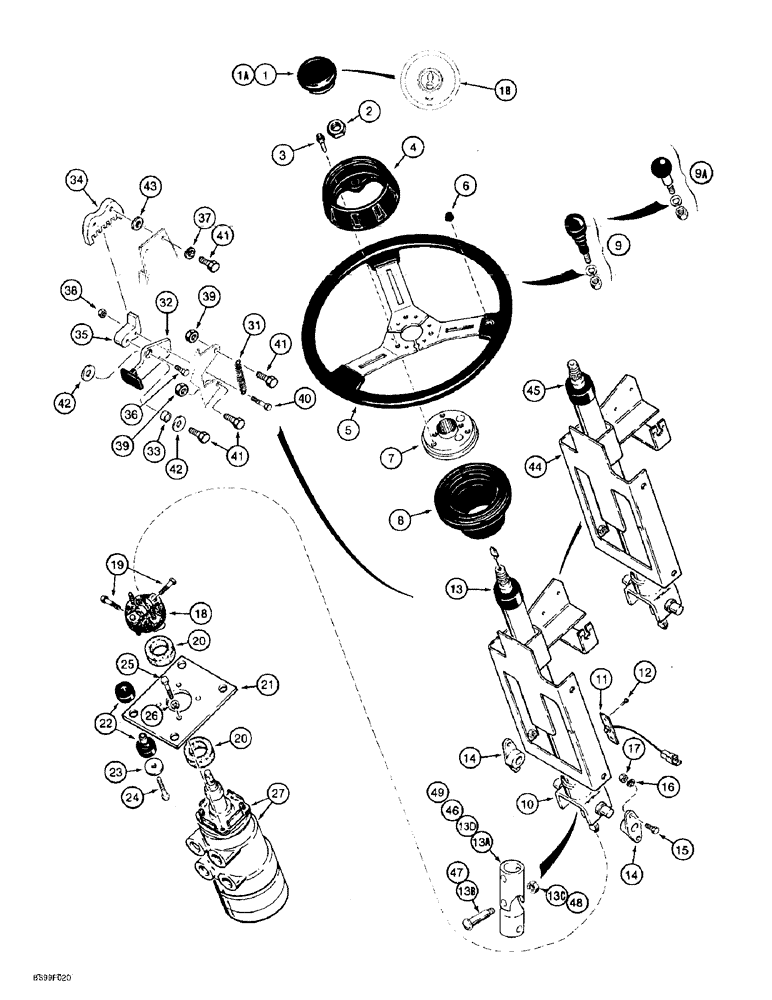

Запчасти Case 621B (5-02) - STEERING WHEEL AND COLUMN, INCLUDES TILT LATCH (05) - STEERING

1

1339877C2

BUTTON

Horn, Includes: Ref. 1B, Used With 1344401C4 Steering Column shown below, Serial Range: -JEE0042075

1шт.

1a

195277A1

PLUG

CAP ASSEMBLY center, Steering Wheel, Includes: Ref. 1B, Used With 195273A1 Steering Column, see below JEE0042075 to

1шт.

1b

A180055

CAP ASSY.

INSERT, Case Globe and Eagle

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

lock, steering wheel retaining

1шт.

L128095

WHEEL (STEERING)

ASSEMBLY, Includes: Ref. 3 - 8

1шт.

3

S301434

SCREW

special

3шт.

4

S301399

CAP

steering wheel

1шт.

5

D147465

STEERING WHEEL

Not Serviced Separately, for service order D148204 steering wheel shown below or L128095 steering wheel assy.

1шт.

6

S301435

PLUG

steering wheel, remove to use spinner knob

1шт.

7

S301401

HUB

Steering Wheel, Not Serviced Separately, Order L128095 steering wheel assy.

1шт.

8

S301400

BOOT

steering wheel

1шт.

9

L127996

KNOB

Spinner, No Longer Available, Order Ref. 9A P/N 97400C1, If Used

1шт.

9a

97400C1

HANDLE

KNOB spinner, If Used

1шт.

1344401C4

STEERING COLUMN

ASSEMBLY, with Brush and Horn Wires, Includes: Ref. 10 - 13D, If Used, Serial Range: -JEE0042075

1шт.

10

NSS

NOT SOLD SEPARAT

Column, steering

1шт.

11

1987236C1

BRUSH ASSY.

Horn, No Longer Available, Order 292150A1 Kit, shown below

1шт.

12

261-5454

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

self-tapping, pan Phillips, No. 10 NC x 1/4 inch

2шт.

13

A49647

CAP

COVER column, top

1шт.

13a

194040A1

UNIVERSAL JOINT

ASSEMBLY steering column, Includes: Ref. 13B and 13C, No Longer Availabe, Order A63689 Joint Assy

1шт.

13b

L128176

STEP BOLT

shoulder, special

1шт.

Ref. 13B and 13C are also used for service to replace the rivet in the steering column U-joint used on some models

1шт.

13c

L128177

LOCK NUT

self-locking, special

1шт.

Ref. 13B and 13C are also used for service to replace the rivet in the steering column U-joint used on some models

1шт.

13d

A63689

JOINT

ASSEMBLY universal, steering column

1шт.

D148204

WHEEL (STEERING)

also includes Spacer Ring, Steering wheel Hub, (3) screws, and (3) washers, 16 inch, 3 Spoke

1шт.

292150A1

BRACKET

KIT - brush

1шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BEARING

2шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

L100096

ISOLATOR

isolator

1шт.

19

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

floor plate and steering control valve

2шт.

21

1344479C1

LARGE PLATE

PLATE, LARGE floor, steering alignment

1шт.

22

A141515

ISOLATOR

Two-Piece

4шт.

23

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

flat, 7/16 x 1-1/4 x 1/16 inch

4шт.

24

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

25

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

L129607

VALVE

ASSEMBLY steering control, Stamped 261-1192-081 on Name Plate, See Figure 05-04, if used

1шт.

27

135604A1

VALVE

ASSEMBLY steering control, Stamped 261-1192-082 on Name Plate, See Figure 05-05, if used

1шт.

31

A163012

SPRING

tilt latch

1шт.

32

1990517C1

LEVER

tilt latch

1шт.

33

1990519C1

SPACER

BUSHING lever

1шт.

34

1969906C3

LATCH ASSY.

RACK tilt

1шт.

35

1969903C4

LATCH ASSY.

tooth

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

39

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

40

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

BOLT hex, 1/4 NC x 1-1/2 inch, grade 8

1шт.

41

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

5шт.

42

496-81024

WASHER,0.41" ID x 1.25" OD x 0.07" Thk

flat, 13/32 x 1-1/4 x 1/16 inch, hardened

2шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

195273A1

STEERING COLUMN

ASSEMBLY, without Brush and Horn Wires, Includes: Ref. 44 - 49 JEE0042075 to

1шт.

44

NSS

NOT SOLD SEPARAT

COLUMN steering, order 195273A1

1шт.

45

A49647

CAP

COVER column

1шт.

46

194040A1

UNIVERSAL JOINT

ASSEMBLY steering column, Includes: Ref. 47 and 48, No Longer Availabe, Order A63689 Joint Assy

1шт.

47

L128176

STEP BOLT

shoulder, special

1шт.

Ref. 47 and 48 are also used for service to replace the rivet in the steering column U-joint used on some models.

1шт.

48

L128177

LOCK NUT

self-locking, special

1шт.

49

A63689

JOINT

ASSEMBLY universal, steering column

1шт.
