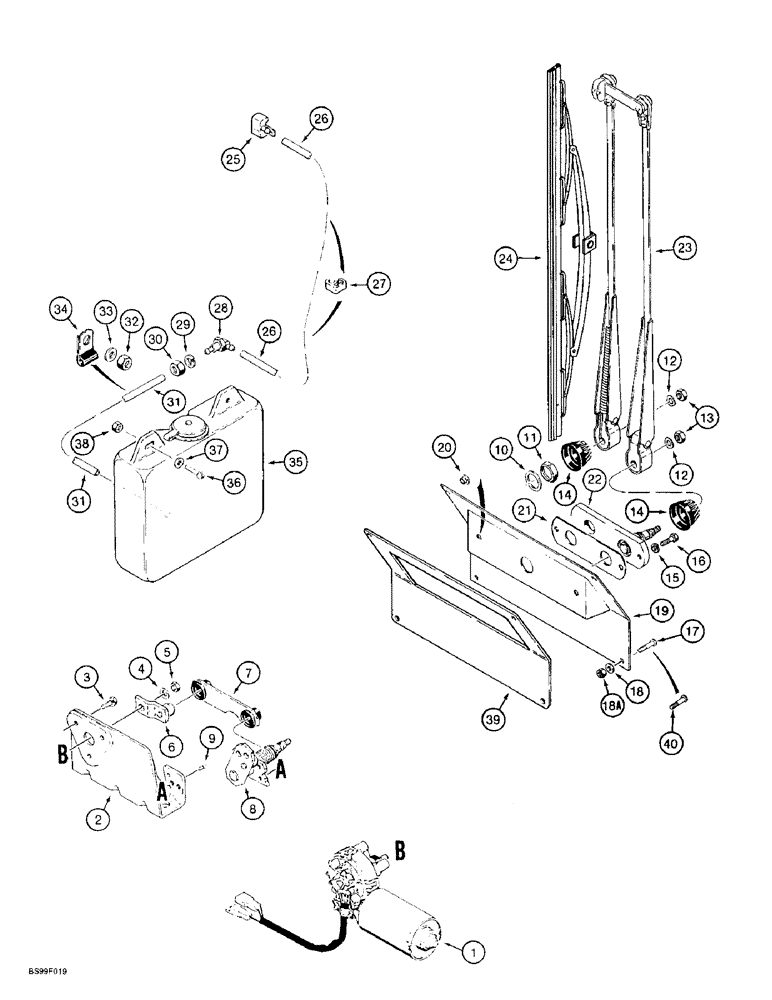

Запчасти Case 621B (4-54) - FRONT WIPER (04) - ELECTRICAL SYSTEMS

A187534

WIPER MOTOR

MOTOR, WIPER ASSEMBLY with Bracket, 24 Volt, Front Windshield Wiper, Includes: Ref. 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR, WIPER windshield, 24 volt

1шт.

2

N8359

SUPPORT

BRACKET windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

with washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

Belleville

1шт.

5

L112090

NUT

hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

A187835

ROD

LINK wiper

1шт.

8

A187836

CROSS SHAFT

pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

L112088

WASHER

special, large, shaft

1шт.

11

L112087

NUT

special, large, shaft

1шт.

12

L112089

WASHER

wave, special, shaft end

2шт.

13

L112090

NUT

hex, special, 8 mm, shaft end

2шт.

14

L112081

CAP

pivot shaft end

2шт.

15

492-11025

LOCK WASHER,1/4"

1шт.

16

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

BOLT, 1/4 NF x 3/4 inch

1шт.

17

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, specail, 1/4 NC x 3/4 inch, if used

4шт.

18

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), If used

4шт.

18a

425-104

NUT,1/4"-20, Cl 5

If used

4шт.

19

1339586C1

COVER

mounting, front wiper, tan

1шт.

19

196356A1

SUPPORT

COVER mounting, front wiper, gray

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

button, 5/16 inch, black, wiper cover, If Used

1шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

Wiper cover, If used

1шт.

21

A186219

GASKET,1.5mm Thk

pivot

1шт.

22

D128021

SHAFT

PIVOT

1шт.

23

A187964

WIPER ARM

ARM, WIPER 680 mm (26-13/16 in) Long

1шт.

24

A187574

WIPER BLADE

700 mm (27-9/16 in) Long

1шт.

Refill blade 234594A1 is available. The refill does not have a metal strip. You need to use the metal strip from the old blade.

1шт.

24a

234594A1

WIPER BLADE

BLADE, WIPER Rubber, not shown

1шт.

Refill blade 234594A1 is available. The refill does not have a metal strip. You need to use the metal strip from the old blade.

1шт.

25

1970002C1

JET

NOZZLE wiper fluid

1шт.

26

1964827C1

PIPE

Hose, 810 mm (32 in) Long, Cut From 1968141CX bulk hose, see below

1шт.

27

1970003C1

CLIP,ELECTRICAL

to wiper arm

2шт.

28

1968053C1

ELBOW

ELBOW, 90 degree, special

1шт.

29

N8361

SPRING WASHER

Belleville

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

1964828C1

PIPE

Hose, 1145 mm (45-1/8 in) Cut From : 1968141CX bulk hose, see below

1шт.

32

425-106

NUT,3/8"-16, Cl 5

3шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

3шт.

35

A187527

RESERVOIR ASSY.

windshield wiper fluid, with pump, component parts not serviced separately

1шт.

36

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

2шт.

37

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

2шт.

38

425-104

NUT,1/4"-20, Cl 5

2шт.

39

1994815C1

WIPER SEAL

one piece, adhesive back

1шт.

40

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

4шт.

1968141CX

HOSE

bulk, 15,240 mm (600 inch) long

1шт.
