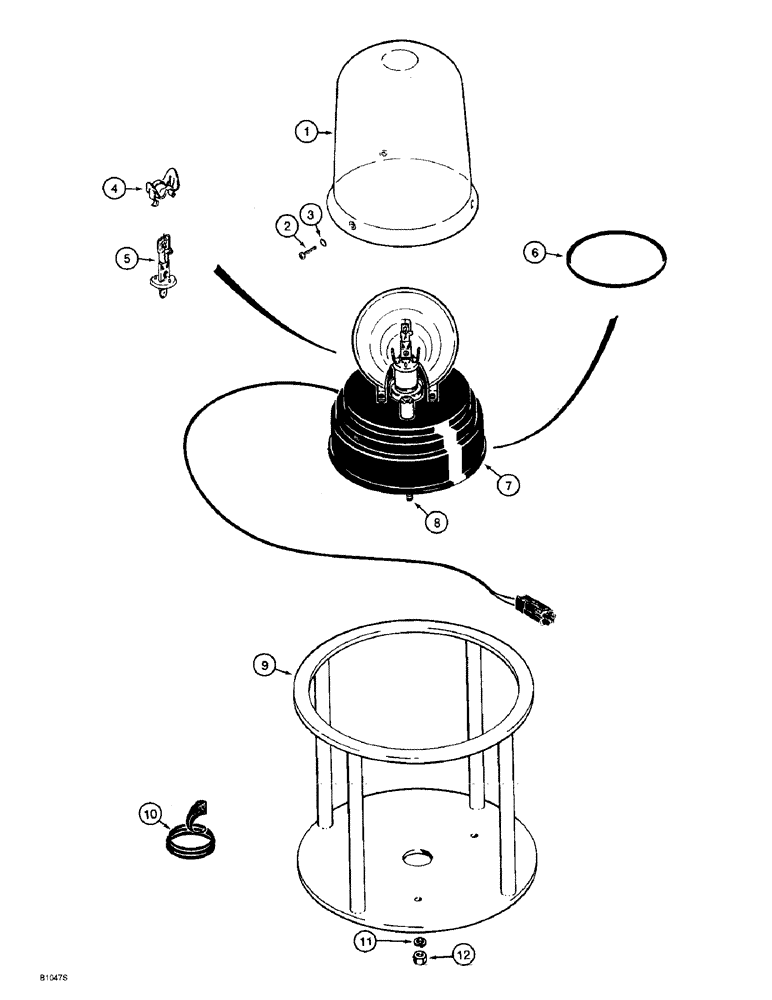

Запчасти Case 621B (4-52) - ROTATING BEACON ASSEMBLY AND MOUNTING (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

BEACON Rotating, Includes: Ref. 1 - 8

1шт.

1

A187542

LENS

beacon, amber, if used

1шт.

1

127158A1

LENS

beacon, blue, if used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Round head, Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP bulb

1шт.

5

P40533

LAMP

BULB halogen

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

7

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY with Drive Motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

L124809

CAGE

Beacon, Tan, No Longer Available, Order 193897A1 Cage

1шт.

9

193897A1

CAGE

beacon, gray

1шт.

10

L109042

GASKET

TRIM edge, 350 mm (13-13/16 in) long, Cut From F42827 Bulk Trim, see below

1шт.

11

892-11006

LOCK WASHER,M6

3шт.

12

825-1406

NUT,M6, Cl 8

3шт.

F42827

TRIM,2946.4mm L

TRIM edge, Bulk, 2946 mm (116 in) long

1шт.
