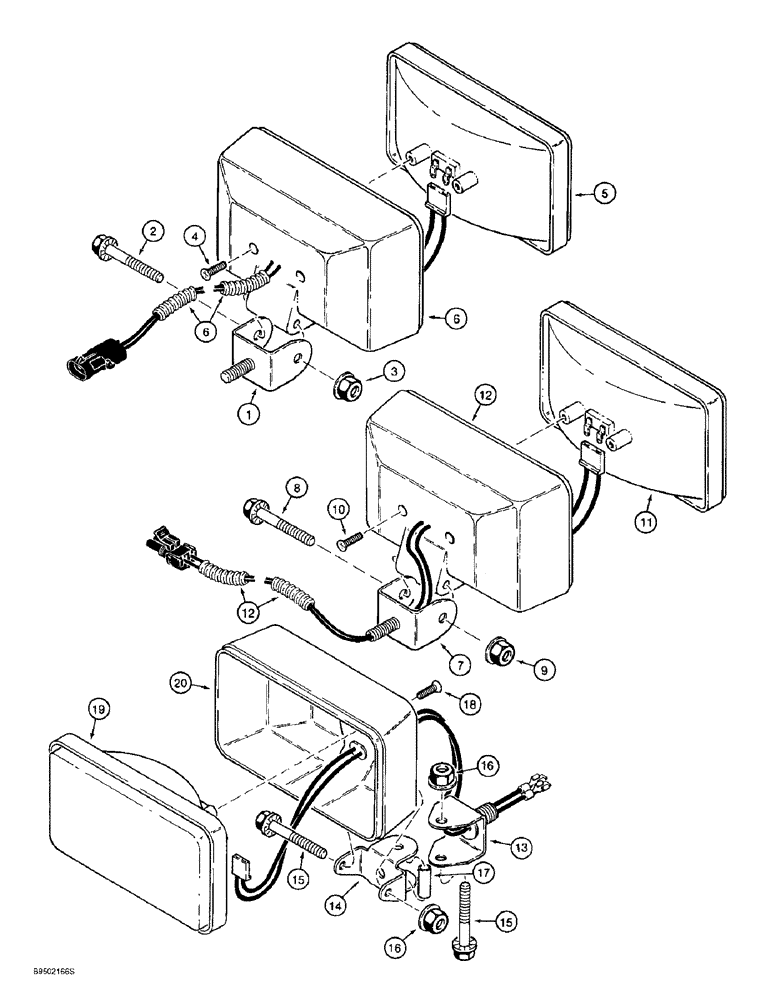

Запчасти Case 621B (4-48) - LAMPS, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

A187519

LIGHT ASSY.,24V, 70W, Clear

Front, Drive, Includes Ref 1 - 6

2шт.

1

N8347

SUPPORT

BRACKET lamp, Replaces A187913

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

103654A1

HEADLIGHT,Halogen, 24V, 60W

BULB sealed beam

1шт.

6

NSS

NOT SOLD SEPARAT

Housing, lamp

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, Includes: Ref. 7 - 12, front and rear

4шт.

7

N8347

SUPPORT

BRACKET lamp, Replaces A187913, front and rear flood lamps

1шт.

8

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front and rear flood lamps

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Front and rear flood lamps

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

Front and rear flood lamps

2шт.

11

103653A1

HEADLIGHT,24V, 60W

BULB sealed beam, front and rear flood lamps

1шт.

12

NSS

NOT SOLD SEPARAT

Housing, lamp, front and rear flood lamps

1шт.

12a

56698R1

WIRE CONNECTOR

butt splice, not shown, front and rear flood lamps

1шт.

229488A1

HEADLIGHT,24V

KIT Flood Lamp, 24 volt, Rectangular Lamp, 2 Wire, Includes A187520 Lamp Assy, 56698R1 Connector and Instruction Sheet, front and rear

1шт.

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP Flood, Cab or Canopy, Includes: Ref. 13 - 20

2шт.

13

N8347

SUPPORT

BRACKET, includes Stud, Replaces A52216

1шт.

14

N14285

SUPPORT

BRACKET, Replaces A52215

1шт.

15

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Cab or canopy floor lamps

2шт.

17

65881H

SPACER,1/4" Pipe x 1 1/4"

Replaces A52219

1шт.

18

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

19

103653A1

HEADLIGHT,24V, 60W

Bulb, sealed beam

1шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.
