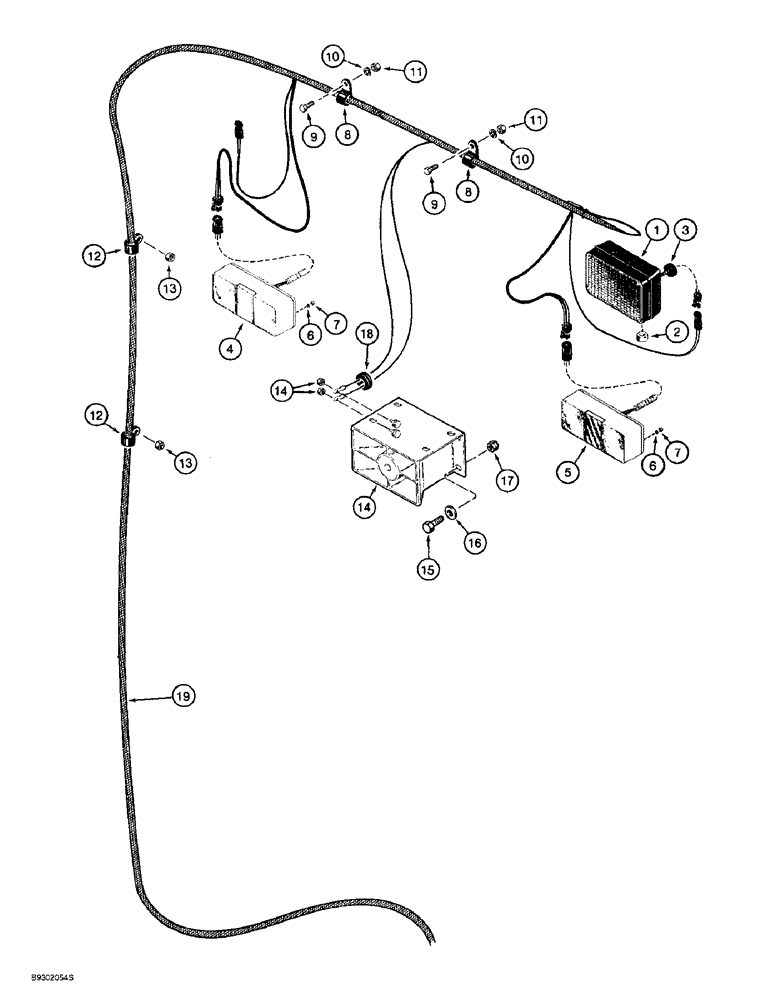

Запчасти Case 621B (4-46) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See Figure 4-48, not serviced separately, order kit 229488A1 shown on Figure 4-48

2шт.

2

131-1402

THIN NUT,1/2"-13, GB, Thin

2шт.

3

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber

2шт.

4

A187962

LAMP, TAIL

LIGHT, TAIL LAMP ASSEMBLY stop, left-hand, See Figure 4-50

1шт.

5

A187961

LAMP, TAIL

LIGHT, TAIL LAMP ASSEMBLY stop, right-hand, See Figure 4-50

1шт.

6

892-11005

LOCK WASHER,M5

8шт.

7

825-1405

NUT,M5, Cl 8

8шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

2шт.

9

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Replaces 129083R1 clamp

2шт.

13

231-1406

LOCK NUT,3/8"-16, GB

2шт.

14

D121972

ALARM

backup, electric, rectangular type, includes nuts

1шт.

15

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

4шт.

16

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

17

231-1444

NUT,1/4"-20, GB

4шт.

18

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber

1шт.

19

REF

INSTRUCTION

Harness, rear, see Figures 4-28 - 4-33C for correct harness

1шт.
