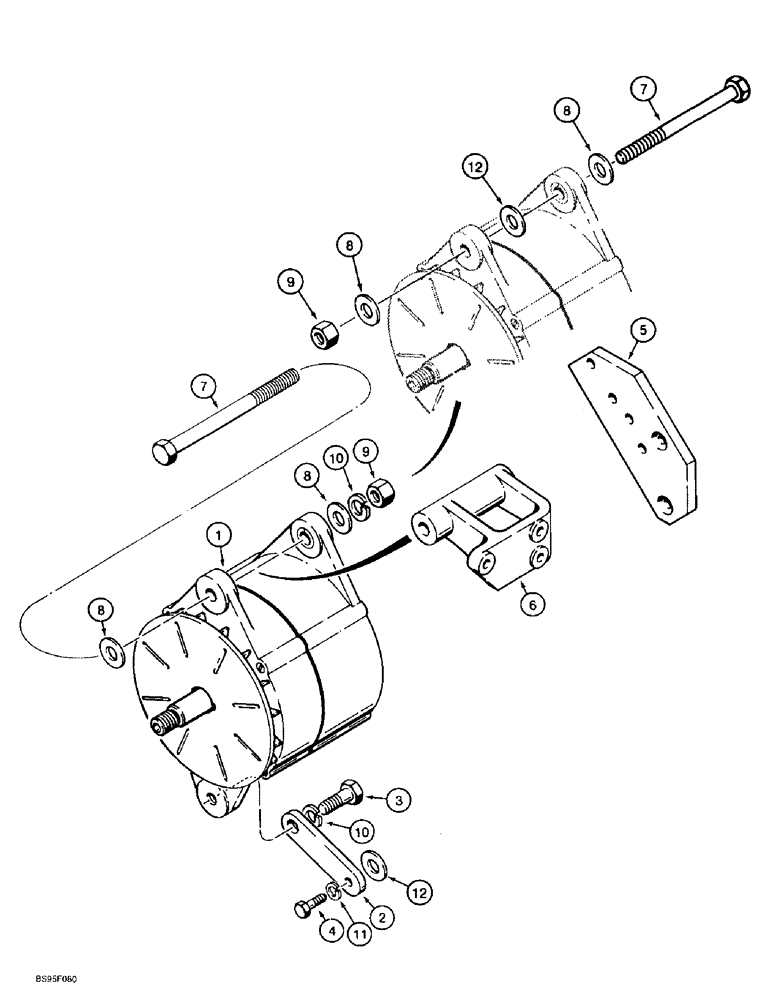

Запчасти Case 621B (4-40) - ALTERNATOR AND MOUNTING PARTS, 65 AMPERE (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ASSEMBLY, 24 volt, 65 ampere, See Figure 4-02

1шт.

1

1964860C1GV

ALTERNATOR

Value

1шт.

1

1964860C1R

REMAN-ALTERNATOR

621B CASE WHEEL LOADER (NORTH AMERICA), ASSEMBLY, 24 volt, 65 ampere (3/93-12/98)

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

J910924

PLATE

BRACE alternator mounting, supplied with engine

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Supplied with Engine

1шт.

5

J919736

SUPPORT

BRACKET supplied with engine

1шт.

6

J910923

BRACE

SUPPORT alternator mounting, supplied with engine

1шт.

7

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

9

231-4248

NUT,1/2"-13, GB

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1-2шт.

11

892-11008

LOCK WASHER,8mm ID

Supplied with engine

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

JEE0042065 to

2шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Replaces 426-820 bolt

1шт.
