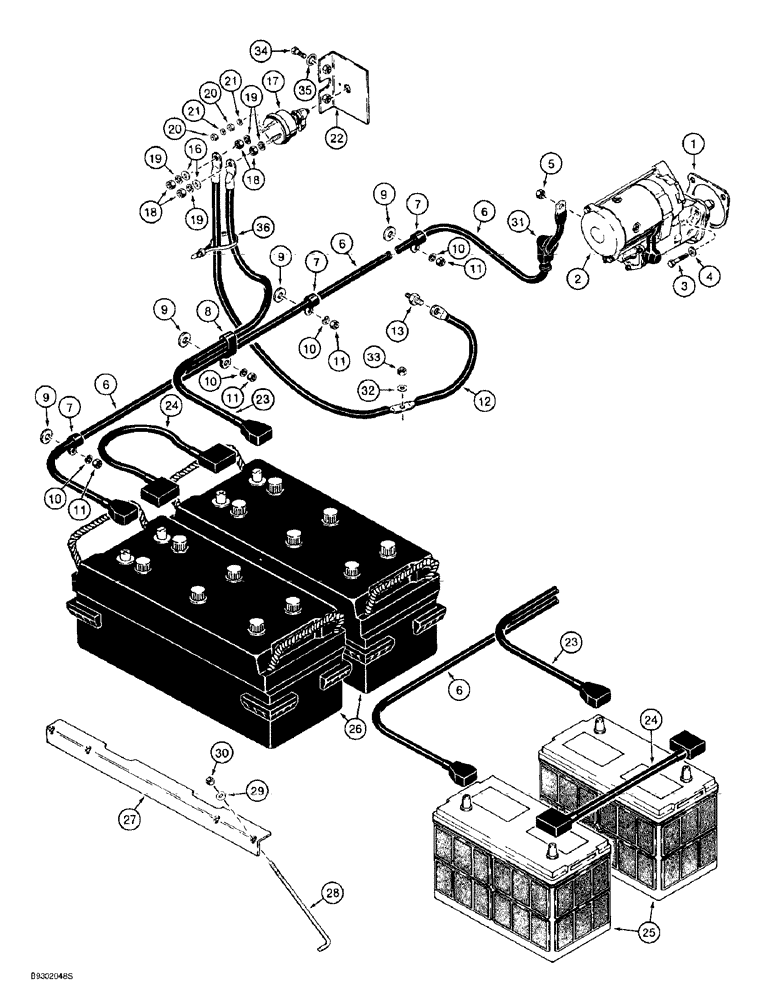

Запчасти Case 621B (4-38) - STARTER, BATTERY, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

L112209

GASKET,0.79mm Thk

starting motor

1шт.

2

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSEMBLY engine, See Figure 4-04

1шт.

2

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

2

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

2

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

10шт.

5

825-1410

NUT,M10, Cl 8

1шт.

6

L127638

CABLE

82-11/16 (2100 mm) long, battery to starter, positive terminal

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Battery cable to rear frame, Replaces 129083R1 clamp

4шт.

8

L19029

CLAMP

P-type, 1/2 inch ID, battery cable to rear frame

1шт.

9

S95569

WASHER

1/2 inch

5шт.

10

492-11038

LOCK WASHER,3/8"

5шт.

11

425-106

NUT,3/8"-16, Cl 5

5шт.

12

L124790

CABLE

ground, engine to disconnect switch

1шт.

13

L127553

STUD

ADAPTER

1шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

2шт.

L126256

SWITCH

ASSEMBLY master disconnect, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

Body, switch

1шт.

18

129-187

NUT,5/16"-24, Brass

6шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

131-573

NUT,#10-32

4шт.

21

492-11010

LOCK WASHER,#10

4шт.

22

112560A1

BRACKET

mounting, disconnect switch

1шт.

23

L124788

CABLE

ground, disconnect switch to battery, negative terminal

1шт.

24

L124738

CABLE

jumper, Serial Range: battery-battery

1шт.

25

BMF31E

DRY BATTERY

12V, standard, service replacement

2шт.

26

BHC4DA

BATTERY, DRY

BATTERY DRY heavy duty, 12 volt, service replacement

2шт.

27

L124221

SUPPORT

BRACKET battery hold down

2шт.

28

L124224

BOLT

BOLT special, J-type, battery hold down

4шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

30

231-1445

NUT,5/16"-18, GB

4шт.

31

L126713

BOOT

plastic, cable at starter

1шт.

32

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

11 x 25 x 2 mm

1шт.

33

L127555

NUT,Hex, 3/8" - 16

3/8 inch NC

1шт.

34

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

35

493-21039

LOCK WASHER,Int Tooth, 3/8"

3/8 inch

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.
