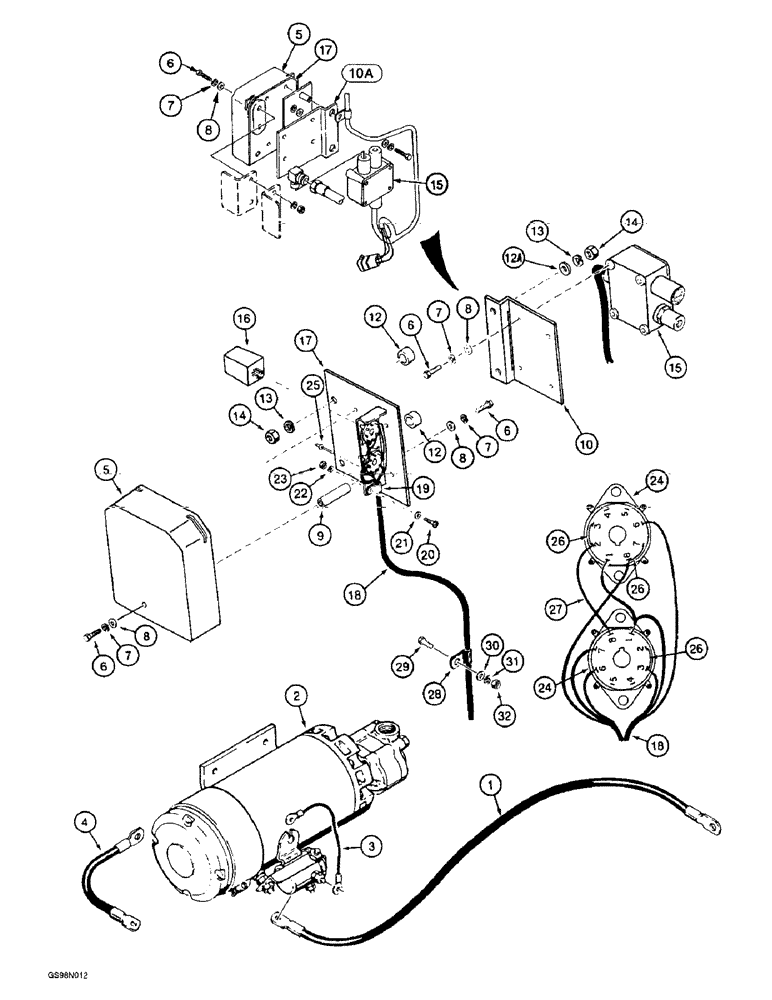

Запчасти Case 621B (4-35A) - AUXILIARY STEERING ELECTRICAL CIRCUIT, P.I.N. JEE0042310 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L128925

CABLE

Starter To Auxiliary Steering Pump

1шт.

2

REF

INSTRUCTION

PUMP AND MOTOR ASSEMBLY Auxiliary Steering, See Figure 5-12 For Correct Assy

1шт.

3

A18457

ELECTRICAL WIRE

WIRE Ground, 320 mm (13 in) Long

1шт.

4

L57536

CABLE

Ground, Pump, Serial Range: -JEE0053038

1шт.

4

278996A1

CABLE

Ground, Pump JEE0053038 to

1шт.

5

L114612

COVER

relay panel

1шт.

6

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

6шт.

7

492-11025

LOCK WASHER,1/4"

6шт.

8

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

6шт.

9

L114195

SPACER

cover to socket assembly

1шт.

10

243564A1

BRACKET

relay mounting, auxiliary steering pressure switch, used with non-rotated switch L126826, Ref. 15, replaces L129945 bracket

1шт.

10a

243564A1

BRACKET

relay mounting, auxiliary steering pressure switch, used with rotated switch L126826, Ref. 15

1шт.

11

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

12

S77915

SPACER

bracket to socket assembly

2шт.

12a

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

2шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

425-106

NUT,3/8"-16, Cl 5

4шт.

15

L126826

IGNITION SWITCH

pressure, auxiliary steering, see Figure 5-12 for auxiliary steering circuit

1шт.

Moisture and debris can enter the switch housing through the opening for the wiring harness.

1шт.

16

L113460

RELAY,24V

steering, auxiliary

2шт.

192085A1

SUPPORT

SOCKET ASSEMBLY, Includes: Ref. 17 - 27

1шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - relay socket mounting

1шт.

18

NSS

NOT SOLD SEPARAT

HARNESS - relay

1шт.

19

L73526

CLAMP

relay harness

1шт.

20

140-104

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

1шт.

21

495-21019

WASHER,#8

1шт.

22

492-11008

LOCK WASHER,#8

1шт.

23

225-14108

NUT,#8-32

1шт.

24

L57132

SOCKET

relay

2шт.

25

151-526

RIVET,Pop, 1/8" x .337"

Break mandrel

4шт.

26

L70845

ELECTRICAL WIRE

WIRE ground

3шт.

27

NSS

NOT SOLD SEPARAT

WIRE, Serial Range: relay-relay

2шт.

28

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

P-type

1шт.

29

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT carriage, 3/8 NC x 1-1/4 inch

1шт.

30

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.
