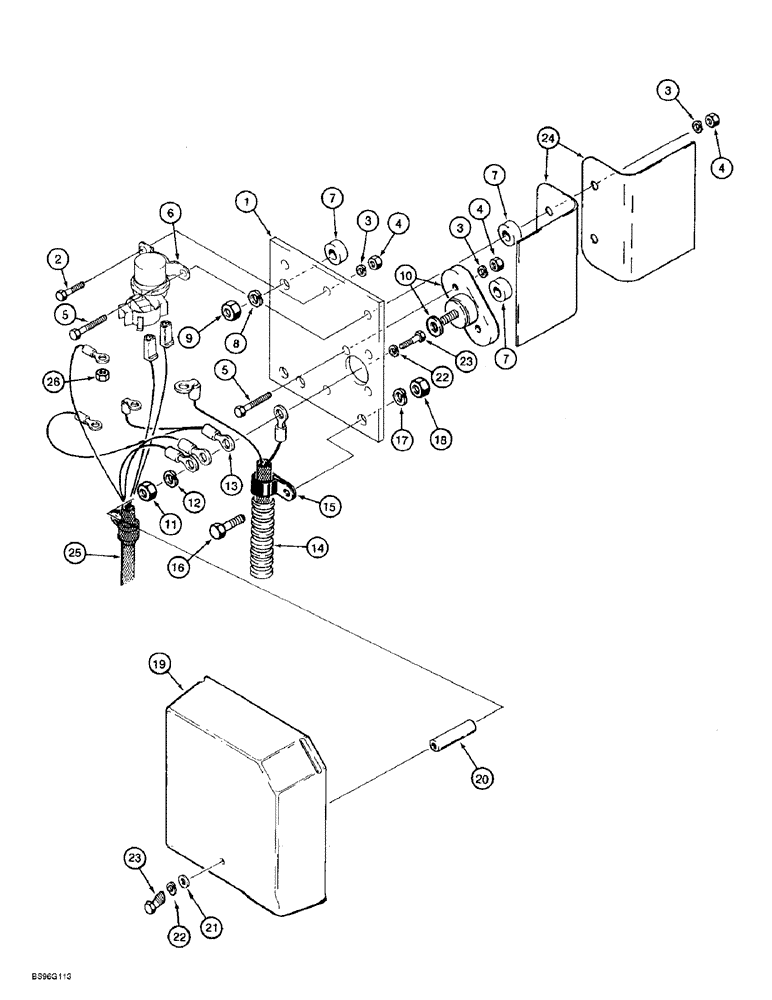

Запчасти Case 621B (4-33A) - REAR HARNESS TO RELAY PANEL, P.I.N. JEE0052701 THROUGH JEE0053349 (04) - ELECTRICAL SYSTEMS

1

125058A1

LARGE PLATE

PLATE, LARGE PANEL relay mounting

1шт.

2

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

3

492-11025

LOCK WASHER,1/4"

5шт.

4

425-104

NUT,1/4"-20, Cl 5

5шт.

5

426-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

BOLT, 1/4 NC x 1-1/4 inch, grade 8

4шт.

6

120398A1

RELAY

24 volt, starter

1шт.

7

S77915

SPACER

relay panel mounting

4шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

CONNECTOR BLOCK terminal, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY terminal block, includes flat washer

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

244375A1

HARNESS

WIRE jumper, Serial Range: block-relay

1шт.

14

128784A1

HARNESS

CABLE, Serial Range: relay-starter

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L114612

COVER

relay panel

1шт.

20

L114195

SPACER

relay cover

1шт.

21

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16 inch

1шт.

22

492-11025

LOCK WASHER,1/4"

2шт.

23

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

24

L125774

PROTECTOR

SHIELD heat, terminal block, two used on models with auxiliary steering JEE0042310 to

1-2шт.

25

244236A1

HARNESS

rear, see Figures 4-29A and 4-30 for continuation of harness JEE0052701, Serial Range: -JEE0053349

1шт.
