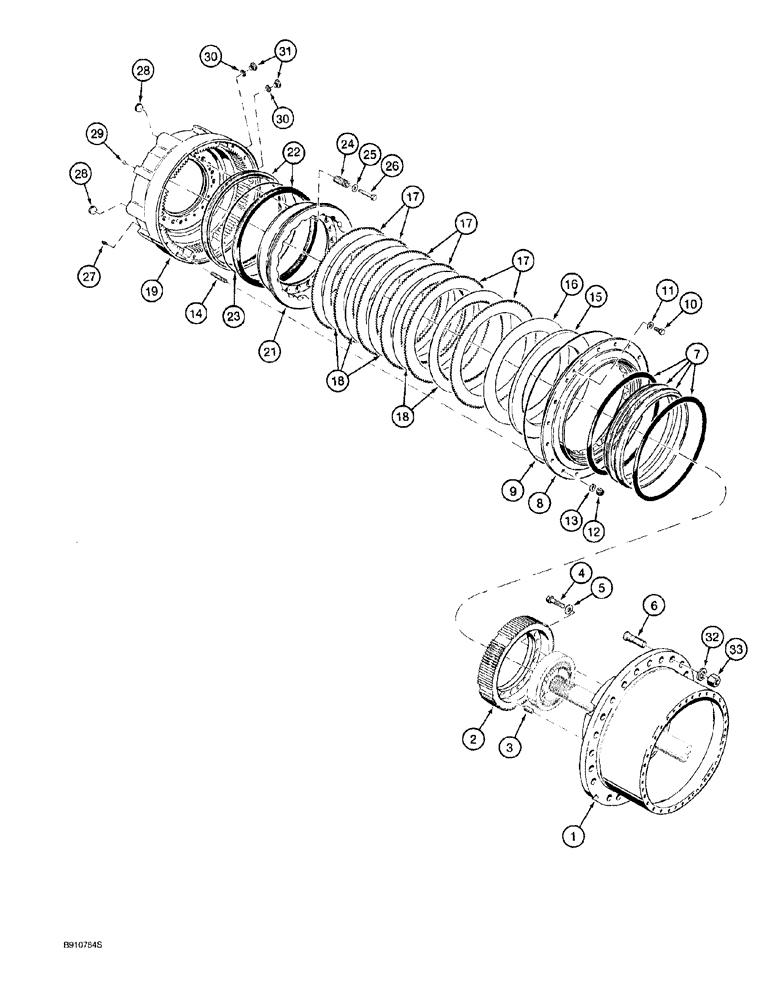

Запчасти Case 921 (7-004) - FRONT AND REAR AXLE HUB AND DISC BRAKES (07) - BRAKES

L129886

AXLE HOUSING

ASSY., front, Includes: Ref. 1 - 4 on Figure 6-060 and parts list on Figures 6-066, 6-074, and Ref. 1 - 31 on this figure

1шт.

L129887

AXLE HOUSING

ASSY., rear, Includes: Ref. 8 - 16 on Figure 6-062 and parts lists on Figures 6-070 - 6-074 and Ref. 1 - 31 on this figure

1шт.

L129888

AXLE HOUSING

ASSY., rear, with no-spin differential, if used, Includes: Ref. 1 - 9 on Figure 6-062 and parts list on Figures 6-070 - 6-074 and Ref. 1 - 31 on this figure

1шт.

S301715

HUB ASSY.

AND GEAR wheel, Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

HUB wheel

1шт.

2

S301706

PINION

GEAR hub

1шт.

3

S301716

DOWEL

2шт.

4

S301814

BOLT

BOLT hex, special, Serial Range: gear-hub

15шт.

5

D74504

WASHER

flat, special

15шт.

6

S301019

STUD

BOLT press-in, special, wheel

46шт.

7

S301717

SET

KIT hub oil seal, consists of: (2) O-rings and (2) seals, not available separately

2шт.

8

S301745

SUPPORT

COVER brake

2шт.

9

S301744

O-RING,0.21" Thk x 19.95" ID, -389, 70 Duro

brake cover

2шт.

10

S301747

SCREW

special, extractor hole

4шт.

11

S301746

WASHER

special, extractor hole

4шт.

12

232-4618

LOCK NUT,1/2"-20, GC

36шт.

13

D74508

WASHER

flat, special, hardened

36шт.

14

S301726

STUD

special, brake cover to piston housing

36шт.

Dana is now using O-ring 338650A1 on axles to seal around studs.

1шт.

15

S301718

LARGE PLATE

PLATE, LARGE reaction

2шт.

16

S301719

BLOCK

SHIM 0.25 mm thick

1шт.

16

S301720

BLOCK

SHIM 0.50 mm thick

1шт.

16

S301721

BLOCK

SHIM 0.75 mm thick

1шт.

16

S301722

BLOCK

SHIM 1.00 mm thick

1шт.

17

100049A1

DISC

PLATE pressure

12шт.

18

100050A1

DISC

friction

10шт.

100062A1

HUB

PISTON ASSY., brake, right-hand, Includes: Ref. 19 - 26

1шт.

100061A1

HUB

PISTON ASSY., brake, left-hand, not shown, Includes: Ref. 19 - 26

1шт.

19

S301727

HOUSING

piston, right-hand

1шт.

20

S301728

HOUSING

piston, left-hand, not shown

1шт.

21

S301725

PISTON

brake

2шт.

22

S301739

SEAL

piston

4шт.

23

S301740

O-RING,380.37mm ID x 6.99mm Width

Piston

2шт.

24

S301741

SPRING

piston return

20шт.

25

S301742

WASHER

special, bolt

20шт.

26

S301743

BOLT

special, spring

20шт.

27

S301729

PLUG

bleed

2шт.

28

K12362

PLUG

housing

4шт.

29

NSS

NOT SOLD SEPARAT

PLUG piston housing

1шт.

30

S301737

WASHER

special, drain plug

4шт.

31

S301738

PLUG

drain

4шт.

32

S92341

WASHER

flat, special

92шт.

33

29-1714

NUT,7/8"-14, G8, Hvy

Hex, Replaces 25-1714

92шт.
