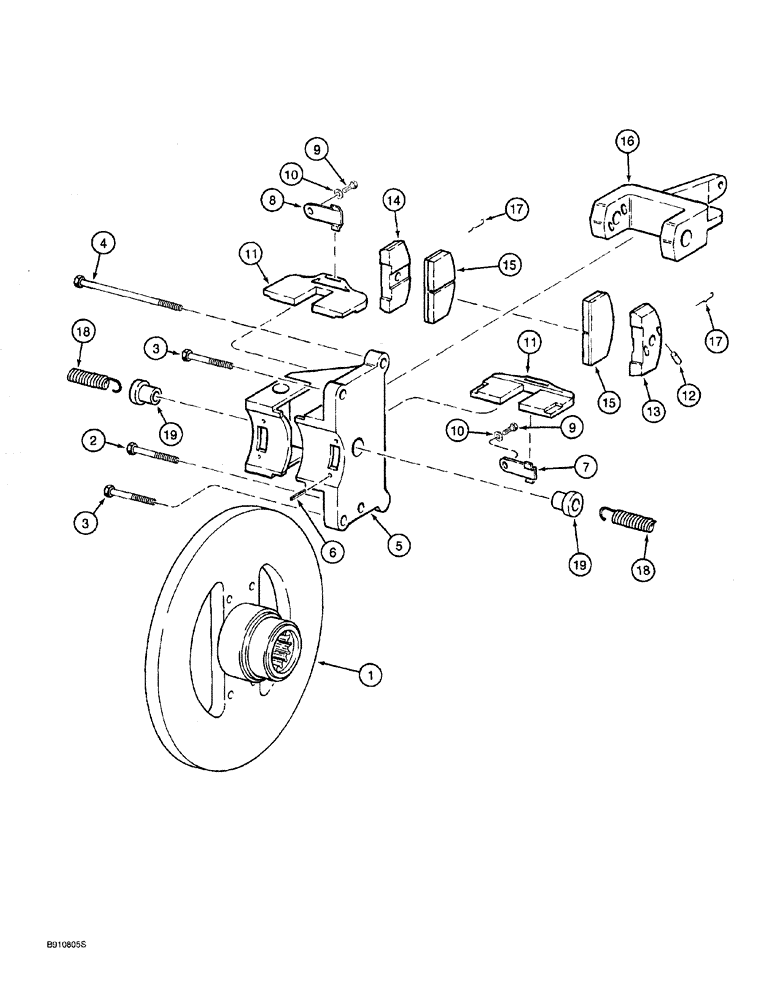

Запчасти Case 921 (7-002) - PARKING BRAKE (07) - BRAKES

L129883

TRANSMISSION

ASSY., parts list Figures 6-008 - 6-028, 6-052 - 6-058, 7-002 and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

114363A1

TRANSMISSION

ASSY., new, parts list Figures 6-030 - 6-058, 7-002 and Ref. 4, Figure 6-004, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

100303A1

BRAKE DISC

DISC, BRAKE YOKE output flange, parking

1шт.

2

100727A1

BOLT

hex, special, 14 - 2 x 40 mm class 10.9

1шт.

3

931211R1

BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd

hex, special, 14 - 2 x 45 mm

2шт.

4

129788A1

SCREW,Hex, M14 x 210mm, Cl 10.9

BOLT hex, special

1шт.

S301894

BRAKE ASSY.

parking, Includes: 100314A1 and Ref. 5 - 19

1шт.

100314A1

BRAKE CALIPER

CALIPER, BRAKE ASSY., parking, Includes: Ref. 5 - 10

1шт.

5

100315A1

BRAKE CALIPER

CALIPER, BRAKE fixed

1шт.

6

100316A1

SPLIT PIN/SAFETY PIN

roll

4шт.

7

100317A1

SPRING

locking, front

1шт.

8

100318A1

SPRING

locking, rear

1шт.

9

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT hex, 8 - 1.25 x 16 mm

2шт.

10

100319A1

SPRING WASHER

spring, special

2шт.

11

100305A1

LEDGER PLATE

locking

2шт.

12

100307A1

SPLIT PIN/SAFETY PIN

thrust

4шт.

13

100308A1

BLOCK

ACTUATOR parking brake, front

1шт.

14

100309A1

BLOCK

ACTUATOR parking brake, rear

1шт.

15

100313A1

FACING

SHOE AND LINING ASSY., parking brake, components are not serviced separately or available in a kit

2шт.

16

100306A1

LEVER

brake actuating

1шт.

17

100312A1

CLIP

CLIP

2шт.

18

100311A1

SPRING

actuator

2шт.

19

100310A1

SLEEVE

BUSHING caliper

2шт.
