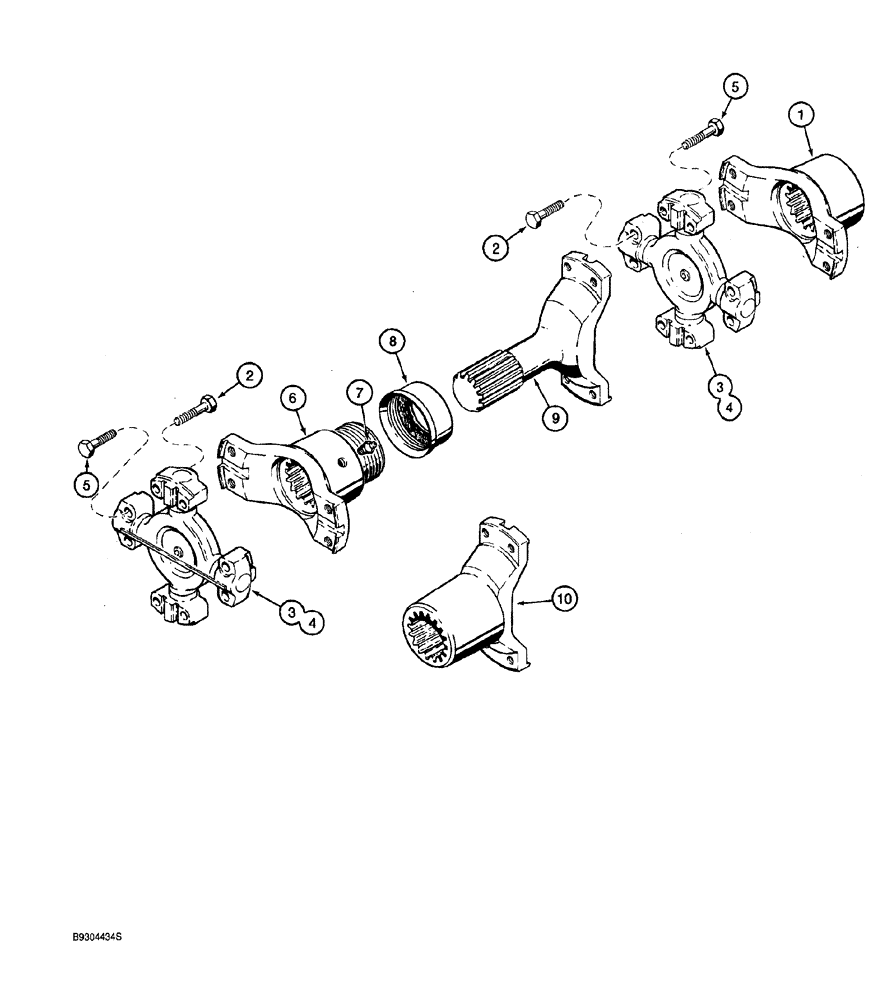

Запчасти Case 921 (6-080) - REAR DRIVE SHAFT (06) - POWER TRAIN

1

REF

INSTRUCTION

FLANGE transmission to rear drive shaft, see Ref. 4 on Figures 6-028 or 6-050

1шт.

2

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

L127797

SHAFT ASSY.

drive, rear axle, Includes: S301993 and Ref. 3 - 9

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

KIT universal joint, journal and bearing, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

JOURNAL universal joint

1шт.

4

NSS

NOT SOLD SEPARAT

RACE bearing

4шт.

5

S301992

SCREW

BOLT hex, special

4шт.

S301996

YOKE

UNIVERSAL JOINT YOKE ASSY., slip, axle end, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE slip

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

S301995

SEAL ASSY.

CAP dust, drive shaft, includes washer and seal which are not serviced separately

1шт.

9

S302023

JAW

YOKE spline, transmission end

1шт.

10

REF

INSTRUCTION

FLANGE rear drive shaft to rear axle, see Ref. 2 on Figure 6-070

1шт.
