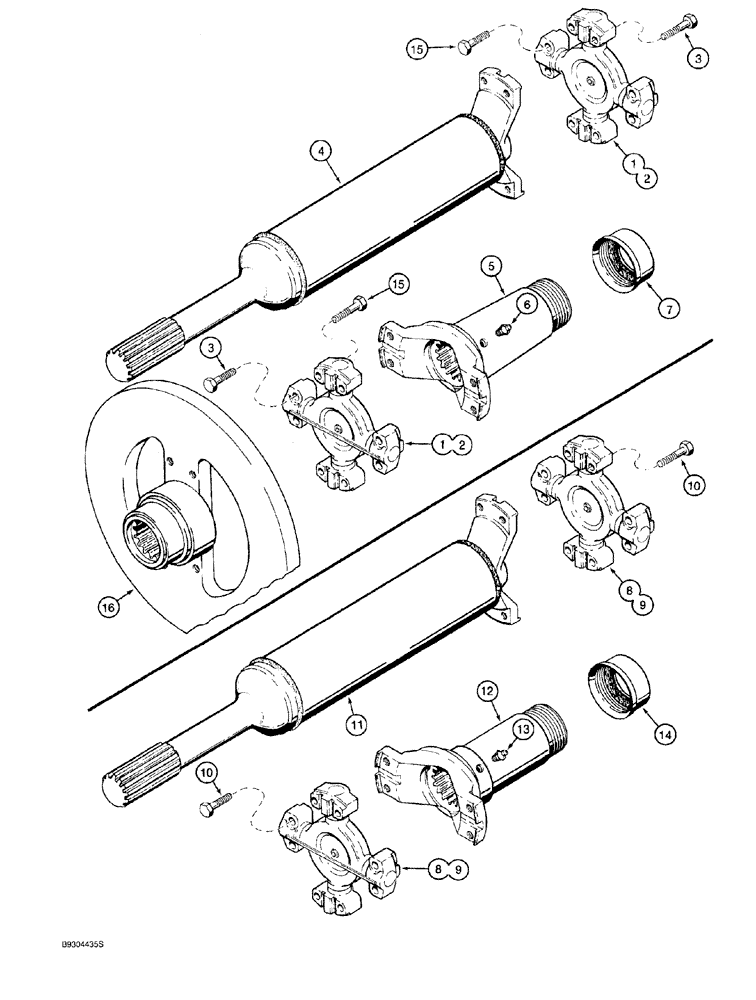

Запчасти Case 921 (6-078) - CENTER DRIVE SHAFTS (06) - POWER TRAIN

L127796

SHAFT ASSY.

drive, center, L127796, if used, Includes: S301993 and Ref. 1 - 7

1шт.

To distinguish which drive shaft you have on your unit, look at Ref. 5 and 12 on the illustration. The tube portion of Ref. 5 slip yoke, has a slight taper from the yoke to the cap and uses a 9/16 inch long grease fitting. Ref. 12 slip yoke has a straight tube and uses a 15/16 inch long grease fitting.

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

KIT universal joint, journal and bearing, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL universal joint

1шт.

2

NSS

NOT SOLD SEPARAT

RACE bearing

4шт.

3

S301992

SCREW

BOLT hex, special

4шт.

4

S302011

TUBE

YOKE spline, axle end

1шт.

S301994

FORK

YOKE ASSY., slip, transmission end, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

YOKE slip

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

7

S301995

SEAL ASSY.

CAP dust, center drive shaft, includes washer and seal which are not serviced separately

1шт.

108758A1

DRIVE SHAFT

SHAFT ASSY., drive, center, 108758A1, if used, Includes: S301993 and Ref. 8 - 14

1шт.

To distinguish which drive shaft you have on your unit, look at Ref. 5 and 12 on the illustration. The tube portion of Ref. 5 slip yoke, has a slight taper from the yoke to the cap and uses a 9/16 inch long grease fitting. Ref. 12 slip yoke has a straight tube and uses a 15/16 inch long grease fitting.

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

KIT universal joint, journal and bearing, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

JOURNAL universal joint

1шт.

9

NSS

NOT SOLD SEPARAT

RACE bearing

4шт.

10

S301992

SCREW

BOLT hex, special

4шт.

11

117786A1

YOKE

UNIVERSAL JOINT YOKE spline, axle end

1шт.

117788A1

YOKE

ASSY., slip, transmission end, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

YOKE slip

1шт.

13

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Straight, Taper

1шт.

14

117789A1

CAP

dust, center drive shaft, includes washer and seal which are not serviced separately

1шт.

15

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

16

REF

INSTRUCTION

DISC output flange, center drive shaft to transmission, see Ref. 19 on Figures 6-28 or 6-50 and Ref. 1 on Figure 7-2

1шт.
