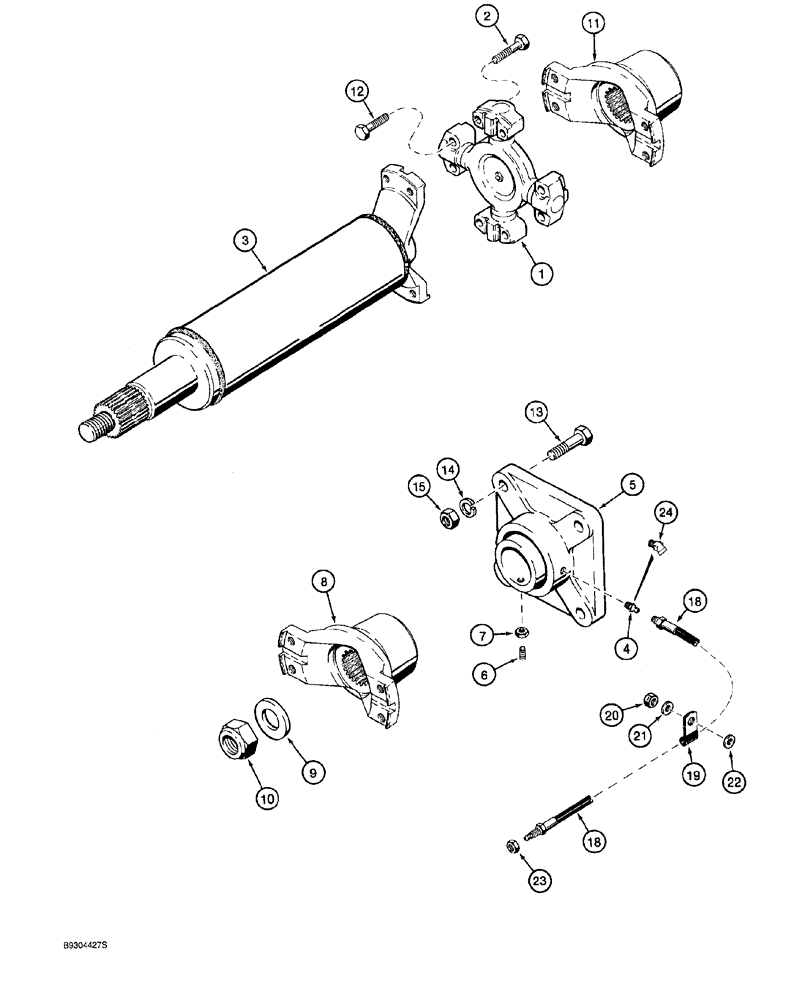

Запчасти Case 921 (6-076) - FRONT DRIVE SHAFT AND SUPPORT BEARING (06) - POWER TRAIN

L127795

SHAFT

ASSY., drive, front axle, Includes: Ref. 1 - 10

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

KIT universal joint, journal and race, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL AND RACE universal joint

1шт.

2

S301992

SCREW

BOLT hex, special

4шт.

3

S301990

TUBE

YOKE drive shaft, axle end

1шт.

S301991

BEARING CARRIER,3"

SUPPORT ASSY., front drive shaft, Includes: Ref. 4 - 7

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING bearing

1шт.

6

84-64412

SET SCREW,Hex Soc, 7/16"-20 x 3/4"

hex socket, 7/16 NF x 3/4 inch, half dog point

1шт.

7

25-157

JAM NUT,Jam, 7/16"-20, G5

hex, jam, 7/16 inch NF

1шт.

8

90-7379T1

YOKE

UNIVERSAL JOINT YOKE shaft, to center bearing, Replaces: S301997

1шт.

9

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

Hardened

1шт.

10

131-487

LOCK NUT,1 1/4"-18

heavy hex, self-locking, 1-1/4-18 inch

1шт.

11

REF

INSTRUCTION

FLANGE companion, drive shaft to front axle, see Ref. 2, Figure 6-066

1шт.

12

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

13

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch

4шт.

14

492-11062

BEARING WASHER,5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

18

L54693

HOSE

27 inch (686 mm) long

1шт.

19

49832

CLAMP

P-type, 5/16 inch ID

1шт.

20

231-1446

NUT,3/8" - 16, Gr 5

1шт.

21

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

23

F53473

LOCK NUT,1/8-27 NPSM

special

1шт.

24

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street

1шт.
