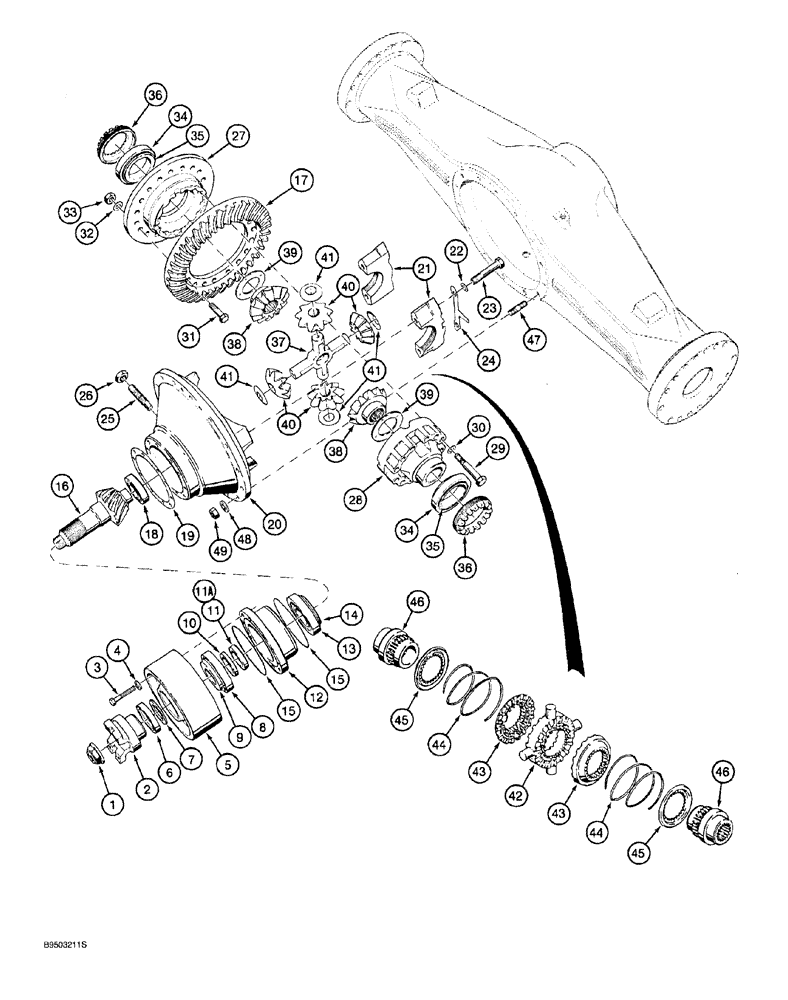

Запчасти Case 921 (6-070) - REAR AXLE DIFFERENTIAL AND CARRIER (06) - POWER TRAIN

L129887

AXLE HOUSING

ASSY., rear, if used, Includes: Ref. 1 - 9 on Figure 6-062 and parts lists on Figures 6-070 - 6-074 and 7-004

1шт.

L129887 axle assembly does not include Ref. 42 - 46 on this figure.

1шт.

L129888

AXLE HOUSING

ASSY., rear, with no-spin differential, if used, Includes: Ref. 1 - 9 on Figure 6-062 and parts lists on Figures 6-070 - 6-074 and 7-004

1шт.

L129888 no-spin axle assembly does not include Ref. 37 - 41 on this figure.

1шт.

100057A1

DIFFERENTIAL

ASSY., axle, rear, Includes: Ref. 1 - 49

1шт.

100058A1

DIFFERENTIAL

ASSY., axle, with no-spin, rear, Includes: Ref. 1 - 49

1шт.

1

S301756

FLANGE NUT

special, flange

1шт.

2

S301757

FLANGE

coupling

1шт.

3

S301758

BOLT

special

10шт.

4

D74508

WASHER

flat, special

10шт.

5

S301759

RETAINER

COVER pinion shaft

1шт.

6

S301806

OIL SEAL

SEAL oil, pinion shaft

1шт.

7

S301805

WASHER

flat, special

1шт.

S301813

CAGE

ASSY., pinion shaft, Includes: S301804 and Ref. 10, 11

1шт.

S301804

BEARING ASSY,61.92mm ID x 146.06mm OD x 41.38mm W

KIT cup, Includes: Ref. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

CUP bearing

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING tapered roller

1шт.

10

S301803

SPACER

12.000 mm thick

1шт.

11

S301793

SPACER

15.675 mm thick

1шт.

11a

S301790

SPACER

15 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301791

SPACER

15.225 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301792

SPACER

15.450 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301793

SPACER

15.675 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301794

SPACER

11.4 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301795

SPACER

11.425 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301796

SPACER

11.450 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301797

SPACER

11.475 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301798

SPACER

11.5 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301799

SPACER

11.525 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301800

SPACER

11.55 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301801

SPACER

11.575 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

11a

S301802

SPACER

11.6 mm thick

1шт.

Ref. 11A spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

129473A1

CYLINDER END CAP

CAGE ASSY., pinion shaft, Includes: Ref. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE pinion shaft

1шт.

13

NSS

NOT SOLD SEPARAT

CUP bearing

1шт.

100394A1

BEARING ASSY

KIT cup, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

CUP bearing

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING tapered roller

1шт.

15

S301789

O-RING,179.5mm ID x 3mm Width

pinion shaft cage

2шт.

100052A1

GEAR SET

BEVEL GEAR AND PINION differential, Includes: Ref. 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT pinion, differential

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

18

S301787

BALL BEARING

ball, pinion shaft

1шт.

19

S301761

SHIM,0.076mm Thk

(.003")

1шт.

19

S301762

SHIM,0.127mm Thk

(.005")

1шт.

19

S301763

SHIM,0.254mm Thk

(.010")

1шт.

S301764

HOUSING

CARRIER ASSY., differential, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING carrier

1шт.

21

NSS

NOT SOLD SEPARAT

CAP bearing

2шт.

22

S301810

WASHER

flat, special

4шт.

23

S301811

BOLT

BOLT hex, special, 16 - 2 x 90 mm class 10.9

4шт.

24

S301781

PLATE

lock

2шт.

25

N6213

SCREW,M22 x 2.5 x 2.5mm

STUD carrier housing

1шт.

26

N6255

LOCK NUT

self-locking, special

1шт.

S301768

CAGE

HOUSING ASSY., differential, Includes: Ref. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING flange half

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING plain half

1шт.

29

S301782

BOLT

hex, special, differential housing

12шт.

30

S300312

WASHER

flat, special, differential housing

12шт.

31

S301767

BOLT

special, ring, Serial Range: gear-housing

18шт.

32

D74504

WASHER

flat, special

18шт.

33

S300311

NUT

hex, special

18шт.

S301453

BEARING ASSY

KIT cup, Includes: Ref. 34, 35

2шт.

34

NSS

NOT SOLD SEPARAT

CUP bearing

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING tapered roller

1шт.

36

S301770

RING

adjusting

2шт.

37

S301784

DIFF. SPIDER

L129887 rear axle

1шт.

38

S301772

GEAR

side, L129887 rear axle

2шт.

39

S301783

WASHER

thrust, side gear, L129887 rear axle

2шт.

40

S301785

PINION

GEAR L129887 rear axle

4шт.

41

S301786

WASHER

thrust, pinion, L129887 rear axle

4шт.

S301984

DIFFERENTIAL

SPIDER AND GEAR ASSY., no-spin, L129888 rear axle, Includes: Ref. 42 - 46

1шт.

42

S301985

DIFF. SPIDER

1шт.

43

S301986

CLUTCH

spider

2шт.

44

S301987

SPRING

spider

2шт.

45

S301988

STOP

RETAINER spring

2шт.

46

S301989

GEAR

side, outer

2шт.

47

S301780

STUD

carrier, to axle housing

14шт.

48

D74504

WASHER

flat, special

14шт.

49

S300311

NUT

hex, special

14шт.
