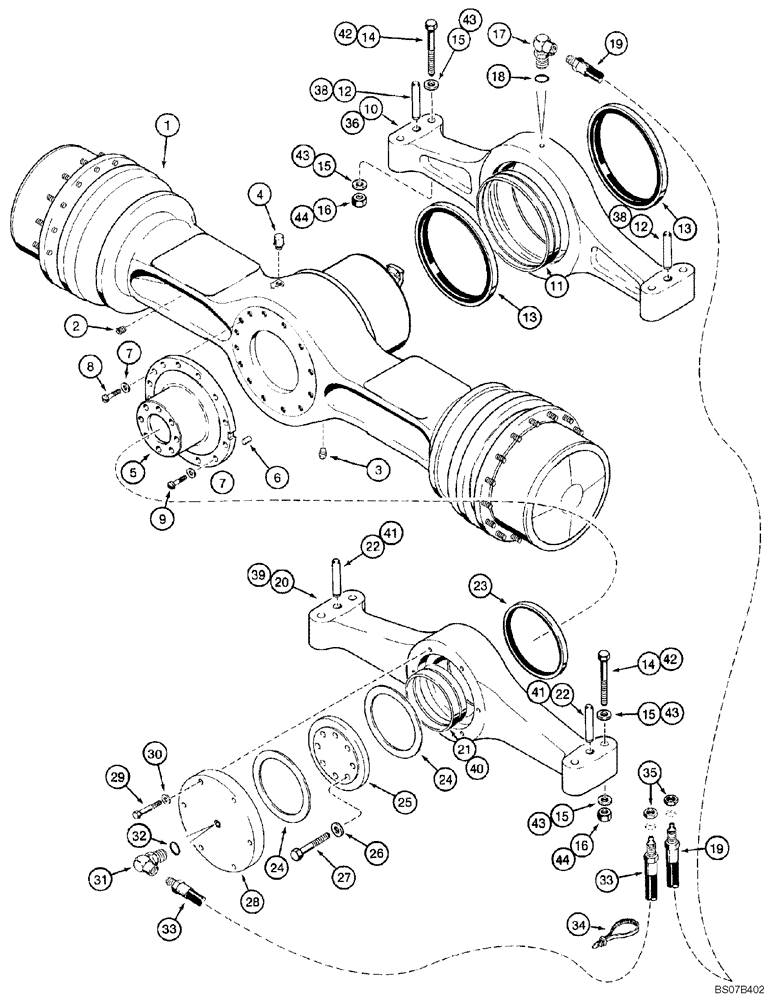

Запчасти Case 921 (6-062) - REAR AXLE MOUNTING AND HOUSING, INCLUDES TRUNNIONS AND LUBRICATION LINES (06) - POWER TRAIN

L129887

AXLE HOUSING

ASSY., rear, Includes: Ref. 1 - 9 on this figure and parts on Figures 6-070 - 6-074 and 7-004

1шт.

L129888

AXLE HOUSING

ASSY., rear, with no-spin differential, if used, Includes: Ref. 1 - 9 on this figure and parts on Figures 6-070 - 6-074 and 7-004

1шт.

1

S301773

HOUSING

rear axle

1шт.

2

K12362

PLUG

housing

1шт.

3

S300819

PLUG

drain

1шт.

4

S301626

PLUG

BREATHER axle

1шт.

5

S301774

HOUSING

trunnion suspension

1шт.

6

S301777

DOWEL

PIN suspension housing to axle housing

2шт.

7

D74504

WASHER

flat, special

14шт.

8

S301775

LOCK BOLT

set, special

2шт.

9

S301776

SCREW

set, special

12шт.

10

L129423

TRUNNION

ASSY., axle mounting, front, Includes: Ref. 11, 12, no longer available, order Ref. 36, 188309A1

1шт.

11

105888A1

BUSHING,275.31mm ID x 287.97mm OD x 55mm L

front axle trunnion, Replaces: L127979

1шт.

12

H365742

LARGE PIN

PIN, LARGE shear, trunnion

2шт.

13

L128290

OIL SEAL,274.83mm ID x 305.18mm OD x 14.99mm Thk

front trunnion

2шт.

14

326-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

L129423 and L129422 trunnions

8шт.

15

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

L129423 and L129422 trunnions

16шт.

16

329-1012

NUT,3/4"-10, G8

L129423 and L129422 trunnions

8шт.

17

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Includes: Ref. 18

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

L54694

HOSE,4.8mm ID x 1041mm L

41 inch (1041 mm) long, lubrication, front trunnion

1шт.

20

L129422

TRUNNION

ASSY., axle mounting, rear, Includes: Ref. 21, 22, no longer available, order Ref. 39, 113951A1

1шт.

21

105887A1

BUSHING,170.23mm ID x 182.78mm OD x 64mm L

rear axle trunnion, Replaces: L127980

1шт.

22

H365742

LARGE PIN

PIN, LARGE shear, trunnion

2шт.

23

L128291

SEAL

rear trunnion

1шт.

24

L128209

WASHER,172.2mm ID x 216mm OD x 5mm Thk

thrust, rear trunnion

2шт.

25

L128277

SPACER

rear, Serial Range: trunnion-cover

1шт.

26

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

8шт.

27

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

8шт.

28

L128278

COVER

rear trunnion

1шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

6шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

6шт.

31

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Includes: Ref. 32

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

33

L72667

HOSE

60 inch (1524 mm) long, lubrication, rear trunnion

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

35

F53473

LOCK NUT,1/8-27 NPSM

special, lubrication hose

2шт.

36

188309A1

TRUNNION

ASSY., axle mounting, front, Replaces: 113953A1, Includes: Ref. 37, 38

1шт.

38

37-11236

DOWEL,3/4" x 2 1/4"

PIN hardened, 3/4 x 2-1/4 inch

2шт.

39

113951A1

TRUNNION

ASSY., axle mounting, rear, Includes: Ref. 40, 41

1шт.

40

105887A1

BUSHING,170.23mm ID x 182.78mm OD x 64mm L

rear axle trunnion

1шт.

41

37-11236

DOWEL,3/4" x 2 1/4"

PIN hardened, 3/4 x 2-1/4 inch

2шт.

42

26-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 8

BOLT hex, 7/8 NC x 7 inch, grade 8

8шт.

43

S92341

WASHER

flat, special, hardened

16шт.

44

329-1014

NUT,7/8"-9, G8

8шт.
