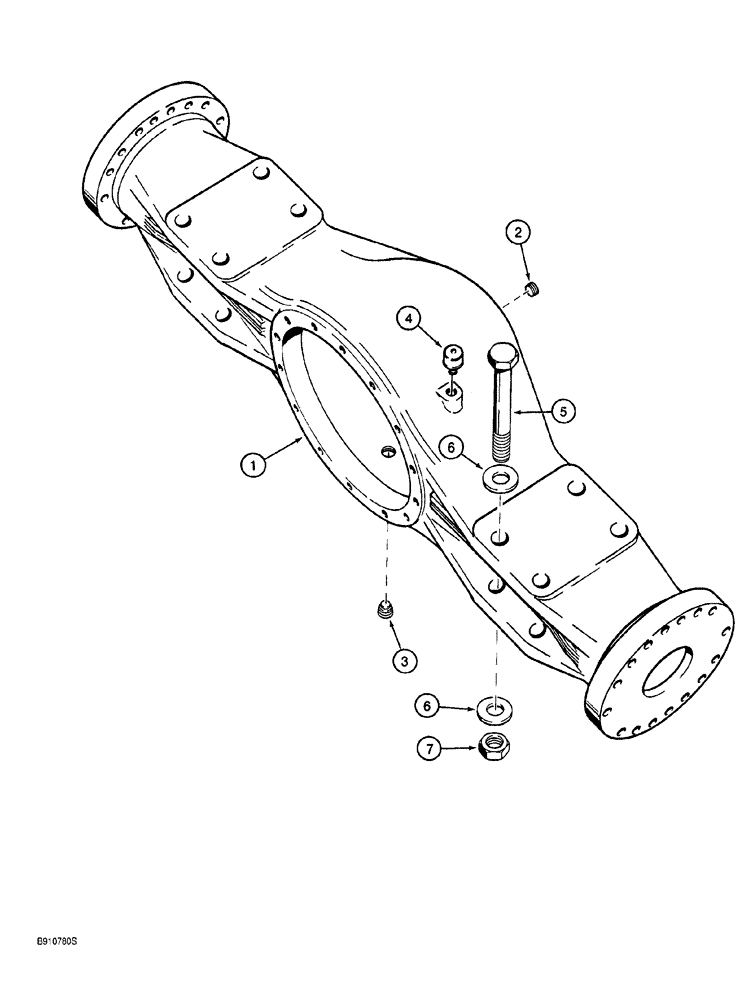

Запчасти Case 921 (6-060) - FRONT AXLE MOUNTING AND HOUSING (06) - POWER TRAIN

L129886

AXLE HOUSING

ASSY., front, Includes: Ref. 1 - 4 on this figure and parts on Figures 6-066, 6-074 and 7-004

1шт.

1

S301812

HOUSING

front axle

1шт.

2

K12362

PLUG

housing

1шт.

3

S300819

PLUG

drain

1шт.

4

S301626

PLUG

BREATHER axle

1шт.

5

28-20200

BOLT,Hex, 1-1/4" - 12 x 12-1/2", Gr 8

hex, 1-1/4 NF x 12-1/2 inch, grade 8

8шт.

6

D43745

WASHER

flat, special, hardened

16шт.

7

29-1120

NUT,1 1/4"-12, G8

hex, 1-1/4 inch NF, grade 8

8шт.
