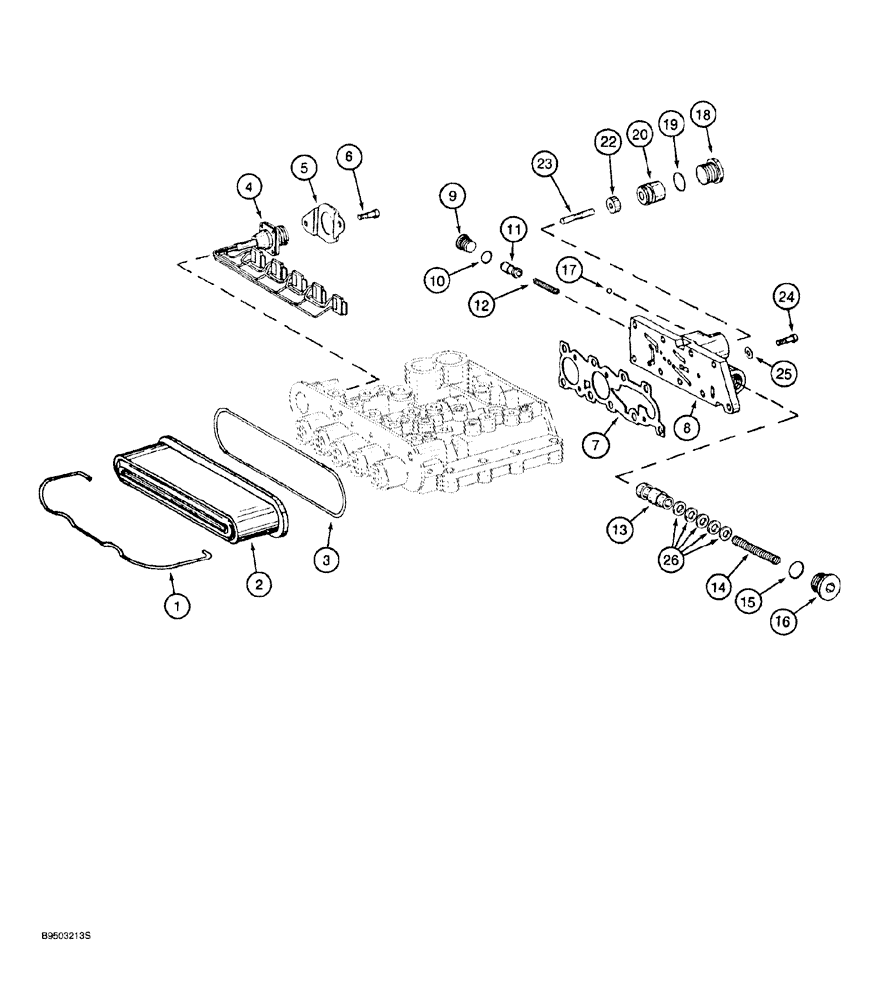

Запчасти Case 921 (6-058) - TRANSMISSION ASSEMBLY, CONTROL VALVE COVERS AND HARNESS (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: 100333A1, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

114363A1

TRANSMISSION

ASSY., new, Includes: 100333A1, see Figures 6-030 - 6-058, 7-002 and Ref. 4, Figure 6-004 and Ref 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

100333A1

VALVE

ASSY., transmission control, Includes: Ref. 1 - 26 on this figure and Ref. 1 - 40 on Figure 6-056

1шт.

1

100361A1

CLAMP

wire, solenoid cover

1шт.

2

100360A1

COVER

solenoid, used in 100334A1 and 178911A1 transmission control valve body only, see Figure 6-056

1шт.

2

129808A1

COVER

solenoid, used in 185437A1 transmission control valve body only, see Figure 6-056

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL solenoid cover, used in 100334A1 and 178911A1 transmission control valve body only, see Figure 6-056

1шт.

3

129809A1

O-RING,159.2mm ID x 5.7mm Width

solenoid cover, used in 185437A1 transmission control valve body only, see Figure 6-056

1шт.

4

100357A1

HARNESS

transmission control valve

1шт.

5

100359A1

LARGE PLATE

PLATE, LARGE BRACKET harness mounting

1шт.

6

100358A1

SCREW

cap, special

2шт.

7

100351A1

GASKET

cover

1шт.

8

100362A1

HOUSING

COVER valve, front, used in 100334A1 and 178911A1 transmission control valve body only, see Figure 6-056

1шт.

8

129810A1

LARGE PLATE

PLATE, LARGE COVER valve, front, used in 185437A1 transmission control valve body only, see Figure 6-056

1шт.

9

100367A1

PLUG

hex socket, special

1шт.

10

100369A1

O-RING,9.5mm ID x 2mm Width

plug

1шт.

11

100366A1

PISTON

SPOOL relief, small

1шт.

12

100368A1

COMPRESSION SPRING

small, relief spool

1шт.

13

100370A1

PISTON

SPOOL relief, large

1шт.

14

N14721

SPRING

large, relief spool

1шт.

15

106970A1

SEALING RING

plug, Replaces: S300495

1шт.

16

934164R1

PLUG,Hex Soc, M18 x 1.5

hex socket, special, 18 mm - 1.5

1шт.

17

S300552

BALL

valve

4шт.

18

S301601

PLUG

hex, special, if used

1шт.

19

S301602

O-RING,2mm Thk x 17mm ID

O-RING plug, if used

1шт.

20

100364A1

PISTON

20.5 mm, if used

1шт.

20

131082A1

PISTON

21.0 mm, if used

2шт.

20

100365A1

PISTON

21.5 mm, if used

1шт.

22

S301604

SHIM

2.0 mm thick, if used

1шт.

22

S301605

SHIM

3.0 mm thick, if used

1шт.

22

S301606

SHIM

4.0 mm thick, if used

1шт.

22

S301607

SHIM

6.0 mm thick, if used

1шт.

22

S301608

SHIM

8.0 mm thick, if used

1шт.

23

S301603

NEEDLE

PLUNGER valve

1шт.

24

131080A1

SCREW,M6 x 20mm, Gr 8.8

hex socket, special, 6 - 1.0 x 20 mm, Replaces: 100363A1

9шт.

25

3078026R1

WASHER,M6.4

flat, special

9шт.

26

S301611

SHIM,0.5mm Thk

If used

5шт.
