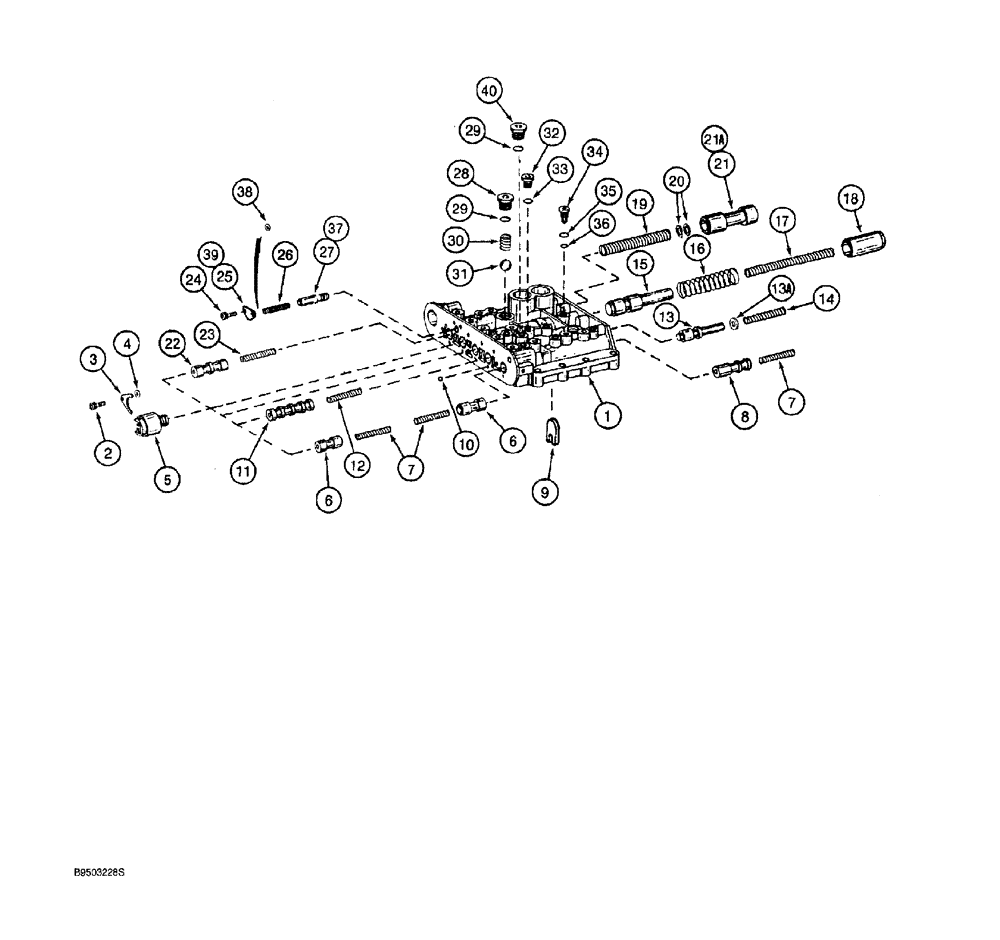

Запчасти Case 921 (6-056) - TRANSMISSION ASSEMBLY, CONTROL VALVE (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: 100333A1, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

114363A1

TRANSMISSION

ASSY., new, Includes: 100333A1, see Figures 6-030 - 6-058, 7-002 and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

100333A1

VALVE

ASSY., transmission control, Includes: Ref. 1 - 40

1шт.

1

100334A1

HOUSING

BODY transmission control valve, casting stamped 4644-406-372, if used

1шт.

1

178911A1

HOUSING

BODY transmission control valve, casting stamped 4644-406-526, if used

1шт.

1

185437A1

HOUSING

BODY transmission control valve, casting stamped 4644-406-560, if used

1шт.

2

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

5шт.

3

S300554

LARGE PLATE

PLATE, LARGE support, solenoid valve

5шт.

4

S300530

SHIM,5.5mm ID x 13mm OD x 2mm Thk

Washer flat, special

5шт.

5

100356A1

VALVE

solenoid

5шт.

6

100349A1

PISTON

SPOOL small, number 1 bore

2шт.

7

S300540

COMPRESSION SPRING

spool, number 1 spool

3шт.

8

100350A1

PISTON

SPOOL large, number 1 bore

1шт.

9

100348A1

LARGE PLATE

PLATE, LARGE SEAT spring

1шт.

10

S300552

BALL

valve

10шт.

11

100352A1

PISTON

SPOOL valve, number 2 bore

1шт.

12

S300540

COMPRESSION SPRING

spool, number 2 bore

1шт.

13

100346A1

PISTON

PLUNGER valve, number 2 bore, used in 100334A1 and 178911A1 transmission control valve body only

1шт.

13

129805A1

PISTON

PLUNGER valve, number 2 bore, used in 185437A1 transmission control valve body only

1шт.

13a

129806A1

WASHER

special, if used, L129883 transmission

1шт.

14

100347A1

COMPRESSION SPRING

plunger, number 2 bore

1шт.

15

100342A1

PISTON

PLUNGER valve, number 3 bore

1шт.

16

100343A1

COMPRESSION SPRING

SPRING - number 3 bore, 77.1 mm long, 21.7 mm O.D.

1шт.

17

100344A1

COMPRESSION SPRING

SPRING - number 3 bore, 124.1 MM long, 10.9 mm O.D.

1шт.

18

100345A1

PISTON

valve, number 3 bore

1шт.

19

100335A1

COMPRESSION SPRING

spool, number 4 bore

1шт.

20

100337A1

SHIM

SHIM spring tension

2шт.

21

100336A1

PISTON

SPOOL valve, number 4 bore, used in 100334A1 transmission control valve body only

1шт.

21a

178912A1

PISTON

SPOOL valve, number 4 bore, used in 178911A1 and 185437A1 transmission control valve body only

1шт.

22

100353A1

PISTON

SPOOL valve, number 5 bore

1шт.

23

S300540

COMPRESSION SPRING

spool, number 5 bore

1шт.

24

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

L129883 transmission

2шт.

24

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

114363A1 Transmission

2шт.

25

100355A1

LARGE PLATE

PLATE, LARGE support, reducing valve

1шт.

26

S300550

COMPRESSION SPRING

compression, reducing valve

1шт.

27

100354A1

VALVE

reducing

1шт.

28

934164R1

PLUG,Hex Soc, M18 x 1.5

hex socket, special, 18 mm - 1.5, valve

2шт.

29

106970A1

SEALING RING

plug, Replaces: S300495

2шт.

30

E135132

SPRING

valve

2шт.

31

E135050

BALL

check, 16 mm OD

2шт.

32

A52230

PLUG

hex socket, 10 mm - 1

7шт.

33

S300491

O-RING,8mm ID x 1.5mm Width

plug

7шт.

34

100338A1

PORT

PLUG orifice, 0.60 mm, if used

1шт.

34

129801A1

PORT

PLUG orifice, 0.65 mm, if used

1шт.

34

100339A1

PORT

PLUG orifice, 0.70 mm, if used

1шт.

34

129802A1

PORT

PLUG orifice, 0.75 mm, if used

1шт.

34

100340A1

PORT

PLUG orifice, 0.80 mm, if used

1шт.

34

129803A1

PORT

PLUG orifice, 0.85 mm, if used

1шт.

34

185121A1

JET

PLUG orifice, 0.95 mm, if used

1шт.

34

129804A1

PORT

PLUG orifice, if used

1шт.

35

S300491

O-RING,8mm ID x 1.5mm Width

plug, large

1шт.

36

100341A1

O-RING,6mm ID x 1.5mm Width

plug, small

1шт.

37

185461A1

REDUCER

VALVE, used in 185437A1 transmission control valve body only

1шт.

38

185462A1

RING, SNAP

RING SNAP transmission control valve, used in 185437A1 transmission control valve body only

1шт.

39

185463A1

LARGE PLATE

PLATE, LARGE fixing, used in 185437A1 transmission control valve body only

1шт.

40

185438A1

PLUG

SLEEVE threaded

1шт.
