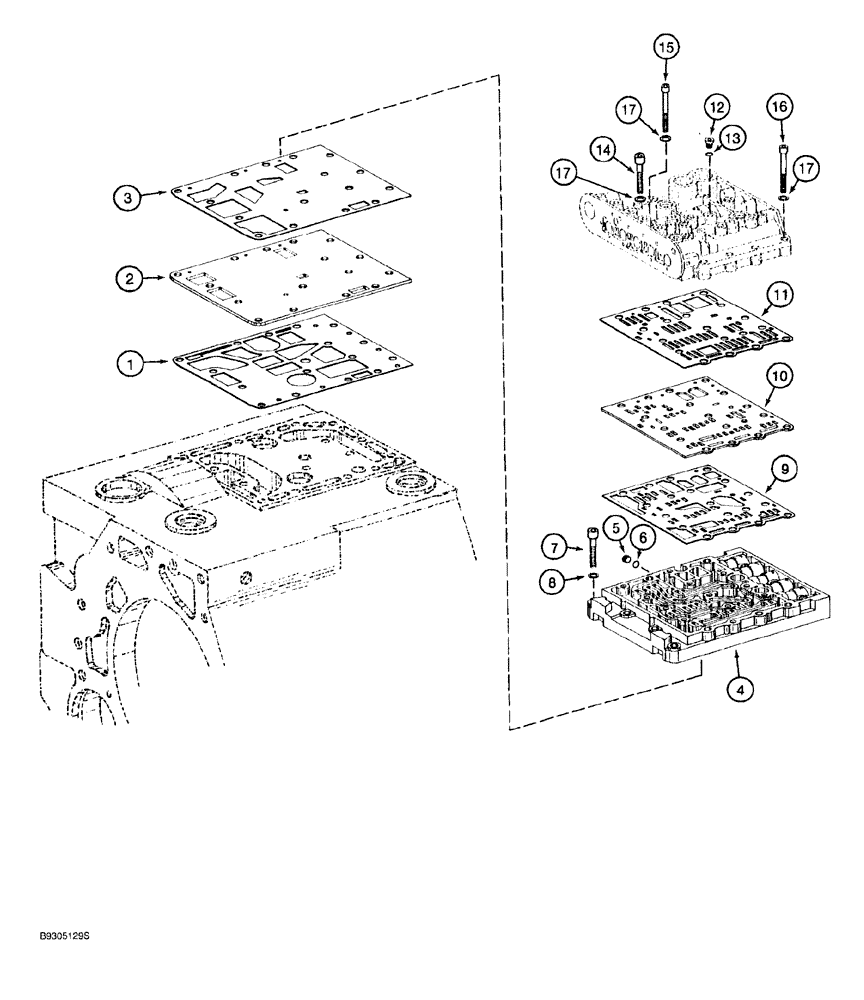

Запчасти Case 921 (6-054) - TRANSMISSION ASSEMBLY, VALVE PLATES (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: Ref. 1 - 17, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 17, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

100324A1

GASKET

plate, at transmission housing

1шт.

2

106945A1

COVER

PLATE valve, transmission housing to channel plate, Replaces: 103611A1

1шт.

3

103612A1

GASKET,0.35mm Thk

valve plate, to channel plate

1шт.

4

103613A1

LARGE PLATE

PLATE, LARGE hydraulic, Serial Range: channel,-valve

1шт.

5

A52230

PLUG

hex socket, 10 mm - 1

1шт.

6

S300491

O-RING,8mm ID x 1.5mm Width

plug

1шт.

7

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

11шт.

8

934033R1

WASHER,M8 x 15 x 2

flat, special, L129883

11шт.

8

934033R1

WASHER,M8 x 15 x 2

flat, special, 114363A1

11шт.

9

103614A1

GASKET

at channel plate to valve plate, L129883

1шт.

9

129790A1

GASKET,0.4mm Thk

at channel plate to valve plate, 114363A1

1шт.

10

100329A1

PLATE

valve, channel plate to control valve, L129883

1шт.

10

129791A1

COVER

PLATE valve, channel plate to control valve, 114363A1

1шт.

11

103616A1

GASKET,0.35mm Thk

at control valve to valve plate

1шт.

12

A52230

PLUG

hex socket, 10 mm - 1

1-2шт.

13

S300491

O-RING,8mm ID x 1.5mm Width

plug

1-2шт.

14

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

11шт.

15

864-8060

HEX SOC SCREW,M8 x 60mm, Cl 8.8

BOLT hex socket, 8 - 1.25 x 60 mm, L129883

1шт.

15

100332A1

SCREW

BOLT hex socket, special, 8 - 1.25 x 60 mm, 114363A1

1шт.

16

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

BOLT hex socket, 8 - 1.25 x 65 mm, L129883

5шт.

16

100331A1

SCREW

BOLT hex socket, special, 8 - 1.25 x 65 mm, 114363A1

5шт.

17

934033R1

WASHER,M8 x 15 x 2

flat, special, L129883

6шт.

17

934033R1

WASHER,M8 x 15 x 2

flat, special, 114363A1

17шт.
