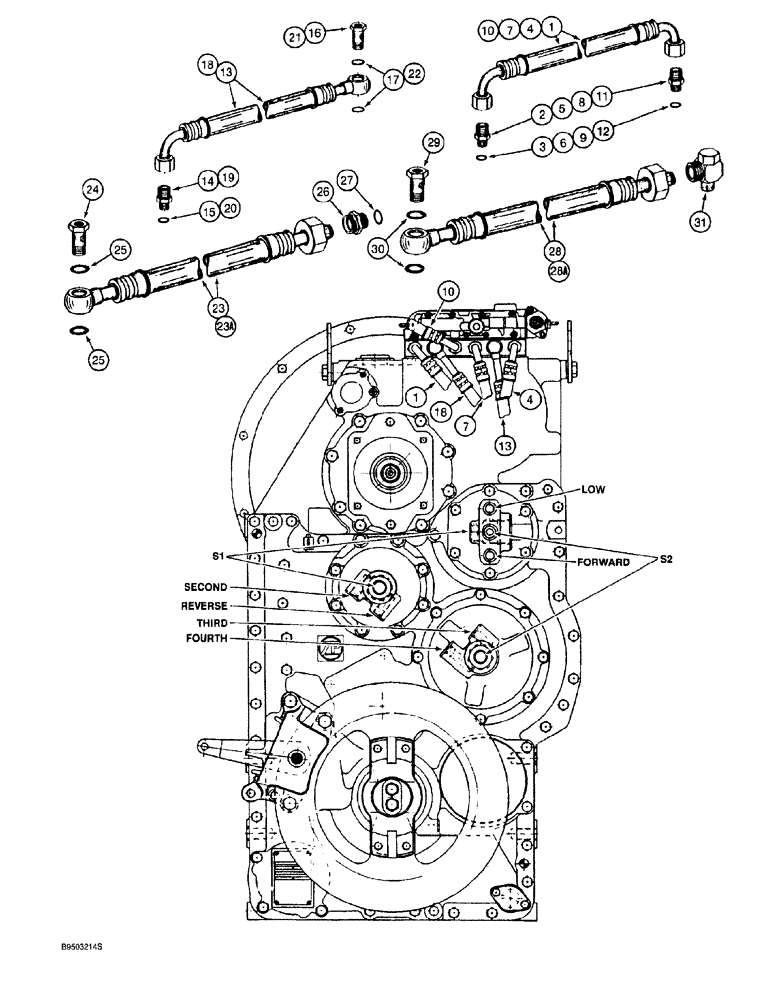

Запчасти Case 921 (6-052) - TRANSMISSION ASSEMBLY, CLUTCH LUBRICATION HOSES (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: Ref. 1 - 31, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 31, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

184217A1

HOSE

25-3/16 inch (640 mm) long, reverse clutch, Replaces: S301936

1шт.

2

100378A1

FITTING

ADAPTER straight

2шт.

3

S301617

O-RING,2mm Thk x 13mm ID

O-RING adapter

2шт.

4

100379A1

HOSE,825.00 mm

second clutch

1шт.

5

100378A1

FITTING

ADAPTER straight

2шт.

6

S301617

O-RING,2mm Thk x 13mm ID

O-RING adapter

2шт.

7

S301938

HOSE

24-1/16 inch (610 mm) long, third clutch

1шт.

8

100378A1

FITTING

ADAPTER straight

2шт.

9

S301617

O-RING,2mm Thk x 13mm ID

O-RING adapter

2шт.

10

S301939

HOSE

32-1/2 inch (825 mm) long, fourth clutch

1шт.

11

100378A1

FITTING

ADAPTER straight

2шт.

12

S301617

O-RING,2mm Thk x 13mm ID

O-RING adapter

2шт.

13

100430A1

HOSE

17-3/4 inch (450 mm) long, low clutch

1шт.

14

100378A1

FITTING

ADAPTER straight

1шт.

15

S301617

O-RING,2mm Thk x 13mm ID

O-RING adapter

1шт.

16

100376A1

BANJO BOLT,Hex, M12 x 1.25 x 28mm

BOLT hex hollow, special

1шт.

17

100377A1

SEALING RING,16mm ID x 22mm OD x 1.5mm

O-RING hollow bolt

2шт.

18

S301934

HOSE

24-7/8 inch (630 mm) long, forward clutch

1шт.

19

100378A1

FITTING

ADAPTER straight

1шт.

20

S301617

O-RING,2mm Thk x 13mm ID

O-RING adapter

1шт.

21

100376A1

BANJO BOLT,Hex, M12 x 1.25 x 28mm

BOLT hex hollow, special

1шт.

22

100377A1

SEALING RING,16mm ID x 22mm OD x 1.5mm

O-RING hollow bolt

2шт.

23

S301932

HOSE

33-11/16 inch (855 mm) long, low and forward clutches to second and reverse clutches, S1 port, if used

1шт.

23a

185574A1

HOSE

27-1/2 inch (700 mm) long, low and forward clutches to second and reverse clutches, S1 port, if used

1шт.

24

S301931

BANJO BOLT

BOLT hex hollow, special

1шт.

25

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

hollow bolt, Replaces: 717183R1 or E135040

2шт.

26

S301942

FITTING

ADAPTER straight, special

1шт.

27

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

adapter

1шт.

28

S301932

HOSE

33-11/16 inch (855 mm) long, low and forward clutches to third and fourth clutches, S2 port, if used

1шт.

28a

185574A1

HOSE

27-1/2 inch (700 mm) long, low and forward clutches to third and fourth clutches, S2 port, if used

1шт.

29

S301931

BANJO BOLT

BOLT hex hollow, special

1шт.

30

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

hollow bolt, Replaces: 717183R1 or E135040

2шт.

31

S301941

FITTING

UNION special

1шт.
