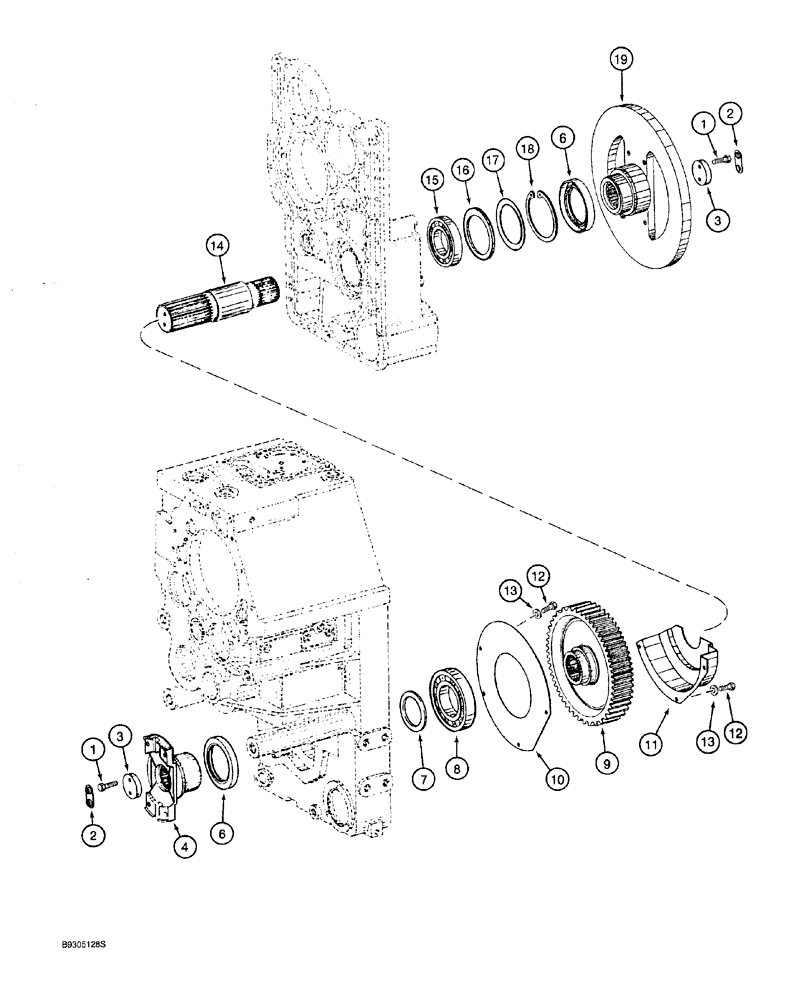

Запчасти Case 921 (6-050) - TRANSMISSION ASSEMBLY 114363A1, OUTPUT SHAFT AND GEAR (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 19, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

100096A1

SCREW

hex, special, 10 - 1.5 x 35 mm

4шт.

2

E135165

PLATE

PLATE, LARGE locking

2шт.

3

S301893

WASHER

RETAINER flange

2шт.

4

S301892

JAW

YOKE output, rear

1шт.

6

129757A1

SEAL,95mm ID x 120mm OD x 12mm Thk

oil, flange

2шт.

7

129749A1

SHIM

65.1 ID x 80 OD x 3.0 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129748A1

SHIM

65.1 ID x 80 OD x 2.5 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129756A1

SHIM

65.1 ID x 80 OD x 2.4 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129755A1

SHIM

65.1 ID x 80 OD x 2.3 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129754A1

SHIM

65.1 ID x 80 OD x 2.2 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129751A1

SHIM

65.1 ID x 80 OD x 2.1 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129747A1

SHIM

65.1 ID x 80 OD x 2.0 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129746A1

SHIM

65.1 ID x 80 OD x 1.9 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129745A1

SHIM

65.1 ID x 80 OD x 1.8 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129744A1

SHIM

65.1 ID x 80 OD x 1.7 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129742A1

SHIM

65.1 ID x 80 OD x 1.6 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129741A1

SHIM

65.1 ID x 80 OD x 1.5 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129740A1

SHIM

65.1 ID x 80 OD x 1.4 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129739A1

SHIM

65.1 ID x 80 OD x 1.3 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129738A1

SHIM

65.1 ID x 80 OD x 1.2 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129737A1

SHIM

65.1 ID x 80 OD x 1.1 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

7

129736A1

SHIM

65.1 ID x 80 OD x 1.0 mm thick

1шт.

Prints are not available at time of printing to show accurate location of Ref. 7 shim.

1шт.

8

S301887

ROLLER BEARING,80 mm ID x 140 mm OD x 26 mm

roller, rear output yoke

1шт.

9

100251A1

GEAR

output

1шт.

10

100074A1

COVER

PLATE output gear

1шт.

11

100075A1

COVER

output gear

1шт.

12

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT hex, 8 - 1.25 x 16 mm

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

100247A1

SHAFT

output

1шт.

15

S301895

BALL BEARING,65 mm ID x 120 mm OD x 23 mm

ball, front output yoke

1шт.

16

S301896

WASHER

flat, special, used as spacer

1шт.

17

E135093

SHIM,100mm ID x 119.8mm OD x 1.8mm Thk

1шт.

17

E135096

SHIM,100mm ID x 119.8mm OD x 1.5mm Thk

1шт.

17

E135095

SHIM,1.6mm Thk

1шт.

17

E135094

SHIM,100mm ID x 119.8mm OD x 1.7mm Thk

1шт.

17

S301086

SHIM,0.2mm Thk

1шт.

17

S300473

SHIM,0.3mm Thk

1шт.

17

S300474

SHIM,0.5mm Thk

1шт.

17

185061A1

SHIM

1.0 mm thick

1шт.

17

185062A1

SHIM

1.1 mm thick

1шт.

17

185063A1

SHIM

1.2 mm thick

1шт.

17

185064A1

SHIM

1.3 mm thick

1шт.

17

185065A1

SHIM,100mm ID x 119.83mm OD x 1.4mm Thk

1.4 mm thick

1шт.

18

S300472

CIRCLIP

RING snap, bearing retaining

1шт.

19

100303A1

BRAKE DISC

DISC, BRAKE YOKE output flange, parking brake, front, see Figure 7-002

1шт.
