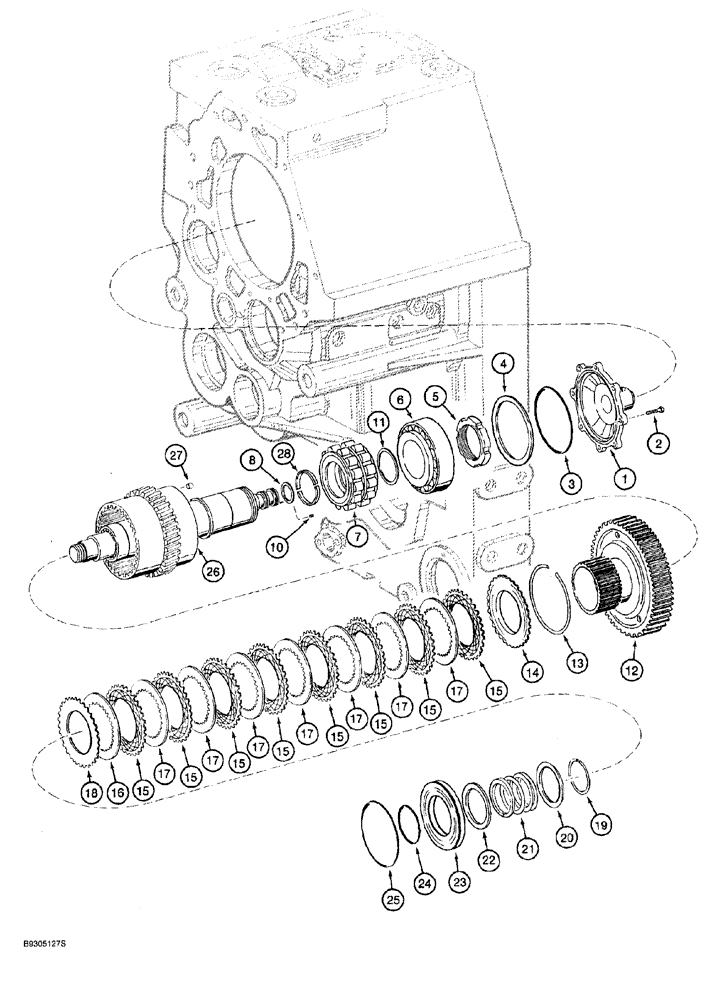

Запчасти Case 921 (6-048) - TRANSMISSION ASSEMBLY 114363A1, THIRD GEAR AND CLUTCH (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 28, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

100261A1

HOUSING

COVER end, third clutch

1шт.

2

100438A1

SCREW

BOLT hex, special, 10 mm - 1.5 x 30 mm

8шт.

3

100262A1

O-RING,3mm Thk x 192mm ID, 70 Duro

end cover

1шт.

4

100380A1

SHIM

1.0 mm, if used

1шт.

4

100381A1

SHIM

1.1 mm, if used

1шт.

4

100382A1

SHIM

1.2 mm, if used

1шт.

4

100383A1

SHIM

1.3 mm, if used

1шт.

4

100384A1

SHIM

1.4 mm, if used

1шт.

4

100385A1

SCREW

SHIM 1.5 mm, if used

1шт.

4

100386A1

SHIM

1.6 mm, if used

1шт.

4

100387A1

SHIM

1.7 mm, if used

1шт.

4

100388A1

WASHER

SHIM 1.8 mm, if used

1шт.

4

100389A1

SHIM

1.9 mm, if used

1шт.

4

100390A1

SHIM

2.0 mm, if used

1шт.

5

129722A1

SLOTTED NUT

special, slotted

1шт.

6

129688A1

ROLLER BEARING

tapered roller, includes cup

1шт.

7

129687A1

ROLLER BEARING,92.2 mm ID x 163 mm OD x 66 mm

roller

1шт.

8

100249A1

CIRCLIP

piston, small, third clutch

3шт.

10

100133A1

SCREW,Pan, M5 x 35mm, Class 4.8

set, special, shaft

2шт.

11

100248A1

OIL SEAL

RING piston, large, fourth clutch, if used

1шт.

12

100257A1

GEAR

third clutch

1шт.

13

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

14

129657A1

NOTCHED DISK

PLATE backing

1шт.

15

129658A1

DISC

external teeth

8шт.

16

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

16

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

16

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

16

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

17

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

7шт.

18

129659A1

DISC

inner, external teeth

1шт.

19

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

20

100176A1

RING, SNAP

RING SNAP guide

1шт.

21

185382A1

SPRING

clutch, Replaces: 100146A1

1шт.

22

100145A1

WASHER

flat, use as spacer

1шт.

23

129654A1

PISTON

clutch

1шт.

24

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

25

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

26

129685A1

PINION CARRIER

fourth and third clutch, with shaft

1шт.

27

100136A1

VALVE

BREATHER clutch carrier

1шт.

28

129721A1

RING

RING carrier

1шт.
