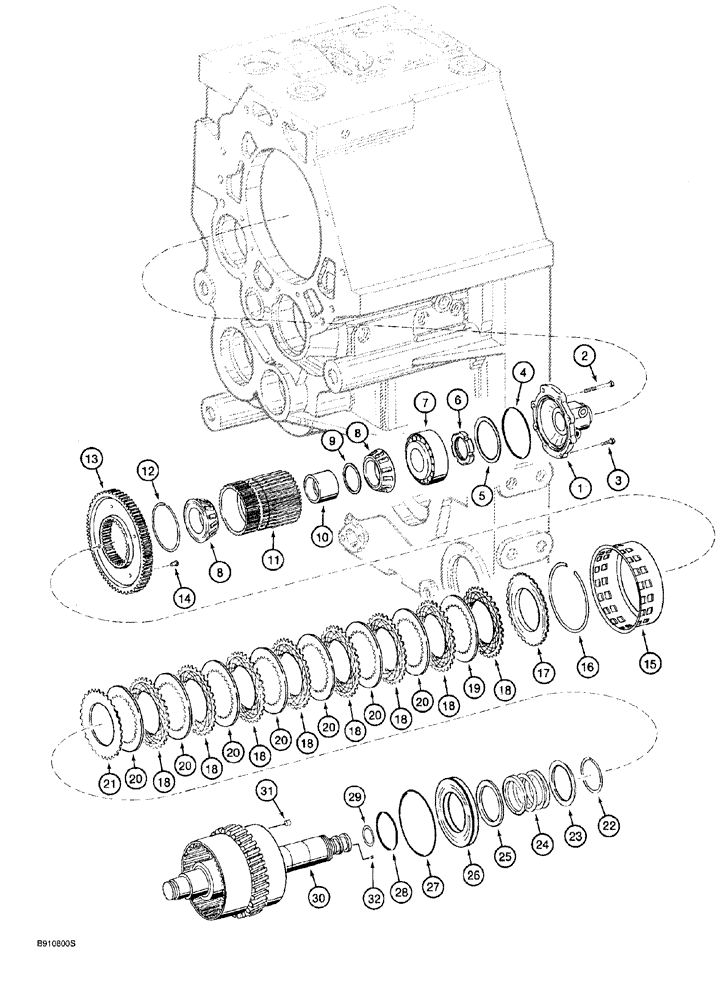

Запчасти Case 921 (6-044) - TRANSMISSION ASSEMBLY 114363A1, SECOND GEAR AND CLUTCH (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 32, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

100243A1

HOUSING

COVER end, second clutch

1шт.

2

100245A1

SCREW

BOLT hex, special, 10 - 1.5 x 90 mm

2шт.

3

100438A1

SCREW

BOLT hex, special, 10 mm - 1.5 x 30 mm

6шт.

4

100244A1

O-RING,138mm ID x 3mm Width

O-RING end cover

1шт.

5

100232A1

SHIM

1.0 mm, if used

1шт.

5

100233A1

SHIM

1.1 mm, if used

1шт.

5

100234A1

SHIM

1.2 mm, if used

1шт.

5

100235A1

SHIM

1.3 mm, if used

1шт.

5

100236A1

BLOCK

SHIM 1.4 mm, if used

1шт.

5

100237A1

BLOCK

SHIM 1.5 mm, if used

1шт.

5

100242A1

BLOCK

SHIM 2.0 mm, if used

1шт.

6

100223A1

SLOTTED NUT,M65 x 1.5

special, slotted

1шт.

7

100220A1

ROLLER BEARING,65.088mm ID x 135.755mm OD x 53.975mm

roller

1шт.

8

100212A1

ROLLER BEARING,66.675mm ID

tapered roller, use with Ref. 11

2шт.

9

100215A1

SHIM

3.6 mm, if used

1шт.

9

100217A1

BLOCK

SHIM 3.8 mm, if used

1шт.

9

100219A1

BLOCK

SHIM 4.0 mm, if used

1шт.

10

100213A1

BUSHING

bearing

1шт.

11

100211A1

GEAR

inner, internal bearing cups, use with Ref. 8

1шт.

12

129684A1

RING, SNAP

RING SNAP retaining, bearing

1шт.

129683A1

PINION

GEAR ASSEMBLY spur, outer, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR spur, outer

1шт.

14

NSS

NOT SOLD SEPARAT

HARDWARE special, gear to sensing ring

4шт.

15

NSS

NOT SOLD SEPARAT

RING speed sensing

1шт.

16

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

17

129657A1

NOTCHED DISK

PLATE backing

1шт.

18

129658A1

DISC

external teeth

8шт.

19

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

19

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

19

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

19

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

20

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

7шт.

21

129659A1

DISC

inner, external teeth

1шт.

22

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

23

100176A1

RING, SNAP

RING SNAP guide

1шт.

24

185382A1

SPRING

clutch, Replaces: 100146A1

1шт.

25

100145A1

WASHER

flat, use as spacer

1шт.

26

129654A1

PISTON

clutch

1шт.

27

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

28

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

29

100249A1

CIRCLIP

piston

3шт.

30

100254A1

PINION CARRIER

reverse and second clutch, Replaces: 100254A1, 184422A1

1шт.

31

100136A1

VALVE

BREATHER clutch carrier

1шт.

32

100133A1

SCREW,Pan, M5 x 35mm, Class 4.8

set, special

2шт.
