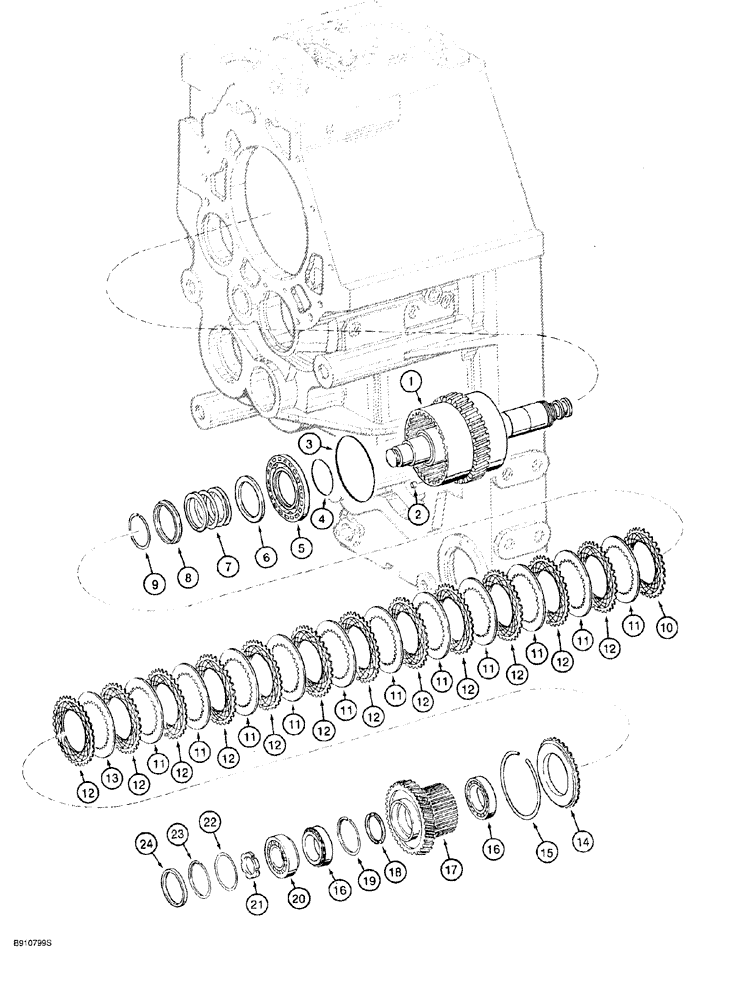

Запчасти Case 921 (6-042) - TRANSMISSION ASSEMBLY 114363A1, REVERSE GEAR AND CLUTCH (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 24, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

100254A1

PINION CARRIER

reverse and second clutch

1шт.

2

100136A1

VALVE

BREATHER clutch carrier

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

129654A1

PISTON

clutch

1шт.

6

100145A1

WASHER

flat, use as spacer

1шт.

7

185382A1

SPRING

clutch, Replaces: 100146A1

1шт.

8

100176A1

RING, SNAP

RING SNAP guide

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

129659A1

DISC

inner, external teeth

1шт.

11

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

11шт.

12

129658A1

DISC

external teeth

12шт.

13

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

13

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

13

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

13

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

14

129657A1

NOTCHED DISK

PLATE backing

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

tapered roller, includes cup, inner

2шт.

17

100177A1

GEAR

reverse clutch

1шт.

18

129670A1

BLOCK

SHIM 3.6 mm thick, if used

1шт.

18

129669A1

BLOCK

SHIM 3.8 mm thick, if used

1шт.

18

129668A1

BLOCK

SHIM 3.9 mm thick, if used

1шт.

18

129667A1

BLOCK

SHIM 4.0 mm thick, if used

1шт.

18

129665A1

BLOCK

SHIM 4.1 mm thick, if used

1шт.

18

129663A1

BLOCK

SHIM 4.2 mm thick, if used

1шт.

18

129662A1

BLOCK

SHIM 4.3 mm thick, if used

1шт.

18

129661A1

BLOCK

SHIM 4.4 mm thick, if used

1шт.

18

129660A1

CLUTCH DISC

CLUTCH DISK SHIM 4.5 mm thick, if used

1шт.

19

933078R1

SNAP RING,M110, Int

RING snap, inner

1шт.

20

100189A1

ROLLER BEARING,50.8mm ID x 112.712mm OD x 30.162mm

tapered roller, includes cup, outer

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

special, slotted

1шт.

22

129682A1

SEALING RING

SEALRING ring

1шт.

23

100206A1

CIRCLIP

bearing retaining, outer

1шт.

24

100207A1

COVER

COVER end, reverse clutch

1шт.
