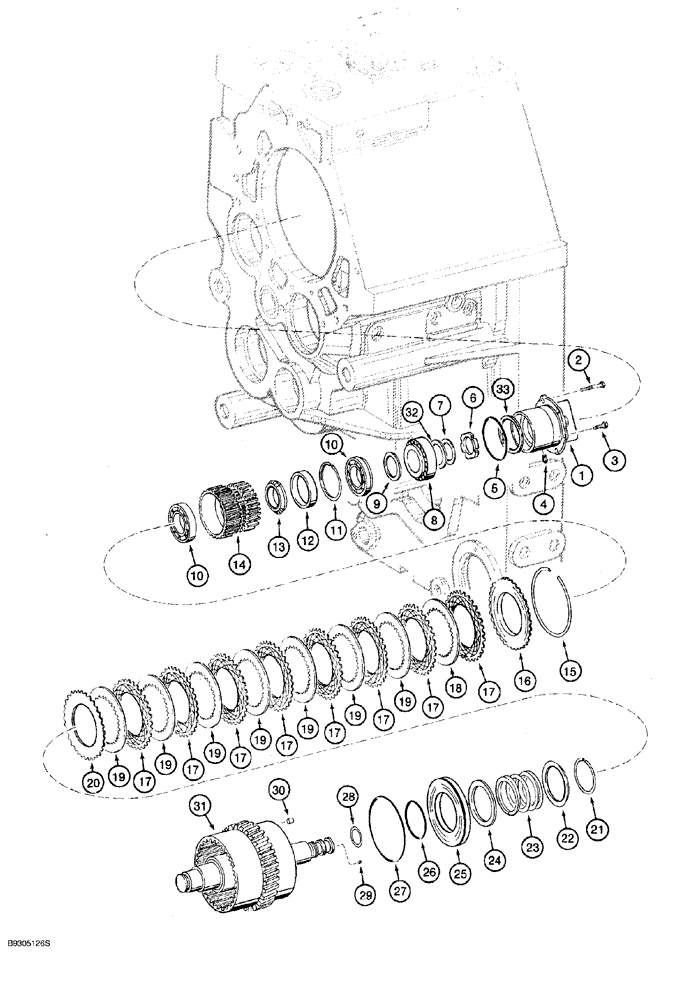

Запчасти Case 921 (6-040) - TRANSMISSION ASSEMBLY 114363A1, LOW GEAR AND CLUTCH (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 33, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

129680A1

COVER

end, low clutch

1шт.

2

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

3

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

4

3140880R1

PLUG

special, slotted, end cover

2шт.

5

100175A1

O-RING,122mm ID x 3mm Width

O-RING end cover

1шт.

6

110807A1

SLOTTED NUT

special, slotted

1шт.

7

100159A1

SPACER

bearing

1шт.

8

100172A1

ROLLER BEARING

tapered roller, outer, includes cup

1шт.

9

100154A1

SHIM

1.5 mm, if used

1шт.

10

100166A1

BALL BEARING,55mm ID x 100mm OD x 42mm

ball, inner

2шт.

11

S301572

CIRCLIP

1шт.

12

100169A1

SPACER

14.1 mm, if used

1шт.

12

100170A1

SPACER

14.2 mm, if used

1шт.

12

100171A1

SPACER

14.3 mm, if used

1шт.

13

100168A1

RING

RING lubrication

1шт.

14

100165A1

GEAR

low clutch

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

129657A1

NOTCHED DISK

PLATE backing

1шт.

17

129658A1

DISC

external teeth

8шт.

18

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

18

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

18

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

18

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

19

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

7шт.

20

129659A1

DISC

inner, external teeth

1шт.

21

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

22

100176A1

RING, SNAP

RING SNAP guide

1шт.

23

185382A1

SPRING

clutch, Replaces: 100146A1

1шт.

24

100145A1

WASHER

flat, use as spacer

1шт.

25

129654A1

PISTON

clutch

1шт.

26

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

27

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

28

100249A1

CIRCLIP

piston

3шт.

29

100133A1

SCREW,Pan, M5 x 35mm, Class 4.8

set, special

2шт.

30

100136A1

VALVE

BREATHER clutch carrier

1шт.

31

129653A1

PINION CARRIER

forward and low clutch

1шт.

32

129672A1

SHIM

2.0 mm, if used

1шт.

32

129673A1

SHIM

1.5 mm, if used

1шт.

32

129674A1

SHIM

1.2 mm, if used

1шт.

32

129675A1

SHIM

1.0 mm, if used

1шт.

32

129676A1

SHIM

0.9 mm, if used

1шт.

32

129677A1

SHIM

0.5 mm, if used

1шт.

32

129678A1

SHIM

0.3 mm, if used

1шт.

32

129679A1

SHIM

0.2 mm, if used

1шт.

33

129681A1

RING

RING spacer

1шт.
