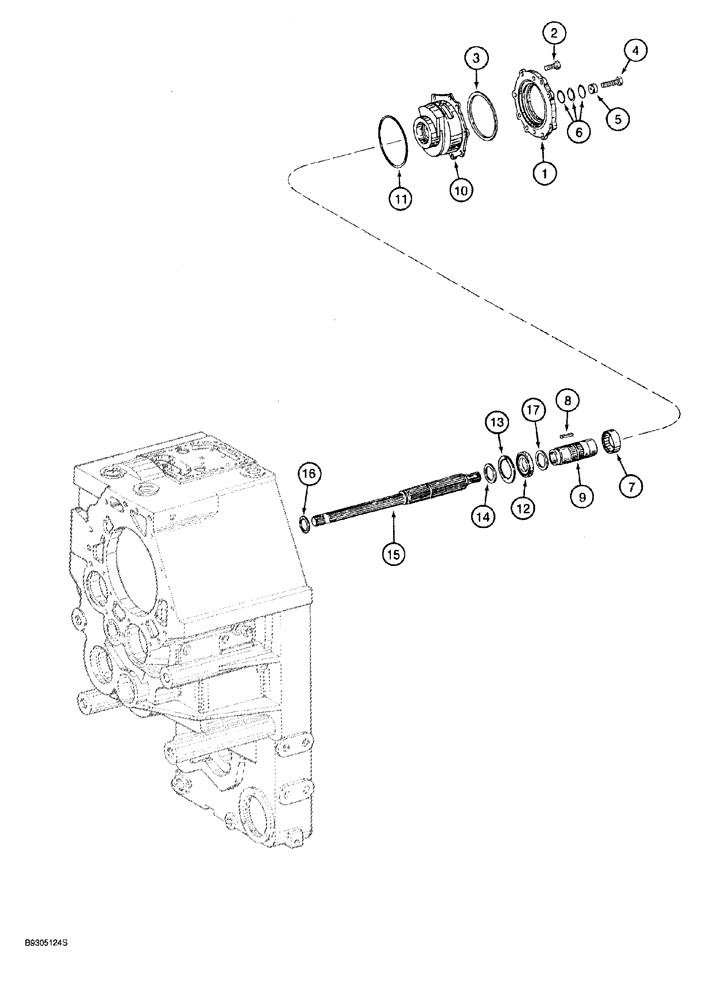

Запчасти Case 921 (6-036) - TRANSMISSION ASSEMBLY 114363A1, PUMP, OUTPUT GEAR AND SHAFT (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 17, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

S301881

FLANGE ASSY

pump

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

8шт.

3

S301880

O-RING,158mm ID x 2mm Width

flange

1шт.

4

100270A1

BOLT

hex, special, 10 - 1.5 x 25 mm

1шт.

5

S301879

SPACER

, Serial Range: bolt,-piston

1шт.

6

S301878

SNAP RING

piston

3шт.

7

100322A1

NEEDLE BEARING,50mm ID x 58mm OD x 20mm

needle

1шт.

8

100321A1

BUCKET TOOTH KEY

piston

1шт.

9

S301877

PISTON

pump

1шт.

10

129789A1

HYDRAULIC PUMP

gear

1шт.

11

100323A1

O-RING,160mm ID x 3mm Width

pump

1шт.

12

S301875

BALL BEARING

ball, pump

1шт.

13

100272A1

CIRCLIP

1шт.

14

S301876

WASHER

special, used as a spacer

1шт.

15

100269A1

SHAFT

output, pump

1шт.

16

S301874

RING

output shaft

1шт.

17

129779A1

WASHER

spacer, 2.0 mm, if used

1шт.

17

129780A1

WASHER

spacer, 0.5 mm, if used

1шт.

17

129781A1

WASHER

spacer, 0.3 mm, if used

1шт.

17

129782A1

WASHER

spacer, 0.1 mm, if used

1шт.

17

129784A1

WASHER

spacer, 0.2 mm, if used

1шт.

17

129785A1

WASHER

spacer, 1.5 mm, if used

1шт.
