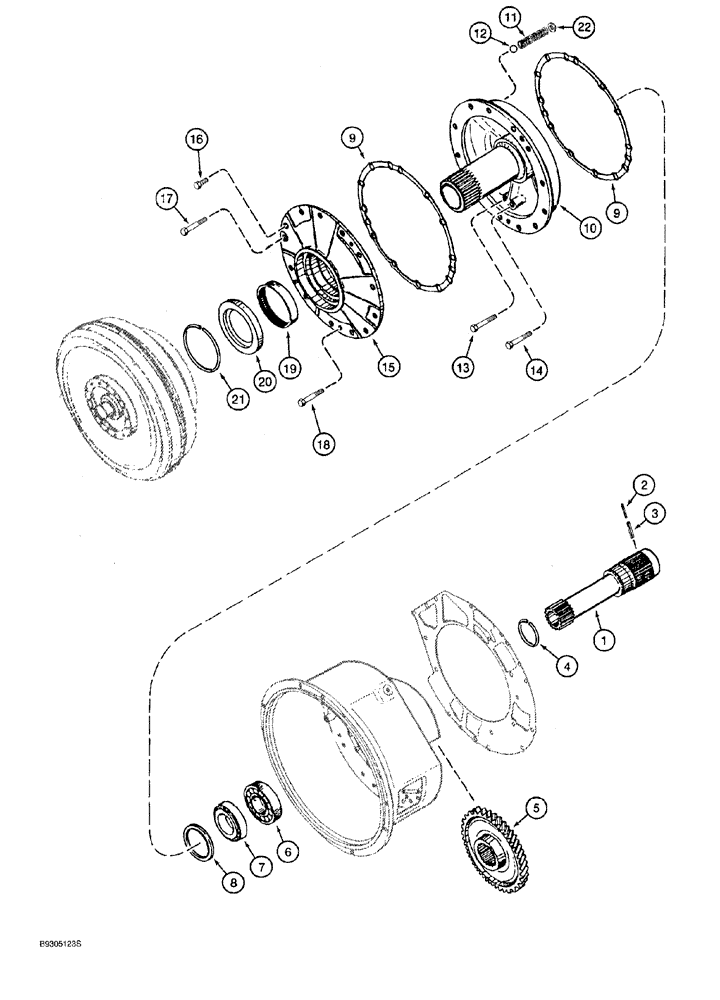

Запчасти Case 921 (6-034) - TRANSMISSION ASSEMBLY 114363A1, INPUT GEAR AND SHAFT (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 22, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

S301828

SHAFT

input, pump

1шт.

2

E135026

PIN,1.5mm OD x 5mm L, Slotted

roll, 1.5 mm OD x 5 mm

1шт.

3

E135028

PIN, SPLIT (COTTER)

PIN, COTTER roll, 2.5 mm OD x 5 mm

1шт.

4

S301831

PISTON RING

input shaft

1шт.

5

S301832

PINION

GEAR input

1шт.

6

S301833

ROLLER BEARING,55.562 mm ID x 97.63 mm OD x 24.608 mm

roller, gear end

1шт.

7

S301834

ROLLER BEARING,55 mm ID x 90 mm OD x 23 mm

roller, oil feed flange end

1шт.

8

S301837

BLOCK

SHIM 2.15 mm, if used

1шт.

8

S301838

BLOCK

SHIM 2.0 mm, if used

1шт.

8

S301842

BLOCK

SHIM 1.9 mm, if used

1шт.

8

S301844

BLOCK

SHIM 1.8 mm, if used

1шт.

8

S301846

BLOCK

SHIM 1.7 mm, if used

1шт.

8

S301850

BLOCK

SHIM 1.5 mm, if used

1шт.

8

S301852

BLOCK

SHIM 1.4 mm, if used

1шт.

8

S301856

BLOCK

SHIM 1.2 mm, if used

1шт.

8

S301858

BLOCK

SHIM 1.1 mm, if used

1шт.

8

S301859

BLOCK

SHIM 1.05 mm, if used

1шт.

8

S301860

BLOCK

SHIM 1.0 mm, if used

1шт.

8

S301861

BLOCK

SHIM .95 mm, if used

1шт.

8

S301862

BLOCK

SHIM .9 mm, if used

1шт.

8

S301863

BLOCK

SHIM .85 mm, if used

1шт.

9

127678A1

GASKET

oil feed flange

2шт.

10

S301864

FLANGE ASSY

oil feed

1шт.

11

100111A1

SPRING

compression, ball check

1шт.

12

100110A1

BALL

check

1шт.

13

100098A1

BOLT

hex, special, 12 - 1.75 x 60 mm, class 10.9

1шт.

14

185526A1

SCREW

BOLT hex, special, 12 - 1.75 x 55 mm, class 10.9, Replaces: 814-12055

1шт.

15

S301866

COVER

oil feed flange

1шт.

16

100096A1

SCREW

hex, special, 10 - 1.5 x 35 mm

12шт.

17

826-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

BOLT hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

18

100097A1

BOLT

hex, special, 12 - 1.75 x 95 mm, class 10.9

2шт.

19

S301867

NEEDLE BEARING,Needle, 90mm ID x 100mm OD x 16mm W

needle

1шт.

20

S301868

SEAL

SEALRING shaft

1шт.

21

100100A1

CIRCLIP

retaining

1шт.

22

S300786

SHIM,20mm ID x 28mm OD x 1mm Thk

adjusting, 20 x 28 x 1 mm

1шт.
