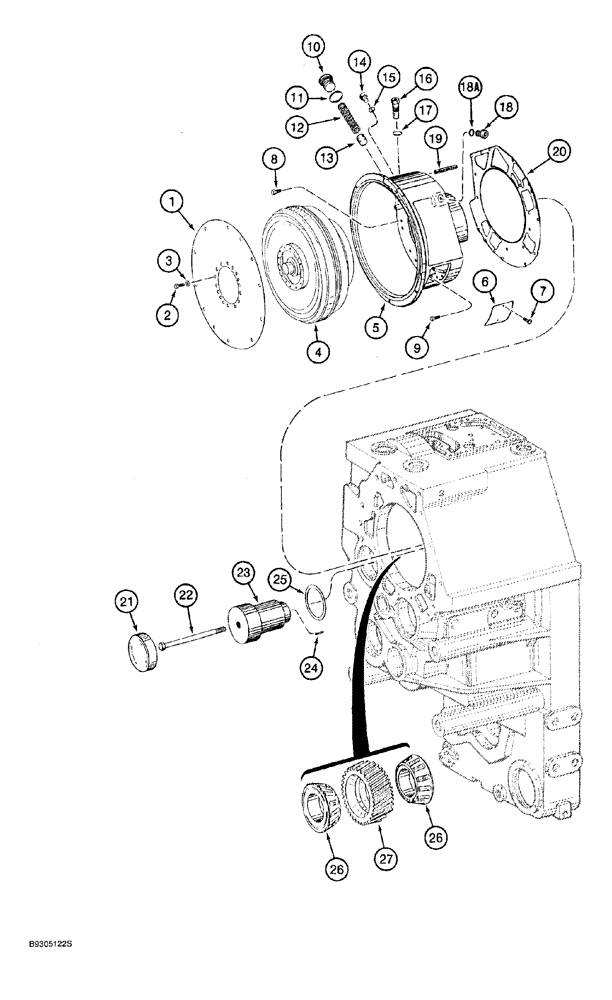

Запчасти Case 921 (6-032) - TRANSMISSION ASSEMBLY 114363A1, IDLER GEAR, CONVERTER AND COVER (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSY., new, Includes: Ref. 1 - 27, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number, Start Serial: JAK0026022

1шт.

1

S301901

LARGE PLATE

PLATE, LARGE converter

3шт.

2

111981A1

BOLT

hex, special

16шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

16шт.

4

S301827

CONVERTER

transmission

1шт.

4

8605376R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

4

8605376C

CORE-TORQUE CONVERTR

CORE-Torque Converter Return Number

1шт.

5

199174A1

BELL HOUSING

converter, Replaces: 129258A1, 185185A1

1шт.

6

S301826

LARGE PLATE

PLATE, LARGE converter

1шт.

7

S301491

STUD

grooved

2шт.

8

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

10шт.

9

100099A1

BOLT

hex, special, 8 - 1.25 x 30 mm, class 10.9

4шт.

10

E135077

PLUG,Hex, M36 x 1.5

hex socket, special

1шт.

11

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

plug

1шт.

12

100103A1

SPRING

compression

1шт.

13

100101A1

PISTON

converter housing

1шт.

14

100113A1

PLUG

hex, special, 10 x 1 mm

1шт.

15

100114A1

O-RING,8mm ID x 1.5mm Width

plug

1шт.

16

100112A1

ADAPTER

converter housing

1шт.

17

1968430C1

O-RING

adapter

1шт.

18

100087A1

PLUG

hex socket, special, 42 x 2 mm

2шт.

18a

A52096

O-RING,2.5mm Thk x 38mm ID

replaces A52372

2шт.

19

100105A1

PIN

roll, cover

1шт.

20

S301836

GASKET

housing

1шт.

21

100130A1

COVER

stub axle

1шт.

22

100127A1

BOLT

hex, special, 10 - 1.5 x 120 mm

1шт.

23

100128A1

AXLE

Stub, idler gear

1шт.

24

100129A1

SLOTTED PIN

Roll, stub axle

1шт.

25

100117A1

BLOCK

SHIM 1.0 mm, if used

1шт.

25

100118A1

BLOCK

SHIM 1.2 mm, if used

1шт.

25

100120A1

BLOCK

SHIM 2.0 mm, if used

1шт.

25

100121A1

BLOCK

SHIM 2.8 mm, if used

1шт.

25

100126A1

BLOCK

SHIM 3.3 mm, if used

1шт.

26

100116A1

ROLLER BEARING,60mm ID x 95mm OD x 23mm

tapered roller, use with Ref. 27

2шт.

27

127673A1

GEAR

GEAR reverse idler, internal bearing cups, use with Ref. 26

1шт.
