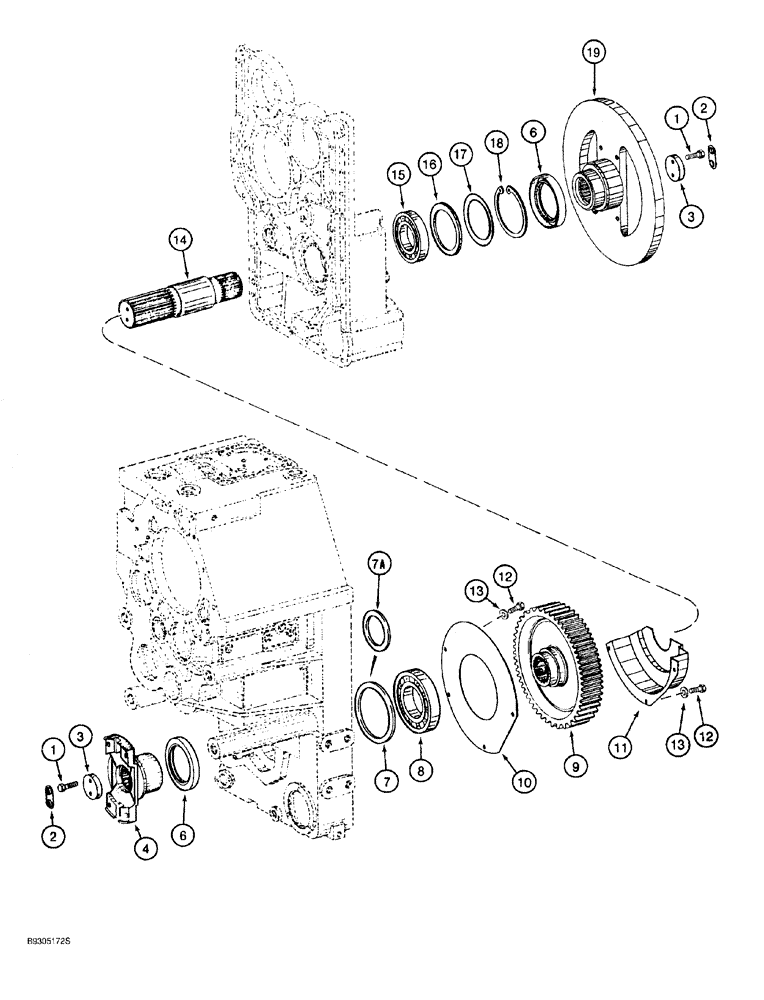

Запчасти Case 921 (6-028) - TRANSMISSION ASSEMBLY L129883, OUTPUT SHAFT AND GEAR (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: Ref. 1 - 19, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

1

100096A1

SCREW

hex, special, 10 - 1.5 x 35 mm

4шт.

2

E135165

PLATE

PLATE, LARGE locking

2шт.

3

S301893

WASHER

RETAINER flange

2шт.

4

S301892

JAW

YOKE output, rear

1шт.

6

129757A1

SEAL,95mm ID x 120mm OD x 12mm Thk

oil, flange

2шт.

7

3140604R1

SHIM

125 ID x 139.4 OD x 2.5 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

3140605R1

SHIM

125 ID x 139.4 OD x 2.4 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

3140606R1

SHIM

125 ID x 139.4 OD x 2.3 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

3148696R1

SHIM

125 ID x 139.4 OD x 2.2 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

3148697R1

SHIM

125 ID x 139.4 OD x 2.1 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

3148698R1

SHIM

125 ID x 139.4 OD x 2.0 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

3148699R1

SHIM

125 ID x 139.4 OD x 1.9 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

3148700R1

SHIM

125 ID x 139.4 OD x 1.8 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

S301888

SHIM,1.7mm Thk

(M125 ID x 139.4 OD)

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

S301889

SHIM,1.6mm Thk

(M125 ID x 139.4 OD)

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7

S301890

SHIM,1.5mm Thk

(M125 ID x 139.4 OD)

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129736A1

SHIM

65.1 ID x 80 OD x 1.0 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129737A1

SHIM

65.1 ID x 80 OD x 1.1 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129738A1

SHIM

65.1 ID x 80 OD x 1.2 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129739A1

SHIM

65.1 ID x 80 OD x 1.3 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129740A1

SHIM

65.1 ID x 80 OD x 1.4 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129741A1

SHIM

65.1 ID x 80 OD x 1.5 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129742A1

SHIM

65.1 ID x 80 OD x 1.6 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129744A1

SHIM

65.1 ID x 80 OD x 1.7 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129745A1

SHIM

65.1 ID x 80 OD x 1.8 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129746A1

SHIM

65.1 ID x 80 OD x 1.9 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129747A1

SHIM

65.1 ID x 80 OD x 2.0 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129748A1

SHIM

65.1 ID x 80 OD x 2.5 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129749A1

SHIM

65.1 ID x 80 OD x 3.0 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129751A1

SHIM

65.1 ID x 80 OD x 2.1 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129754A1

SHIM

65.1 ID x 80 OD x 2.2 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129755A1

SHIM

65.1 ID x 80 OD x 2.3 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

7a

129756A1

SHIM

65.1 ID x 80 OD x 2.4 mm thick

1шт.

Your transmission will use either Ref. 7 or 7A shims. The location of Ref. 7 has changed. Art is unavailable at time of printing to show correct location of Ref. 7 shim. Order shims according to ID and OD size.

1шт.

8

S301887

ROLLER BEARING,80 mm ID x 140 mm OD x 26 mm

roller, rear output yoke

1шт.

9

100251A1

GEAR

output

1шт.

10

100074A1

COVER

PLATE output gear

1шт.

11

100075A1

COVER

output gear

1шт.

12

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT hex, 8 - 1.25 x 16 mm

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

100247A1

SHAFT

output

1шт.

15

S301895

BALL BEARING,65 mm ID x 120 mm OD x 23 mm

ball, front output yoke

1шт.

16

S301896

WASHER

flat, special, used as spacer

1шт.

17

E135093

SHIM,100mm ID x 119.8mm OD x 1.8mm Thk

1шт.

17

E135096

SHIM,100mm ID x 119.8mm OD x 1.5mm Thk

1шт.

17

E135095

SHIM,1.6mm Thk

1шт.

17

E135094

SHIM,100mm ID x 119.8mm OD x 1.7mm Thk

1шт.

17

S301086

SHIM,0.2mm Thk

1шт.

17

S300473

SHIM,0.3mm Thk

1шт.

17

S300474

SHIM,0.5mm Thk

1шт.

17

185061A1

SHIM

1.0 mm thick

1шт.

17

185062A1

SHIM

1.1 mm thick

1шт.

17

185063A1

SHIM

1.2 mm thick

1шт.

17

185064A1

SHIM

1.3 mm thick

1шт.

17

185065A1

SHIM,100mm ID x 119.83mm OD x 1.4mm Thk

1.4 mm thick

1шт.

18

S300472

CIRCLIP

RING snap, bearing retaining

1шт.

19

100303A1

BRAKE DISC

DISC, BRAKE YOKE output flange, parking brake, front, see Figure 7-002

1шт.
