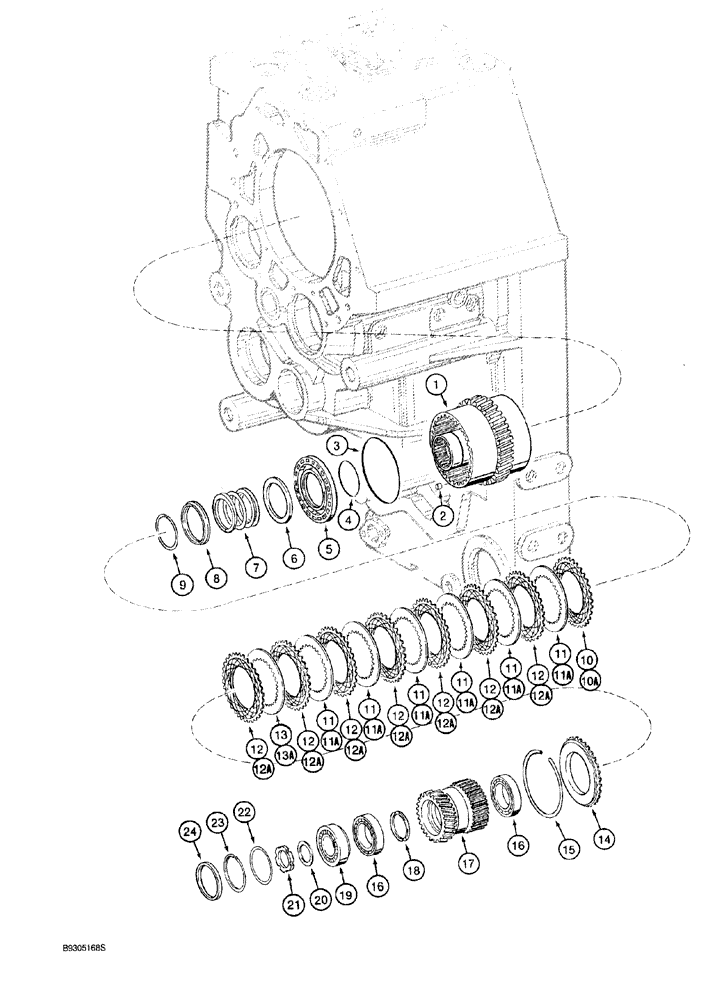

Запчасти Case 921 (6-024) - TRANSMISSION ASSEMBLY L129883, FOURTH GEAR AND CLUTCH (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: Ref. 1 - 24, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

1

100250A1

CARRIER

fourth and third clutch, see Figure 6-026, Ref. 9, for shaft, if used

1шт.

1a

129685A1

PINION CARRIER

fourth and third clutch, with shaft, replaces Ref. 1 above and Ref. 9, Figure 6-026, not shown, see Figure 6-28 for illustration

1шт.

2

100136A1

VALVE

BREATHER clutch carrier

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

100137A1

PISTON

clutch, see Figure 6-026, Ref. 11, for piston ring

1шт.

6

100145A1

WASHER

flat, use as spacer

1шт.

7

185382A1

SPRING

clutch, Replaces: 100146A1

1шт.

8

100176A1

RING, SNAP

RING SNAP guide

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

S301873

DISC

inner, external teeth, used with Ref. 11,12, 13

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

10a

129659A1

DISC

inner, external teeth, used with Ref. 11A, 12A, 13A

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

11

S301869

DISC

internal teeth, 132.3 ID x 187 OD x 2.5 mm

6шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

11a

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

6шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

12

S301872

DISC

external teeth, used with Ref. 10, 11, 13

7шт.

12a

129658A1

DISC

external teeth, used with Ref. 10A, 11A, 13A

7шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301869

DISC

internal teeth, 132.3 ID x 187 OD x 2.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301870

DISC

internal teeth, 132.3 ID x 187 OD x 3.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301871

DISC

internal teeth, 132.3 ID x 187 OD x 3.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

14

100144A1

LARGE PLATE

PLATE, LARGE backing

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

100152A1

BALL BEARING,65mm ID x 100mm OD x 18mm

ball, inner

2шт.

17

100252A1

GEAR

fourth clutch

1шт.

18

100253A1

SPACER

ball bearings

1шт.

19

129671A1

ROLLER BEARING

tapered roller, includes cup, outer, includes cup, Replaces: 100158A1

1шт.

20

100159A1

SPACER

bearing

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

special, slotted, Replaces: 110807A1

1шт.

22

100163A1

SEALING RING

SEALRING

1шт.

23

100164A1

RING, SNAP

RING SNAP bearing retaining

1шт.

24

100161A1

COVER

end, fourth clutch

1шт.
