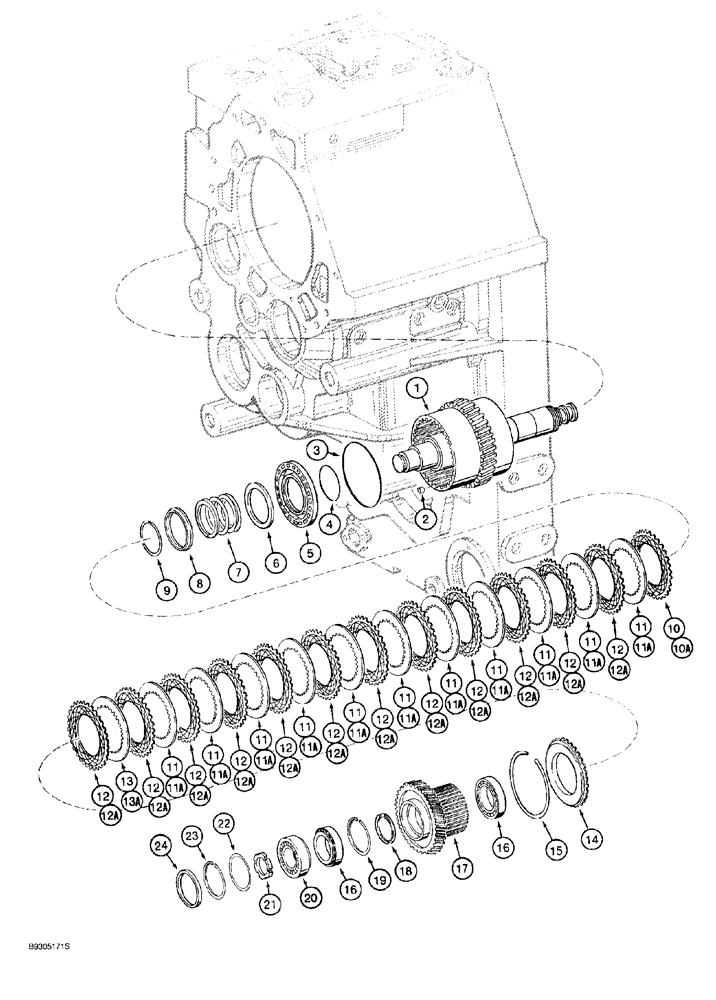

Запчасти Case 921 (6-020) - TRANSMISSION ASSEMBLY L129883, REVERSE GEAR AND CLUTCH (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: Ref. 1 - 24, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

1

185141A1

PINION CARRIER

reverse and second clutch, Replaces: 100254A1, 184422A1

1шт.

2

100136A1

VALVE

BREATHER clutch carrier

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

129654A1

PISTON

clutch, Replaces: 100137A1

1шт.

6

100145A1

WASHER

flat, use as spacer

1шт.

7

185382A1

SPRING

clutch, Replaces: 100146A1

1шт.

8

100176A1

RING, SNAP

RING SNAP guide

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

S301873

DISC

inner, external teeth, used with Ref. 11,12, 13

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

10a

129659A1

DISC

inner, external teeth, used with Ref. 11A, 12A, 13A

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

11

S301869

DISC

internal teeth, 132.3 ID x 187 OD x 2.5 mm, if used

11шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

11a

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

11шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

12

S301872

DISC

external teeth, used with Ref. 10, 11, 13

12шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

12a

129658A1

DISC

external teeth, used with Ref. 10A, 11A, 13A

12шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301869

DISC

internal teeth, 132.3 ID x 187 OD x 2.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301870

DISC

internal teeth, 132.3 ID x 187 OD x 3.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301871

DISC

internal teeth, 132.3 ID x 187 OD x 3.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

14

100144A1

LARGE PLATE

PLATE, LARGE backing, Replaces: 100144A1

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

tapered roller, inner, includes cup

2шт.

17

100177A1

GEAR

reverse clutch

1шт.

18

129670A1

BLOCK

SHIM 3.6 mm thick, if used

1шт.

18

129669A1

BLOCK

SHIM 3.8 mm thick, if used

1шт.

18

129668A1

BLOCK

SHIM 3.9 mm thick, if used

1шт.

18

129667A1

BLOCK

SHIM 4.0 mm thick, if used

1шт.

18

129665A1

BLOCK

SHIM 4.1 mm thick, if used

1шт.

18

129663A1

BLOCK

SHIM 4.2 mm thick, if used

1шт.

18

129662A1

BLOCK

SHIM 4.3 mm thick, if used

1шт.

18

129661A1

BLOCK

SHIM 4.4 mm thick, if used

1шт.

18

129660A1

CLUTCH DISC

CLUTCH DISK SHIM 4.5 mm thick, if used

1шт.

19

933078R1

SNAP RING,M110, Int

RING snap, inner

1шт.

20

100189A1

ROLLER BEARING,50.8mm ID x 112.712mm OD x 30.162mm

tapered roller, includes cup, outer

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

special, slotted

1шт.

22

129682A1

SEALING RING

SEALRING ring

1шт.

23

100206A1

CIRCLIP

bearing retaining, outer

1шт.

24

100207A1

COVER

COVER end, reverse clutch

1шт.
