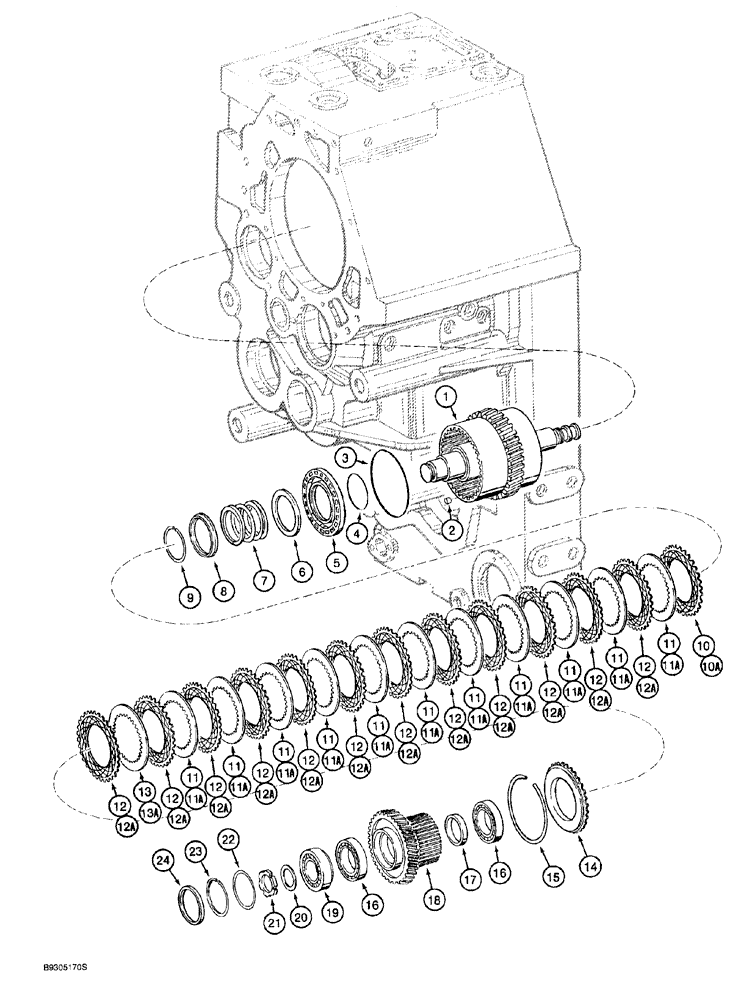

Запчасти Case 921 (6-016) - TRANSMISSION ASSEMBLY L129883, FORWARD GEAR AND CLUTCH (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: Ref. 1 - 24, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

1

100135A1

HOUSING

CARRIER forward and low clutch

1шт.

2

100136A1

VALVE

BREATHER clutch carrier

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

100137A1

PISTON

clutch

1шт.

6

100145A1

WASHER

flat, use as spacer

1шт.

7

185382A1

SPRING

clutch, Replaces: 100146A1

1шт.

8

100176A1

RING, SNAP

RING SNAP guide

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

S301873

DISC

inner, external teeth, used with Ref. 11, 12, 13

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

10a

129659A1

DISC

inner, external teeth, used with Ref. 11A, 12A, 13A

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

11

S301869

DISC

internal teeth, 132.3 ID x 187 OD x 2.5 mm, if used

11шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

11a

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

11шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

12

S301872

DISC

external teeth, used with Ref. 10, 11, 13

12шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

12a

129658A1

DISC

external teeth, used with Ref. 10A, 11A, 13A

12шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301869

DISC

internal teeth, 132.3 ID x 187 OD x 2.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301870

DISC

internal teeth, 132.3 ID x 187 OD x 3.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13

S301871

DISC

internal teeth, 132.3 ID x 187 OD x 3.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

13a

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm

1шт.

Replace individual internal tooth discs according to the OD of the disc removed. If ordering a complete set, order all internal tooth discs with identical OD's. See comment after description for which external tooth discs to use.

1шт.

14

100144A1

LARGE PLATE

PLATE, LARGE backing

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

185533A1

BALL BEARING,65 mm ID x 100 mm OD x 18 mm

ball, inner, Replaces: 100152A1

2шт.

17

100153A1

SPACER

ball bearings

1шт.

18

100151A1

PINION

GEAR forward clutch

1шт.

19

129671A1

ROLLER BEARING

tapered roller, outer, includes cup, Replaces: 100158A1

1шт.

20

100159A1

SPACER

bearing

1шт.

21

110807A1

SLOTTED NUT

special, slotted

1шт.

22

100163A1

SEALING RING

SEALRING

1шт.

23

100164A1

RING, SNAP

RING SNAP bearing retaining

1шт.

24

100161A1

COVER

end, forward clutch

1шт.
