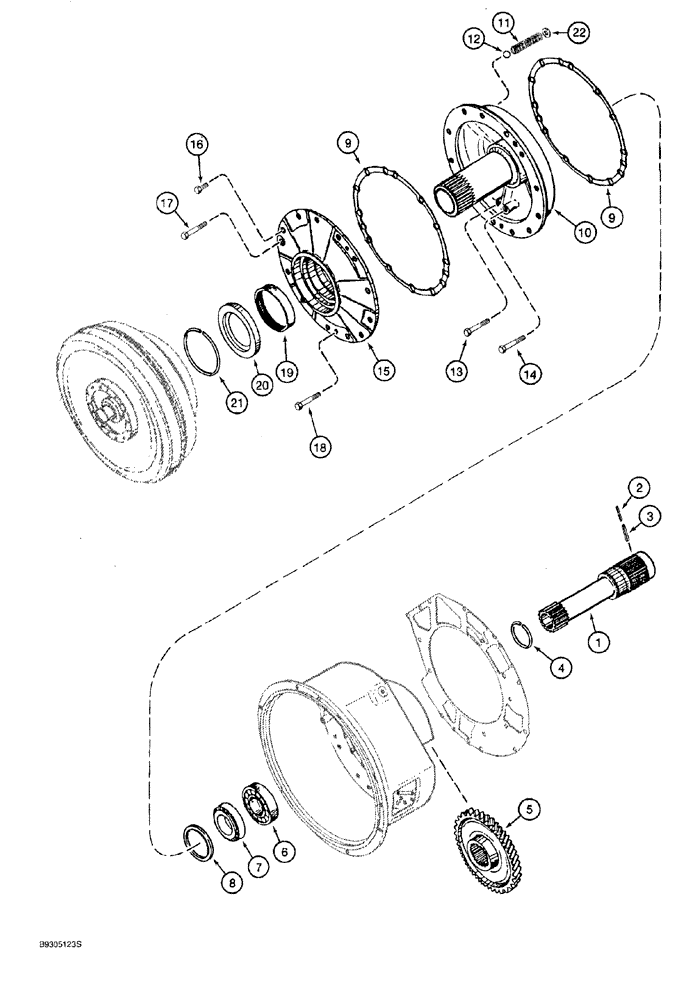

Запчасти Case 921 (6-012) - TRANSMISSION ASSEMBLY L129883, INPUT GEAR AND SHAFT (06) - POWER TRAIN

L129883

TRANSMISSION

ASSY., Includes: Ref. 1 - 22, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004, and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

1

S301828

SHAFT

input, pump

1шт.

2

E135026

PIN,1.5mm OD x 5mm L, Slotted

roll, 1.5 mm OD x 5 mm, Replaces: S301830

1шт.

3

E135028

PIN, SPLIT (COTTER)

PIN, COTTER roll, 2.5 mm OD x 5 mm, Replaces: S301829

1шт.

4

S301831

PISTON RING

input shaft

1шт.

5

S301832

PINION

GEAR input

1шт.

6

S301833

ROLLER BEARING,55.562 mm ID x 97.63 mm OD x 24.608 mm

roller, gear end

1шт.

7

S301834

ROLLER BEARING,55 mm ID x 90 mm OD x 23 mm

roller, oil feed flange end

1шт.

8

S301837

BLOCK

SHIM 2.15mm, if used

1шт.

8

S301838

BLOCK

SHIM 2.0 mm, if used

1шт.

8

S301842

BLOCK

SHIM 1.9 mm, if used

1шт.

8

S301844

BLOCK

SHIM 1.8 mm, if used

1шт.

8

S301846

BLOCK

SHIM 1.7 mm, if used

1шт.

8

S301850

BLOCK

SHIM 1.5 mm, if used

1шт.

8

S301852

BLOCK

SHIM 1.4 mm, if used

1шт.

8

S301856

BLOCK

SHIM 1.2 mm, if used

1шт.

8

S301858

BLOCK

SHIM 1.1 mm, if used

1шт.

8

S301859

BLOCK

SHIM 1.05 mm, if used

1шт.

8

S301860

BLOCK

SHIM 1.0 mm, if used

1шт.

8

S301861

BLOCK

SHIM .95 mm, if used

1шт.

8

S301862

BLOCK

SHIM .9 mm, if used

1шт.

8

S301863

BLOCK

SHIM .85 mm, if used

1шт.

9

127678A1

GASKET

oil feed flange, Replaces: S301865

2шт.

10

S301864

FLANGE ASSY

oil feed

1шт.

11

100111A1

SPRING

compression, ball check

1шт.

12

100110A1

BALL

check

1шт.

13

100098A1

BOLT

hex, special, 12 - 1.75 x 60 mm, class 10.9

1шт.

14

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

BOLT hex, 12 - 1.75 x 55 mm

1шт.

15

S301866

COVER

oil feed flange

1шт.

16

100096A1

SCREW

hex, special, 10 - 1.5 x 35 mm

12шт.

17

826-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

BOLT hex, 12 - 1.75 x 70 mm, class 10.9, Replaces: 931648R1

1шт.

18

100097A1

BOLT

hex, special, 12 - 1.75 x 95 mm, class 10.9

1шт.

19

S301867

NEEDLE BEARING,Needle, 90mm ID x 100mm OD x 16mm W

needle

1шт.

20

S301868

SEAL

SEALRING shaft

1шт.

21

100100A1

CIRCLIP

retaining

1шт.

22

S300786

SHIM,20mm ID x 28mm OD x 1mm Thk

adjusting, 20 x 28 x 1 mm

1шт.
