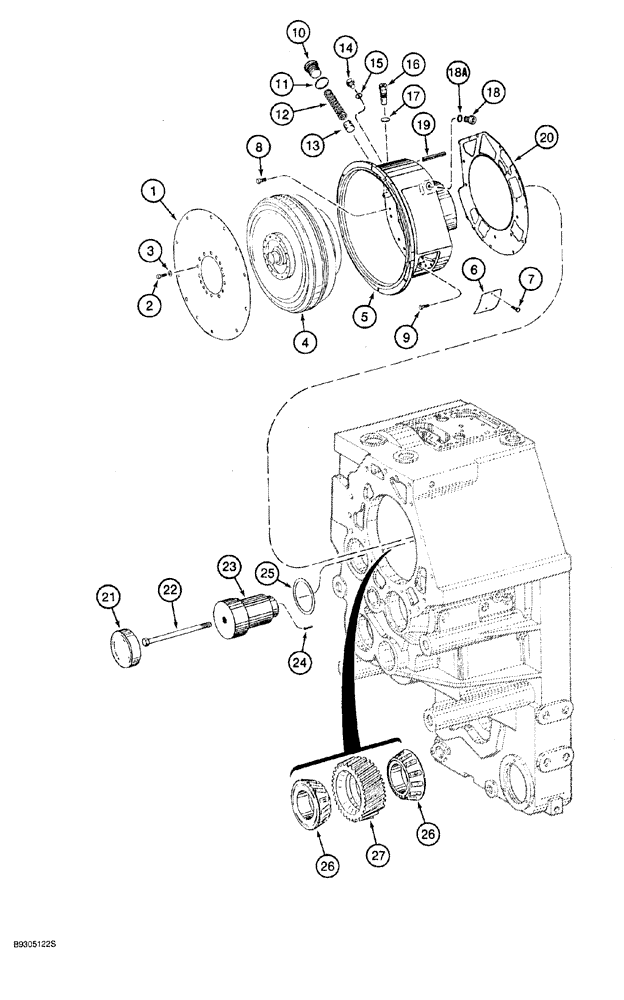

Запчасти Case 921 (6-010) - TRANSMISSION ASSEMBLY L129883, IDLER GEAR, CONVERTER AND COVER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L129883
TRANSMISSION
ASSY., Includes: Ref. 1 - 27, see Figures 6-008 - 6-028, 6-052 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022
1шт.
1
S301901
LARGE PLATE
PLATE, LARGE converter
3шт.
2
111981A1
BOLT
hex, special
16шт.
3
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
flat, 11 x 21 x 2 mm
16шт.
4
S301827
CONVERTER
transmission
1шт.
4
8605376R
REMAN-TORQUE CONVERT
ER Remanufactured
1шт.
4
8605376C
CORE-TORQUE CONVERTR
CORE-TORQUE CONVERTER Return Number
1шт.
5
S301835
HOUSING
converter
1шт.
6
S301826
LARGE PLATE
PLATE, LARGE converter
1шт.
7
S301491
STUD
grooved
2шт.
9
100099A1
BOLT
hex, special, 8 - 1.25 x 30 mm, class 10.9
4шт.
10
E135077
PLUG,Hex, M36 x 1.5
hex socket, special
1шт.
11
81168C1
O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro
plug
1шт.
12
100103A1
SPRING
compression
1шт.
13
100101A1
PISTON
converter housing
1шт.
14
100113A1
PLUG
hex, special, 10 x 1 mm
1шт.
15
100114A1
O-RING,8mm ID x 1.5mm Width
plug
1шт.
16
100112A1
ADAPTER
converter housing
1шт.
17
1968430C1
O-RING
adapter
1шт.
18
100087A1
PLUG
hex socket, special, 42 x 2 mm
4шт.
18a
A52096
O-RING,2.5mm Thk x 38mm ID
plug, Replaces: A52372
4шт.
19
100105A1
PIN
roll, cover
1шт.
20
S301836
GASKET
housing
1шт.
21
100130A1
COVER
stub axle
1шт.
22
100127A1
BOLT
hex, special, 10 - 1 5 x 120 mm
1шт.
23
100128A1
AXLE
Stub, idler gear
1шт.
24
100129A1
SLOTTED PIN
Roll, stub axle
1шт.
25
100117A1
BLOCK
SHIM 1.0 mm, if used
1шт.
25
100118A1
BLOCK
SHIM 1.2 mm, if used
1шт.
25
100120A1
BLOCK
SHIM 2.0 mm, if used
1шт.
25
100121A1
BLOCK
SHIM 2.8 mm, if used
1шт.
25
100126A1
BLOCK
SHIM 3.3 mm, if used
1шт.
26
100116A1
ROLLER BEARING,60mm ID x 95mm OD x 23mm
tapered roller, use with Ref. 27
2шт.
27
100115A1
PINION
GEAR reverse idler, internal bearing cups, use with Ref. 26
1шт.
Выбрано товаров: 35
