Запчасти Case 921 (6-006) - TRANSMISSION MOUNTING (06) - POWER TRAIN

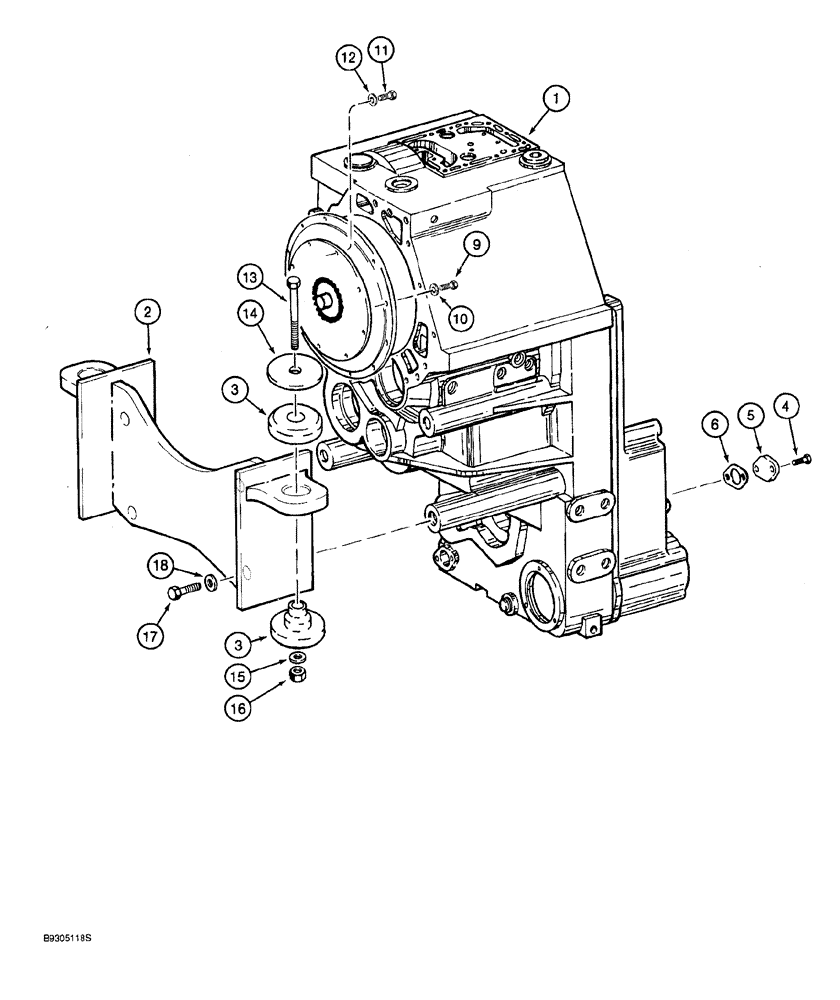

Схема запчастей Case 921 - (6-006) - TRANSMISSION MOUNTING (06) - POWER TRAIN
9
15
17
14
16
1
12
18
2
10
11
3
5
3
13
4
6

Артикул

Название

Примечание

Количество

1

L129883

TRANSMISSION

ASSY., see Figures 6-008 - 6-028, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Serial Range: -JAK0026022

1шт.

1

114363A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

1

114363A1C

CORE-TRANSMISSION

Return Number , Start Serial: JAK0026022

1шт.

2

L129190

SUPPORT

BRACKET transmission mounting, no longer available, order 114362A1 and (2) 114359A1, Serial Range: -JAK0026022

1шт.

3

L129146

HITCH DAMPER

MOUNT transmission, two-piece, Serial Range: -JAK0026022

2шт.

1

114363A1

TRANSMISSION

ASSY., new, see Figures 6-030 - 6-058, 7-002, and Ref. 4, Figure 6-004 and Ref. 14 - 16, Figure 6-006, Start Serial: JAK0026022

1шт.

2

114362A1

SUPPORT

BRACKET transmission mounting, Start Serial: JAK0026022

1шт.

3

114359A1

MOUNT

MOUNT transmission, two-piece, Start Serial: JAK0026022

2шт.

4

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT hex, 8 - 1.25 x 16 mm, included with transmission

2шт.

5

S300508

COVER

PLATE included with transmission

1шт.

6

S300507

GASKET

included with transmission

1шт.

7

S301911

SEAL KIT

seal, not shown, includes all seals and flat gaskets for L129883 or 114363A1 transmission, complete listing of kit component is not available at time of catalog printing

1шт.

8

S301915

GASKET

not shown, includes all flat gaskets for L129883 or 114363A1 transmission, complete listing of kit components not available at time of catalog printing

1шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

12шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

11

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

12шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

13

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

BOLT hex, 1 NC x 6 inch

2шт.

14

L129147

WASHER

flat, special, transmission mounting

2шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

2шт.

16

425-1016

NUT,1"-8, G5

Hex

2шт.

17

828-30080

BOLT,Hex, M30 x 3.5 x 80mm, Class 10.9

hex, 30 - 3.5 x 80 mm, class 10.9

4шт.

18

396-31119

WASHER,1 1/4" x 2 1/4" x 1/4", HDN

flat, hardened, 1-1/4 x 2-1/4 x 1/4 inch

4шт.

Выбрано товаров: 23
