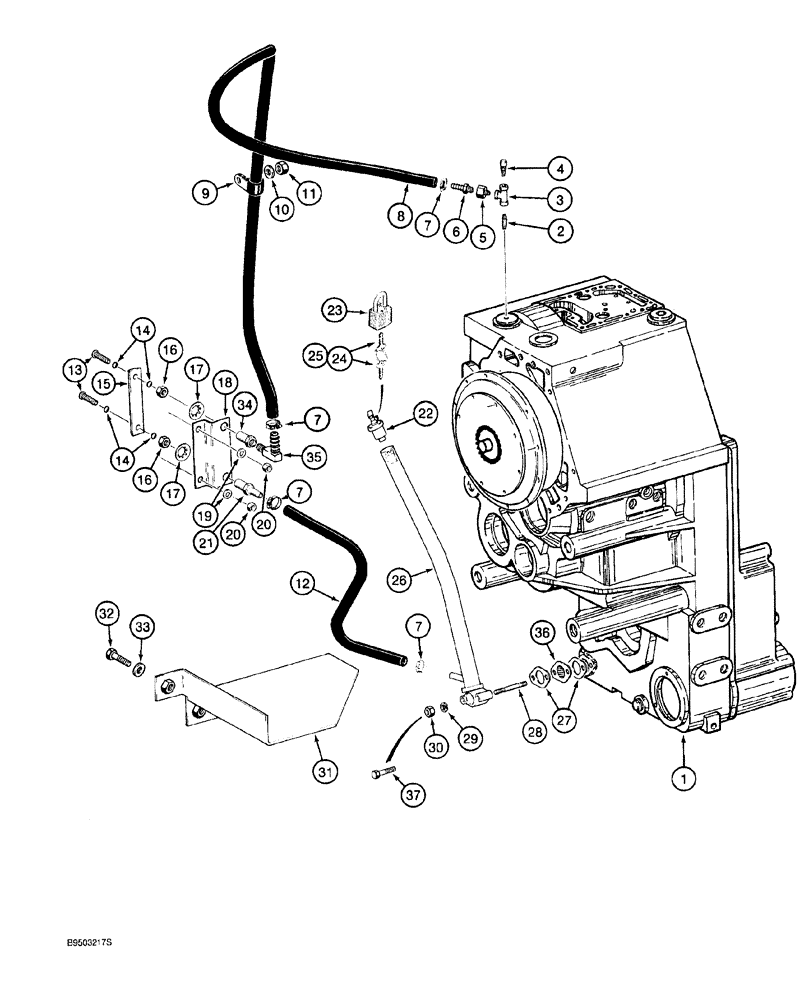

Запчасти Case 921 (6-004) - TRANSMISSION FILL TUBE MOUNTING AND SIGHT GAUGE (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSY., see Figure 6-006

1шт.

2

221-103

FITTING

NIPPLE straight, 1/8 PT x 1 inch

1шт.

3

217-1160

TEE,1/8"-27 Female

pipe, 1/8 inch female

1шт.

4

N14704

BREATHER

included with transmission

1шт.

5

217-1010

ADAPTER,1/8" - 27 Male NPTF x 1/2" - 14 Female NPTF

ADAPTER straight, 1/8 PT x 1/2 inch female PT

1шт.

6

846915

INSERT

ADAPTER straight, special

1шт.

7

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

8

L128676

RADIATOR HOSE,12.70 mm ID x 1150.00, SAE 30R2 Type I

Sight gauge, Upper

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

11

231-1446

NUT,3/8" - 16, Gr 5

1шт.

12

L71252

HOSE,12.7 mm ID x 508.00 mm, SAE 30R2 Type I

1/2 (13) ID x 20 inch (508 mm) long, sight gauge, lower

1шт.

L116247

GAUGE

ASSY., sight, Includes: Ref. 13 - 16

1шт.

13

N13213

BOLT

BOLT special, sight gauge

2шт.

14

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge

4шт.

15

NSS

NOT SOLD SEPARAT

GAUGE sight, order L116247 sight gauge assy.

1шт.

16

829-1412

NUT,M12, Cl 10.9

2шт.

17

131-141

PUSH-ON NUT,.74", Push-on

2шт.

18

L129629

SUPPORT

BRACKET mounting, sight gauge

1шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

20

231-1446

NUT,3/8" - 16, Gr 5

2шт.

21

L125836

FITTING

ADAPTER straight, special, lower

1шт.

22

L126498

PLUG

CAP fill tube

1шт.

23

D93753

PADLOCK

includes keys, if used, Includes: Ref. 24, 25

1шт.

24

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

25

R29555

KEY

for Master padlock only, if used

2шт.

26

L130003

TUBE,583, 110 mm L

fill, transmission

1шт.

27

S300507

GASKET

fill tube

2шт.

28

L128820

STUD

special, fill tube mounting at transmission, used with Ref. 29, 30, if used

2шт.

29

892-11008

LOCK WASHER,8mm ID

Used with Ref. 2

2шт.

30

825-1408

NUT,M8, Cl 8

Used with Ref. 28

2шт.

31

L130005

GUARD ASSY.

transmission fill tube

1шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

33

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

3шт.

34

L129630

ADAPTER

straight, special, upper

1шт.

35

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

36

E135229

FILTER SCREEN

fill tube

1шт.

37

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

If used

2шт.
