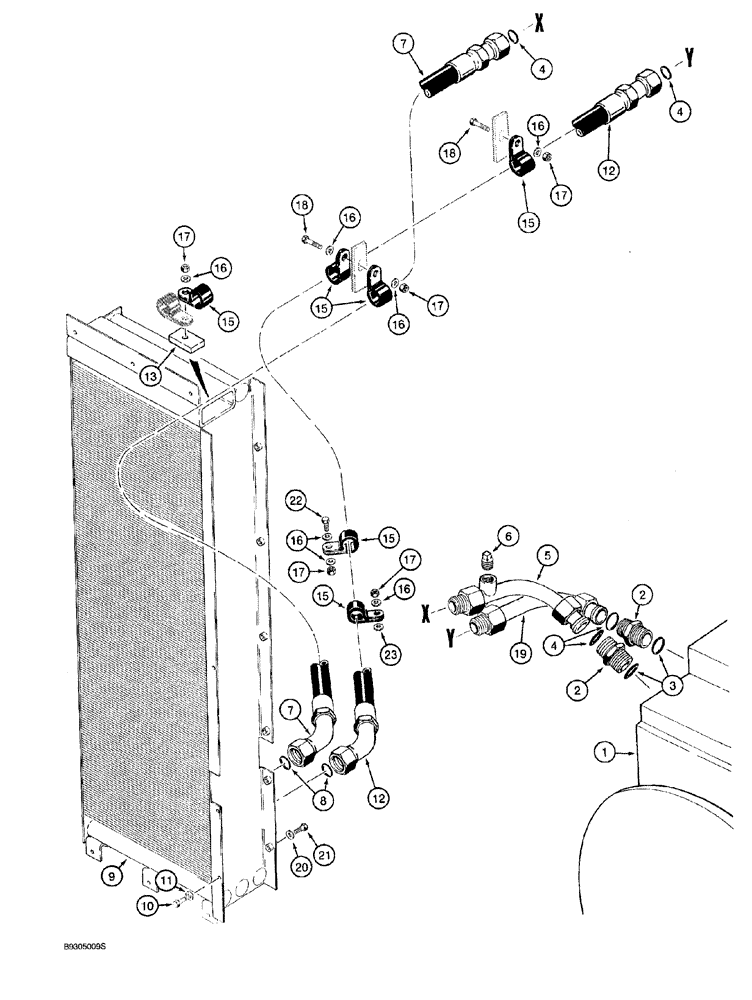

Запчасти Case 921 (6-002) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY see Figure 6-006

1шт.

2

L128604

ADAPTER

straight, special, Includes: Ref. 3, 3A

2шт.

3

S302119

O-RING,37.7mm ID x 3.5mm Width

adapter

2шт.

3a

S302118

WASHER

RING backup, adapter, not shown

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

5

L128822

TUBE,31.75 mm OD x 175, 147 mm L

transmission supply

1шт.

6

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

7

L129092

HOSE ASSY.

84 inch (2133 mm) long, cooler, to transmission supply tube

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

9

L129695

OIL COOLER

transmission and hydraulic oil

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

11

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

9шт.

12

L129093

HOSE ASSY.

96 inch (2438 mm) long, return, Serial Range: tube,-cooler

1шт.

13

L128859

SPACER

clamp

1шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

15

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type

6шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

17

231-1446

NUT,3/8" - 16, Gr 5

5шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

L128806

TUBE,31.75 mm OD x 173, 115 mm L

transmission return

1шт.

20

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

flat, hardened, 11/32 x 1 x 3/32 inch

6шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.
