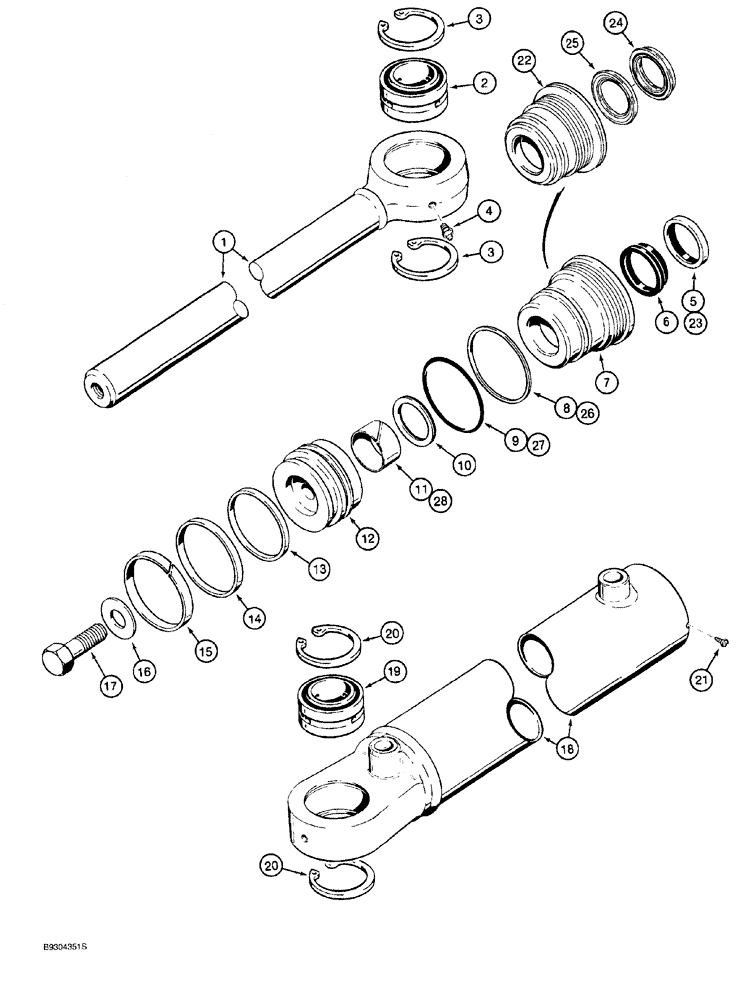

Запчасти Case 921 (5-016) - STEERING CYLINDER (05) - STEERING

1346169C4

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 516.6mm Stroke

stroke steering, 4 (102) ID x 20-3/8 inch (517 mm), see Figure 5-10, Includes: Ref. 1 - 28

2шт.

1

1346168C3

PISTON ROD

ASSY., 2 inch (51 mm) diameter, Includes: Ref. 2, 3

1шт.

2

1346233C1

SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 76.2mm W

self-aligning

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

Bushing

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1346268C1

GLAND

ASSY., cylinder, if used, no longer available, order 1346267C1

1шт.

1346267C1

GLAND

ASSY., cylinder, if used, Replaces: 1346268C1, Includes: Ref. 5 - 11, outside diameter of gland does not have a groove, no longer available, order Ref. 22 - 28

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper piston rod, outer

1шт.

Part of kit P/N G110054

1шт.

6

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-cup, piston rod

1шт.

Part of kit P/N G110054

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND cylinder, uses Ref. 6, 10

1шт.

8

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of kit P/N G110054

1шт.

9

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8 inch wide

1шт.

Part of kit P/N G110054

1шт.

10

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

buffer

1шт.

Part of kit P/N G110054

1шт.

11

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

Part of kit P/N G110054

1шт.

12

1346216C1

PISTON

cylinder

1шт.

13

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup

1шт.

Part of kit P/N G110054

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

piston

1шт.

Part of kit P/N G110054

1шт.

15

G100448

RING,101.6mm OD, Ext

wear

1шт.

Part of kit P/N G110054

1шт.

16

G32351

WASHER

flat, hardened, special

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

1шт.

18

1346166C3

HYD CYL SLEEVE

TUBE ASSY., Includes: Ref. 19, 20

1шт.

19

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

self-aligning

1шт.

20

100-21315

SNAP RING,3.156", Int, #315

Bushing

2шт.

21

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY., cylinder, if used, Includes: Ref. 22 - 28, grove in outside diameter of gland, order components

1шт.

22

1346269C1

CYLINDER END CAP

GLAND, uses Ref. 24, 25

1шт.

23

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper piston rod, outer

1шт.

1542876C1

SEAL KIT,50.8mm Rod

NSS Order 1543269C1, Incl Ref 24, 25

1шт.

24

1543001C1

SEAL

SEAL rod, NSS, order 1543269C1

1шт.

25

1543000C1

SEAL

SEAL buffer, NSS, order 1543269C1

1шт.

26

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

Gland O-Ring

1шт.

27

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8 inch wide

1шт.

28

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

center

1шт.

G110054

KIT

seal, Includes: Ref. 5, 6, 8 - 11, 13 - 15, used with 1346267C1 or 1346268C1 gland assy.

1шт.

1543269C1

SEAL KIT

seal, Includes: Ref. 13 - 15, 23 - 28 and instruction sheet, used with 1346269C1 gland

1шт.
