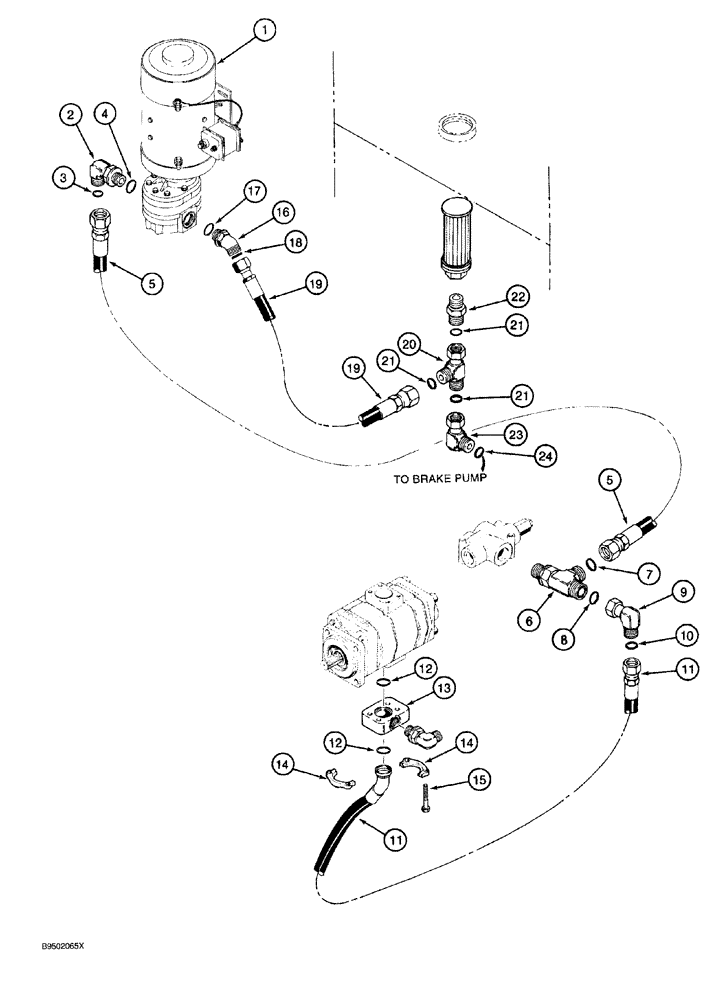

Запчасти Case 921 (5-013A) - AUXILIARY STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

107627A1

PUMP, HYDRAULIC

AND MOTOR ASSY., auxiliary steering, see Figure 5-013C

1шт.

2

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

90°, 1-3/16-12 face seal x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face seal end

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss end

1шт.

5

141161A1

HOSE ASSY.

64-3/16 inch (1630 mm) long, pressure

1шт.

6

L128896

TEE

adjustable, special, at steering priority valve

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

9

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

90°, 1-11/16-12 inch face seal x swivel face, Includes: Ref. 10

1шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

L129261

HOSE ASSY.

45-5/16 inch (1150 mm) long, priority valve to hydraulic pump

1шт.

12

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

2шт.

13

L129026

VALVE

check, see Figure 5-004 for hydraulic pump, adapter and quick disconnect and Figures 8-074 or 8-078 for continuation of circuit to accumulator and pressure switch

1шт.

14

A14157

FLANGE

CLAMP split flange

2шт.

15

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

4шт.

16

201-371

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

45°, 1-7/16-12 face seal x 1-5/8-12 inch adj O-ring boss, Includes: Ref. 17, 18

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face seal end

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

19

129940A1

HOSE ASSY.

18-5/16 inch (465 mm) long, auxiliary steering pump to brake pump

1шт.

20

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1-7/16-12 inch face branch x face x swivel face, at hydraulic reservoir filter, Includes: Ref. 21

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

22

127811A1

FITTING

ADAPTER special, Serial Range: tee-filter

1шт.

23

201-368

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1-7/16" - 12 Female ORFS

90°, 1-14 face seal x 1-7/16-12 inch swivel face seal, see Figure 7-008 for continuation of circuit to brake pump, Includes: Ref. 24

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
