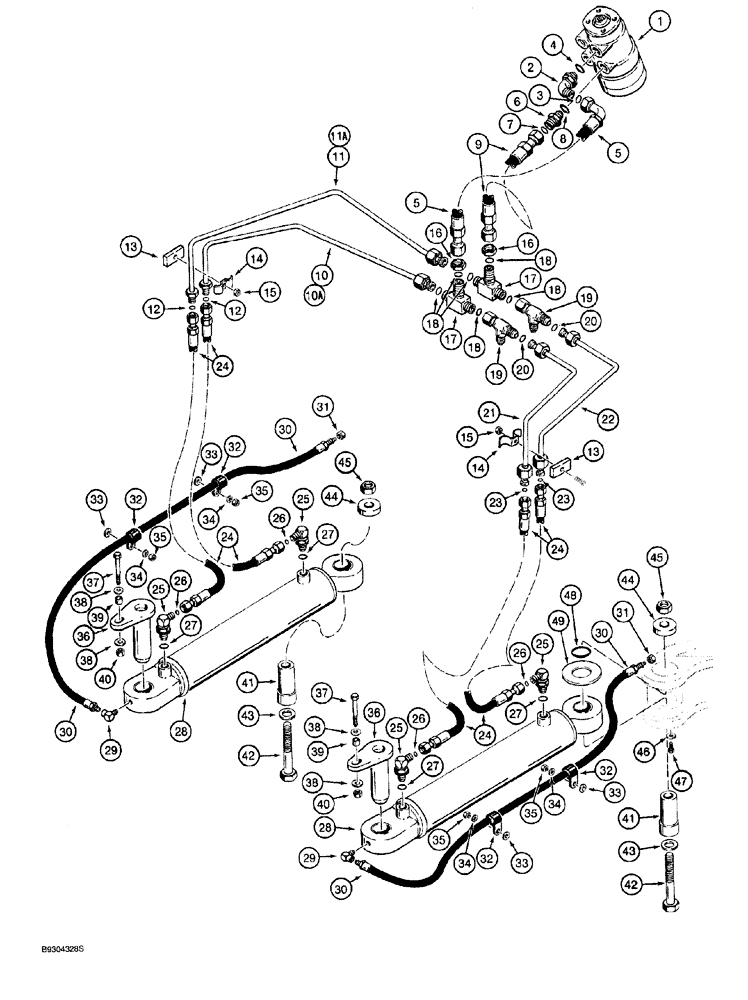

Запчасти Case 921 (5-010) - STEERING HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (05) - STEERING

1

L128073

VALVE

ASSY., steering control, see Figure 5-008, see Figure 5-002 for mounting

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

90°, 1-3/16-12 face seal x 1-1/6-12 inch adj O-ring boss, Includes: Ref. 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

5

L128451

HOSE ASSY.

27-9/16 inch (700 mm) long, elbow at, Serial Range: valve-tee

1шт.

6

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 7, 8

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

9

L128450

HOSE ASSY.

26-3/8 inch (670 mm) long, adapter at, Serial Range: valve-tee

1шт.

10

L128329

TUBE,15.87 mm OD

tee to left hand cylinder, rod end, Serial Range: -JAK0026022

1шт.

10

L130009

TUBE,15.87 mm OD

tee to left hand cylinder, rod end, Start Serial: JAK0026022

1шт.

11

L128327

TUBE,15.87 mm OD

tee to left hand cylinder, closed end, Serial Range: -JAK0026022

1шт.

11

L130007

TUBE,15.87 mm OD

tee to left hand cylinder, closed end, Start Serial: JAK0026022

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

L119350

SPACER

tubes

2шт.

14

S45067

CLAMP

tube

2шт.

15

231-1446

NUT,3/8" - 16, Gr 5

2шт.

16

218-1249

BHD LOCK NUT,1-3/16" - 12

Hex

2шт.

17

L128344

TEE

special

2шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

19

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

1-3/16-12 inch face seal branch x face seal x swivel face seal, Includes: Ref. 20

2шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

21

L130057

TUBE,15.87 mm OD

steering, left hand, tee to crossover valve

1шт.

22

L130055

TUBE,15.87 mm OD

steering, right hand, tee to crossover valve

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

2шт.

24

L128453

HOSE ASSY.

20-11/16 inch (525 mm) long, crossover valve and, Serial Range: tubes-cylinders

4шт.

25

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

ELBOW, 90°, 13/16-16 face seal x 7/8-14 inch adj O-ring boss, Includes: Ref. 26, 27

4шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

28

1346169C4

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 516.6mm Stroke

4 (102) ID x 20-3/8 inch (517 mm) stroke, see Figure 5-016

2шт.

29

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street

2шт.

30

L54694

HOSE,4.8mm ID x 1041mm L

41 inch (1041 mm) long, lubrication, cylinder

2шт.

31

F53473

LOCK NUT,1/8-27 NPSM

special, lubrication hose

2шт.

32

49832

CLAMP

P-type, 5/16 inch ID, lubrication hose, clamps are rotated 180° on some models

4шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

34

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

35

231-1446

NUT,3/8" - 16, Gr 5

4шт.

36

L129129

PIN,50.76mm OD x 172mm L

PIN cylinder retaining, closed end, Tear Drop Head

2шт.

37

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

38

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

39

L128157

SPACER,12.95mm ID x 19.05mm OD x 16mm L

cylinder pin, closed end

2шт.

40

425-108

NUT,1/2" - 13, Gr 5

2шт.

41

L130039

PIN,63.53mm OD x 151.4mm L

cylinder retaining, rod end

2шт.

42

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

BOLT hex, 1 NC x 8 inch

2шт.

43

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

2шт.

44

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

flat, special

2шт.

45

425-1016

NUT,1"-8, G5

Hex

2шт.

46

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

47

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

48

108115A1

SEALING RING,62.865mm ID x 5.334mm Width

SEAL steering cylinder rod

2шт.

49

102594A1

SPACER

steering cylinder rod

2шт.
